Product Introduction

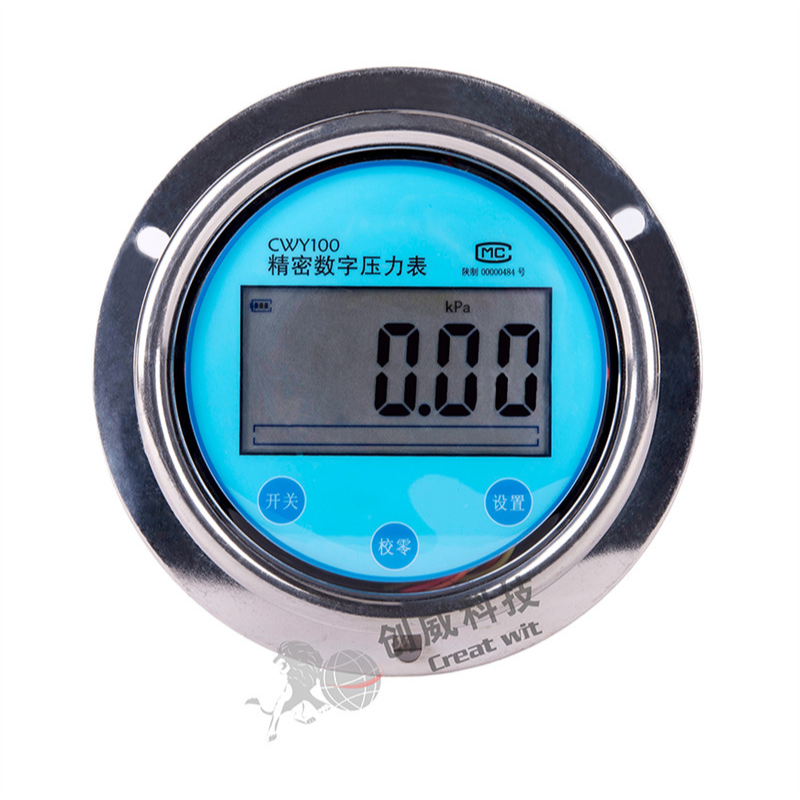

The CWY Axial Precision Digital Pressure Gauge is a high-precision intelligent pressure measuring instrument developed and manufactured by Shaanxi Chuangwei according to industry standards. The CWY series digital pressure gauges are mainly composed of pressure sensors and signal processing circuits, utilizing imported pressure sensors with superior performance, featuring high accuracy, corrosion resistance, shock resistance, vibration resistance, low temperature drift, and high stability. The signal processing circuit is composed of ultra-low power consumption processors, signal processing chips, and power management chips. It is powered by a high-capacity, high-performance lithium battery, eliminating the need for external power supply. The instrument boasts an exquisite, compact, and aesthetically pleasing design, with simple operation.
Product Features
Touch-sensitive buttons, with no mechanical contacts, effectively address the issues of lifespan and sealing.
Wide temperature compensation.
Fully equipped with unit conversion and peak-valley retention features.
Fully-featured with customizable settings to suit your specific usage environment and preferences, offering flexibility.
Battery is replaceable.
Up to ten pressure units available (optional): mmH2O, mmHg, psi, kPa, MPa, Pa, mbar, bar
◆ Features include display of online pressure dynamic change curves, peak value recording (optional);
◆ Various additional features, including RS485 interface output, 4-20mA output, real-time data communication output via USB interface, and storage function.
Technical Specifications
◆ Model
CWY
◆ Measurement Range
（-100～0）kPa、（0～2）kPa、（0～5）kPa、（0～10）kPa、（0～20）kPa、（0～25）kPa、（0～40）kPa、（0～60）kPa、（0～100）kPa、（0～160）kPa、（0～250）kPa、（0～400）kPa、（0～600）kPa、（0～1）MPa、（0～1.6）MPa、（0～2）MPa、（0～2.5）MPa、（0～4）MPa、（0～6）MPa、（0～10）MPa、（0～16）MPa、（0～20）MPa、（0～25）MPa、（0～30）MPa、（0～40）MPa、（0～60）MPa、（0～80）MPa、（0～100）MPa、（0～160）MPa、（0-250）MPa
Mechanical Characteristics

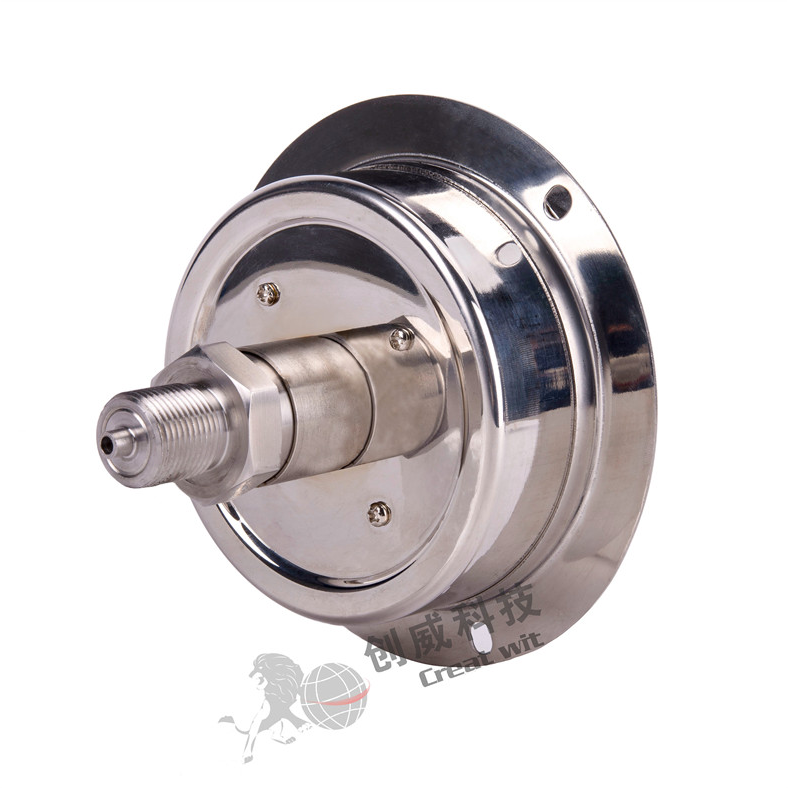

Process Interface: M20×1.5 (external thread), special threaded interfaces require customization
Dimensions: Height 170mm, Width 110mm, Thickness 50mm
Weight: 600g
