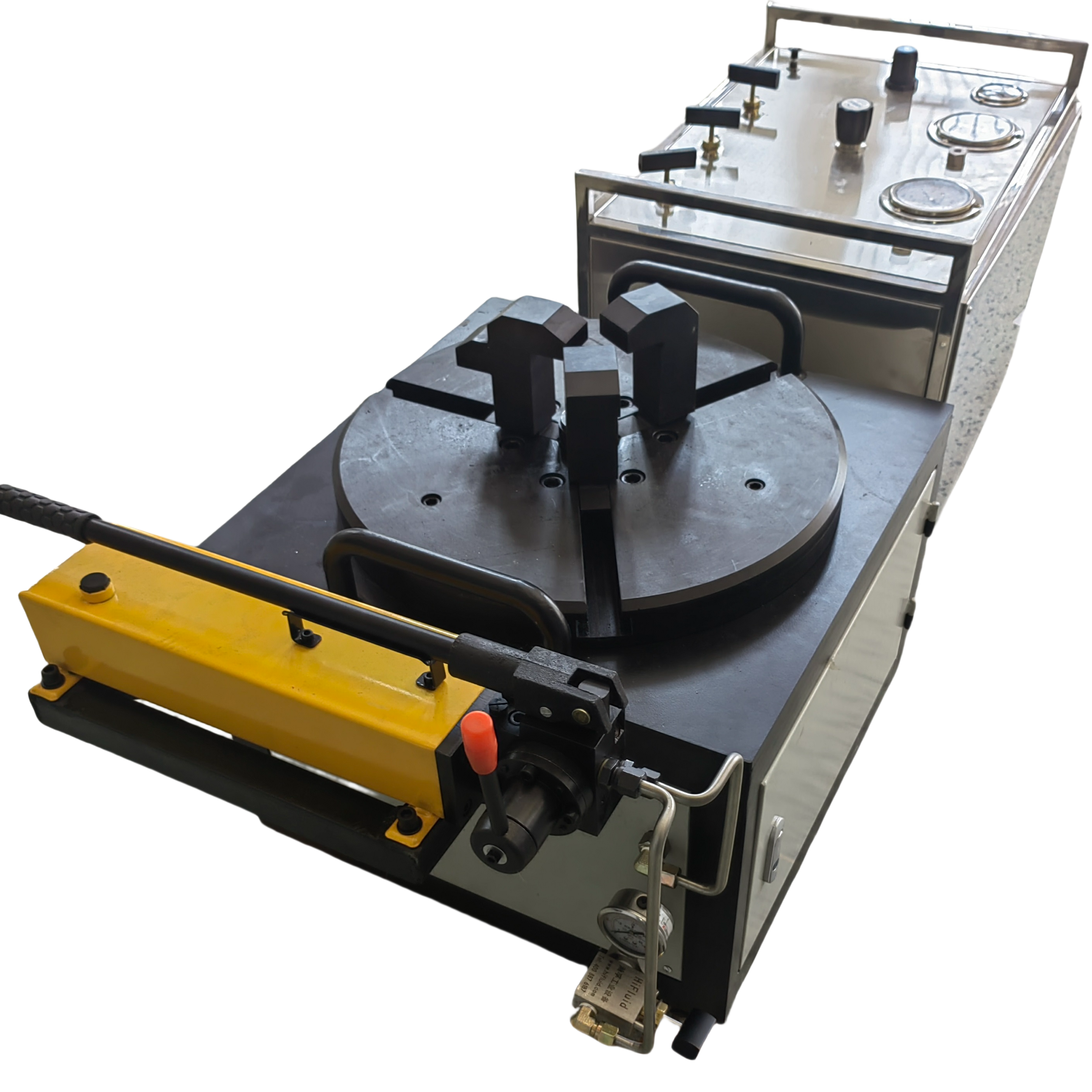

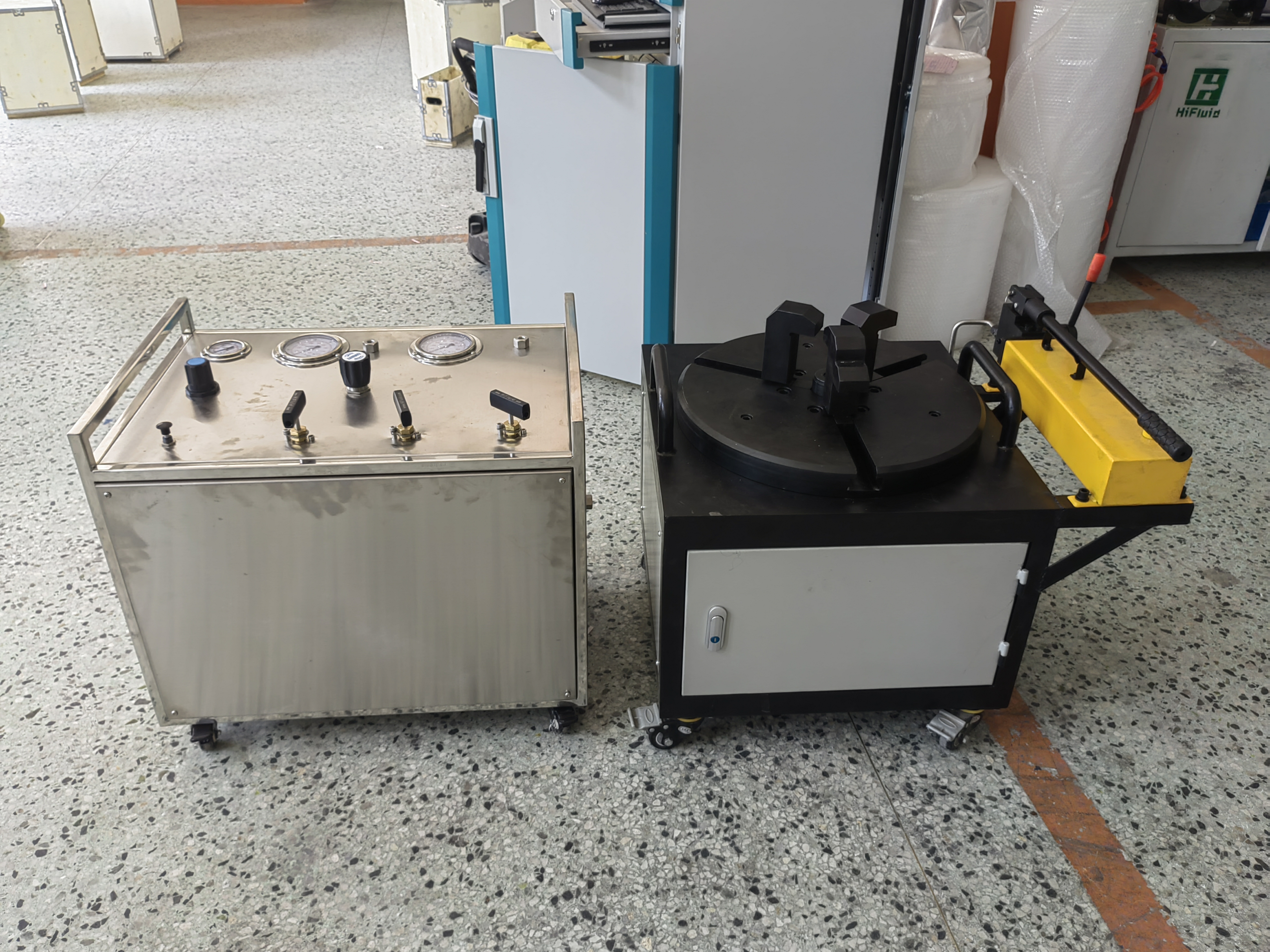

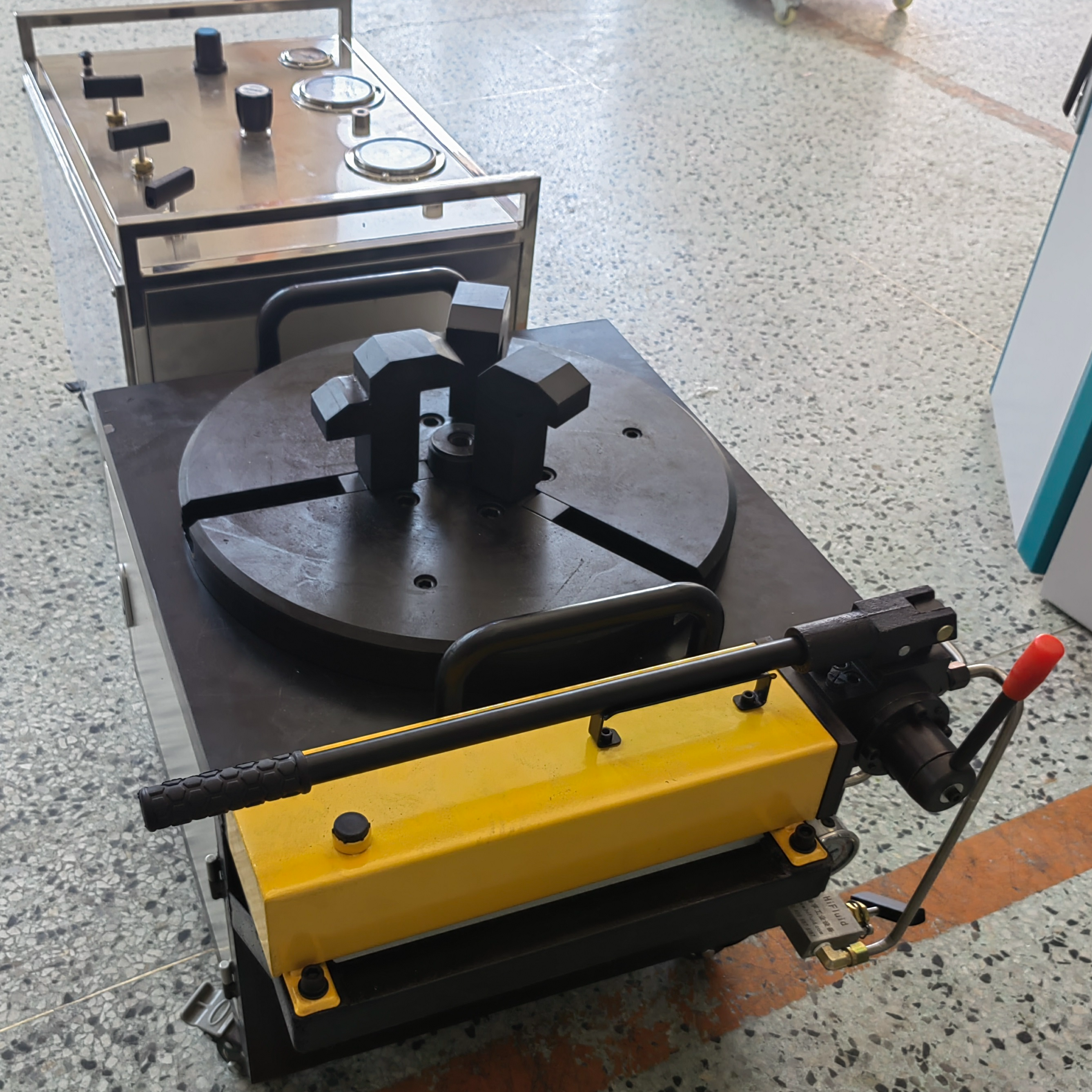

Portable Safety Valve Calibration Bench
I. Features
Portable safety valve comprehensive calibration bench, utilizing high-pressure air or nitrogen as the medium, to test the sealing performance and lift pressure of various safety valves, assessing their pressure safety capabilities.
Section II: Typical Applications
Performance testing for DN15～200mm flanged safety valves, threaded safety valves, full-open/micro-open safety valves, standard thick/thin flanged safety valves, domestic/imported safety valves, spring direct-loading safety valves, safety valves with power-assisted function, and safety valves with supplementary load.
Equipment meets national standards and is suitable for performance testing and regular inspections of safety valves by quality supervision authorities, boiler inspection institutions, safety valve manufacturers, and users of safety valves.
III. Technical Specifications
Host Technical Specifications
- Pressure Range: 0-32 MPa (optional: 0-10 MPa, 0-20 MPa, 0-30 MPa, 0-40 MPa)
- Test Medium: Air or Nitrogen
- Control Method: Manual Control
- Test Pressure Output: 1 channel
- Test Valve Bore: DN 15-150mm
- Pressure Control Accuracy: ≤±1% F.S.
- Pressure Measurement Accuracy: 0.4 Class Pressure Gauge (optional for higher pressure grades)
- Pressure Gauge Measurement Range (dual gauge verification): 0-25 MPa, two pieces (selectable as per requirement)
- Clamping Method: Hydraulic cylinder clamping
- Clamping force output range: 0-20 tons
- Sealing Method: O-ring/Threaded Seal
- Drive Gas Source: 5-8 bar, Max Gas Consumption: 0.8 cubic meters per minute
- Compressed Air Quality Requirements: Filtration Accuracy: 15μm; Normal Pressure Dew Point: 3℃; Oil Content (PPM): ≤5.0
