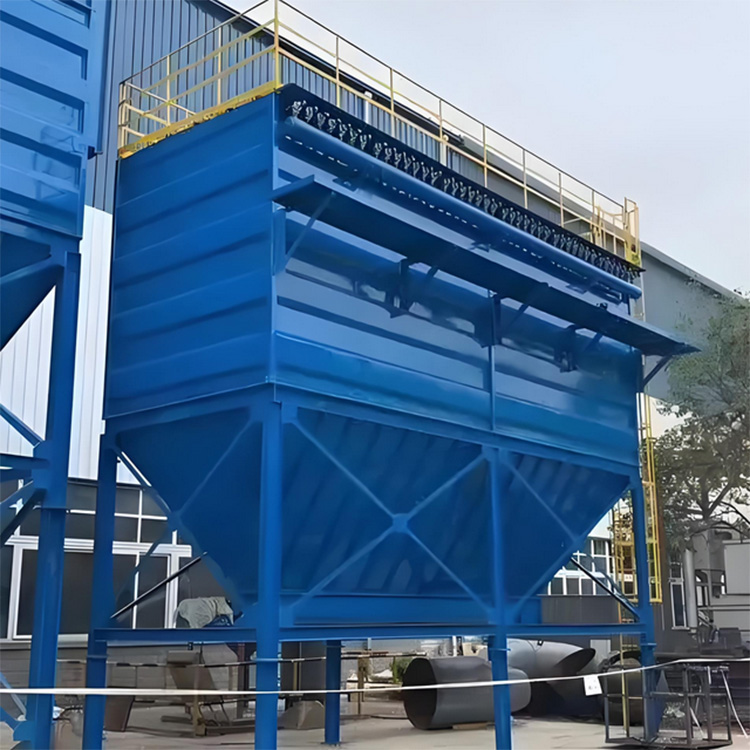

Butuo City Quanwu Environmental Protection Machinery Co., Ltd. offers DMC in stock year-round.Pulse Jet Bag Dust CollectorHigh cost-performance, stable and reliable work efficiency, easy for daily maintenance and upkeep, with a long service life; it has been favored by users. This product boasts excellent dust removal efficiency and energy-saving effects, suitable for various working conditions. Next, let's explore more about its relevant information together.
I. Features:
DMCPulse Jet Dust CollectorAn early type of small dust collector. It features the elimination of the complex mechanical controller and unreliable control valve from the original mechanical pulse bag dust collector, opting instead for direct control of the pulse valve by an electric control cabinet. It boasts simple structure, stable and reliable operation, and easy maintenance. Widely applicable in dust collection systems of industries such as grain processing, building materials, metallurgy, chemical, pharmaceutical manufacturing, and mechanical manufacturing.
II. Structure:
The body consists of a framework shell, filter bag assembly, jet-blowing cleaning device, dust discharge device, and other components.
The housing consists of the upper housing, middle housing, ash hopper, and inlets and outlets.
The filter bag assembly is composed of the filter bag and frame, etc.
The jet cleaning device consists of a gas bag, jet lance, venturi tube, pulse valve, and pulse controller.
The dedusting unit is composed of a motor, reducer, spiral conveyor, and star discharge valve.
III. Working Principle:
Dust-laden gas enters the ash hopper through the intake or through the open filter bag opening. The dust-laden gas passes through the filter bags to become clean air, which then enters the clean air chamber. It is then discharged through the clean air chamber outlet and exhausted by the fan. Dust accumulates on the outer surface of the filter bags and continuously increases, causing resistance to rise. To ensure the equipment's resistance does not exceed 1200 PA,DMC Pulse Jet Bag FilterTo maintain operation, regular dust cleaning is required. Dust cleaning is achieved by the program controller sequentially activating the solenoid valves, causing compressed air (0.5-0.7 MPa) inside the package to be ejected through the nozzle holes (primary air). This air is then induced to draw in several times the volume of surrounding air (secondary air) into the filter bag, causing it to急剧 expand instantly. The reverse action of the airflow also causes dust to be shaken off, thereby achieving the dust cleaning purpose.
DMC Pulse Jet Bag FilterIt's a highly satisfactory _equipment, with its applicability well-acknowledged; it operates 24/7, noise-free, and is safe to use, featuring a simple structure. Our company also offers the PPC pulse bag dust collector, reverse-jet bag dust collector, assembled bag dust collector, rotary umbrella high-voltage electrostatic precipitator, wet electrostatic precipitator, and CDG series high-voltage electrostatic precipitator for customer selection.
