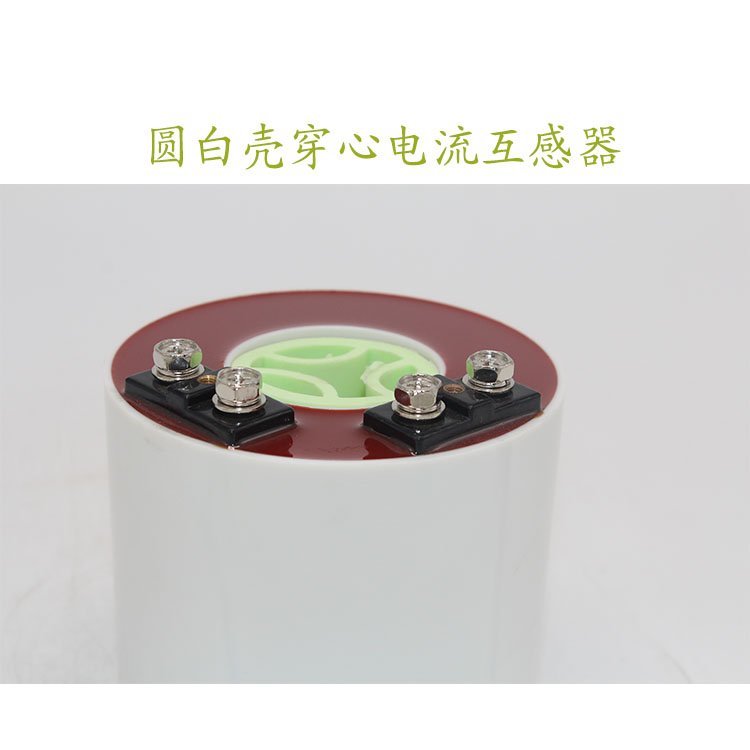

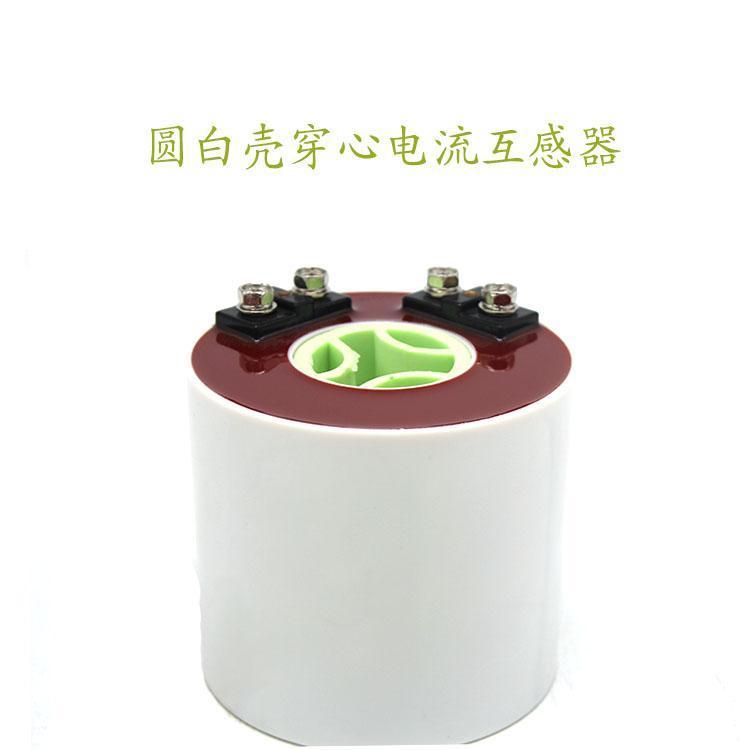

LC4-10 Core Current Transformer, with a pure white housing but a height of 100mm, increasing with height. This model can be customized to a dual-winding current transformer to suit customer requirements. Additionally, it combines measurement and protection into one transformer, offering the convenience of easy installation for a wide range of users.
LC4-10 Core Current Transformer, with a pure white housing but a height of 100mm, increasing with height. This model can be customized into a dual-winding current transformer according to customer requirements. It also integrates measurement and protection into a single transformer, offering the convenience of installation for a wide range of users.
The LC-10 high-precision current transformer is suitable for measuring and protecting current, electrical energy, and supply equipment in AC power systems with 35kV and below 10kV cable lines. This current transformer boasts features such as a small size, light weight, and easy installation, and has been widely used in series compact all-insulated ring main switch cabinets like SafeRing/SafePlus, RM6/SM6, SVS, GA/GE, FB, SS, and FTR.
This type of current transformer utilizes a new magnetic core material for the measuring winding, featuring high magnetic permeability, lower saturation magnetic induction intensity, and excellent stability, ensuring high measurement accuracy and a lower instrument security coefficient. High-quality imported silicon steel sheets, processed through advanced technology, serve as the core for the protective winding, guaranteeing a higher accuracy limit coefficient.
The toroidal core and secondary winding are vacuum impregnated with high-quality epoxy resin in a flame-retardant plastic shell, providing moisture resistance, stable performance, and no need for maintenance. This type of current transformer is compact, lightweight, and occupies minimal space. It can be mounted in the cable room of a ring main switch cabinet, requiring only the cable to pass through the inner hole for installation, which is simple and quick, and aesthetically pleasing. (Note: Customized series of current transformers with different specifications and parameters can be made according to customer requirements.)
