Product Features:
LK6-10 Open Type Current Transformer, with a height of 50mm. This model basically meets the measurement or protection parameter requirements for high ratio current transformers. The LK-10 series open type current transformers are suitable for AC power systems up to 35kV and 10kV.

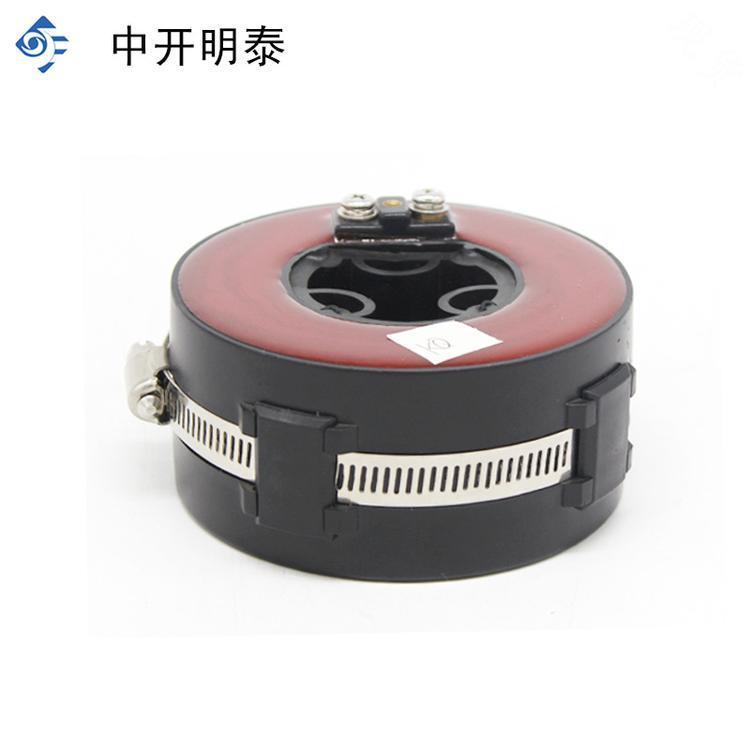

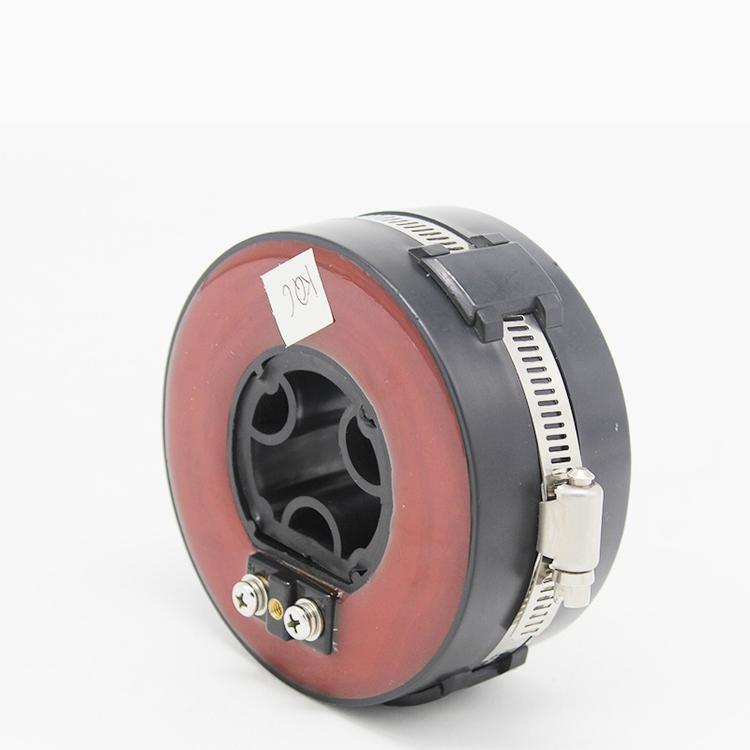

LK6-10 Open-Type Current Transformer
LK6-10 Open-type Current Transformer, this model has a height of 50mm. It basically meets the measurement or protection parameter requirements for high ratio transformers.
The LK-10 series open-type current transformers are suitable for current measurement, power extraction, and microcomputer protection in complete sets of equipment in AC power systems at 35kV and 10kV or below. These transformers feature a small size, light weight, removable design, and ease of installation, making them widely used in compact fully insulated ring main switch cabinets. They are installed directly onto the pre-connected incoming and outgoing cables, offering a simple and quick setup. They are extensively applied in compact fully insulated ring main switch cabinets such as ABB-SafeRing/SafePlus, Schneider RM6/SM6, Eaton SVS, German GA/GE, French FB, South Korean SS, and are also used in modular substation and cable junction boxes.
This current transformer model uses high-permeability imported silicon steel sheets as the magnetic guiding material, featuring a separable core and low magnetic circuit losses. Its semi-circular core and secondary winding are vacuum impregnated with high-quality epoxy resin within a flame-retardant plastic shell, offering moisture resistance, stable performance, and no need for maintenance. During installation, simply place the two semi-circular cores in the phase-separated cables and secure them with a clamp, integrating seamlessly with the cables for a harmonious and aesthetically pleasing appearance. Suitable for 10kV and 35kV cables with cross-sectional areas of 35mm² to 400mm².
The series of current transformers is divided into several types based on different current ratios, accuracy grades, and rated loads, with specific parameters listed in the corresponding specifications table for each model. (Note: Customized series of current transformers with various specifications and parameters can be made upon customer request.)
