I. Product Overview

Cooling Samplers for Carbonated Water Sampling are used in power plants, steel smelting, chemical industry, textile, dyeing and printing, and boiler rooms for sampling and cooling water and steam. Product series include: Steam Sampling Coolers, Boiler Water Sampling Coolers, Feed Water Sampling Coolers, Condensate Sampling Coolers, and Drain Sampling Coolers.

The water and steam in boilers and thermal systems are generally at high temperatures, which are not conducive to sampling and measurement. Sampling coolers can cool the boiler water to (20-40°C) and convert steam to water while cooling it to (20-40°C), facilitating safe sampling by operators and achieving a cooling medium temperature below 30-40°C to meet the standards of the People's Republic of China's power industry DL/T 457-91, thereby satisfying sampling and analysis requirements.

II. Technical Requirements

1. The sample cooler's cooling water flow rate is between 500-700 mL/min, and the cooling medium temperature can be reduced below 30°C.

2. Sampling cooler cooling tubes are all made of stainless steel pipes; carbon steel pipes or copper pipes cannot be used to prevent the metal corrosion products from the cooling tubes from contaminating the samples.

3. The cooling tubes of the sampling cooler can be designed as a single coiled tube or a double coiled tube (designed according to medium parameters and installation space).

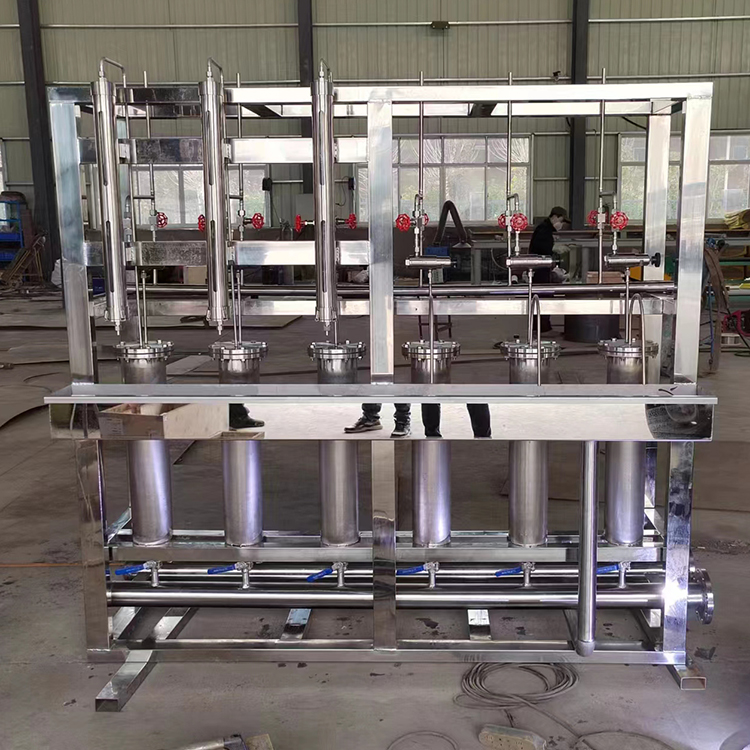

4. The Sampling Cooler is designed for sampling high-temperature liquids and gases, featuring a compact structure, high heat transfer efficiency, easy cleaning, and long service life. The sampling tube is constructed with a spiral serpentine coil design and made of stainless steel, offering high-temperature resistance, corrosion resistance, long service life, and non-contamination of the sample. Depending on the distribution and concentration of the sampling points, single-unit Sampling Coolers and modular Sampling Coolers are designed for simultaneous sampling of steam, boiler water, condensate, feed water, and deaerated water outlets.

Section 3: Product Order Instructions

1. Offering sampling media of temperatures, pressures, steam, water, and steam-water mixtures

2. Cooling medium temperature and pressure

3. Material requirements (typically, cooling tubes are made of stainless steel, and the housing is carbon steel)

4. Do you require a combination set (stand, sink, valves, etc.)?

5. Various进出口 connection methods (flanges, welding, etc.).

6. Common selections typically include: QYL-159/0.32, QYL-219/0.40, and QYL-273/0.54.

7. Custom design and manufacturing available upon customer request.
