Suction dredger

⑴Suction injectionStyleSediment extractionShip, also known asSuction-typeA dredging vessel designed according to the customer's site, it utilizesHigh-pressure waterProcess soil and sandstoneRobust erosion and cutting capabilities, toMudThe sand merges with water, increasing the liquid concentration, and then the mixture of sand and water is suctioned and discharged to the site using a sand pump.

⑵ Due toSuction nozzleStyleDredgerWide application range, broad operating condition coverage, capable ofExtractThe conveying, discharging, and treatment processes are completed in one go, allowing for a continuous dredging operation, and thus, it has been widely adopted. This type of vessel has seen significant development, and construction units have prioritized purchasing and utilizing them.Suction-injectorDredging vessel.

(3) Suction dredgerIdeal for operations and deployments in the B and C navigation zones of the Yangtze River system, it is also suitable for other waterways, harbors, and lakes, including dredging, excavation, reclamation, and embankment reinforcement. Additionally, it applies to the dredging and filling of small and medium-sized reservoirs, river transportation embankments, agricultural water conservancy projects, flood control, and drainage.

Suction DredgerOverview

(1) This vessel is a general-purpose jet suction dredger. It is a non-self-propelled, steel, integral box-type structure. The bow is equipped with an open档elevator dredging device. Two lateral winches are designed and installed on both sides of the bow to assist the fixed winch at the stern in moving the vessel for construction purposes. A propulsion propeller is mounted at the stern for the vessel's free navigation.

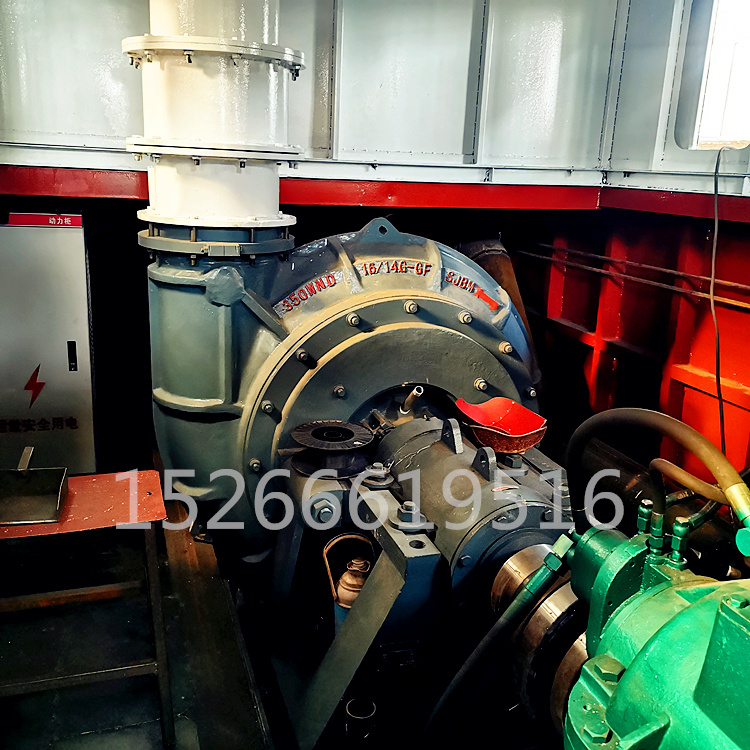

(2) The sand and mud extracted from this vessel are handled by the cargo pump inside the hold.(Volute, pump housing, and liner are made of Cr26 material)Used in conjunction with high-pressure jet pumps.Driven by a diesel engine via a high-elastic coupling to the ship's gear box.

(3) This vessel is equipped with one main diesel engine, one auxiliary diesel engine to drive a high-pressure water pump, and the high-pressure water pump uses a mid-open type supercharged centrifugal pump.

(4) One single-rod diesel-driven sand pump hoist.

(5) A diesel generator set is provided to power the entire vessel.

(6) The entire vessel is blast-coated with paint and equipped with night working lighting.

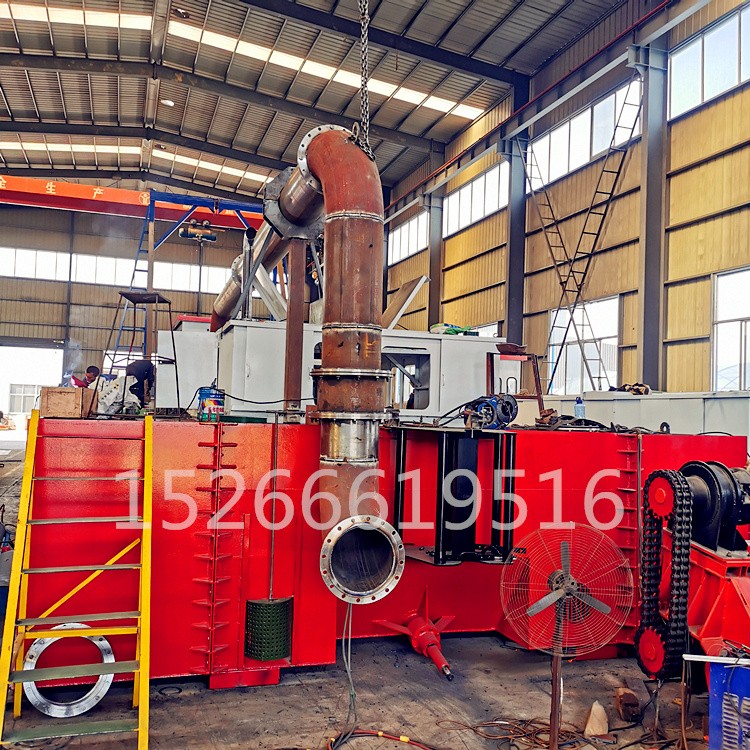

Manufacturing Scene

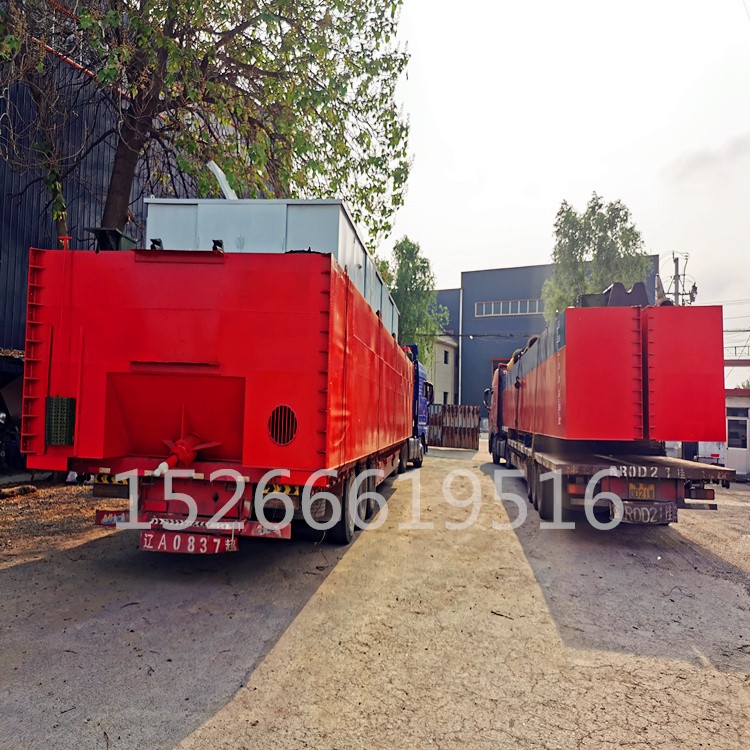

InstallationScenario

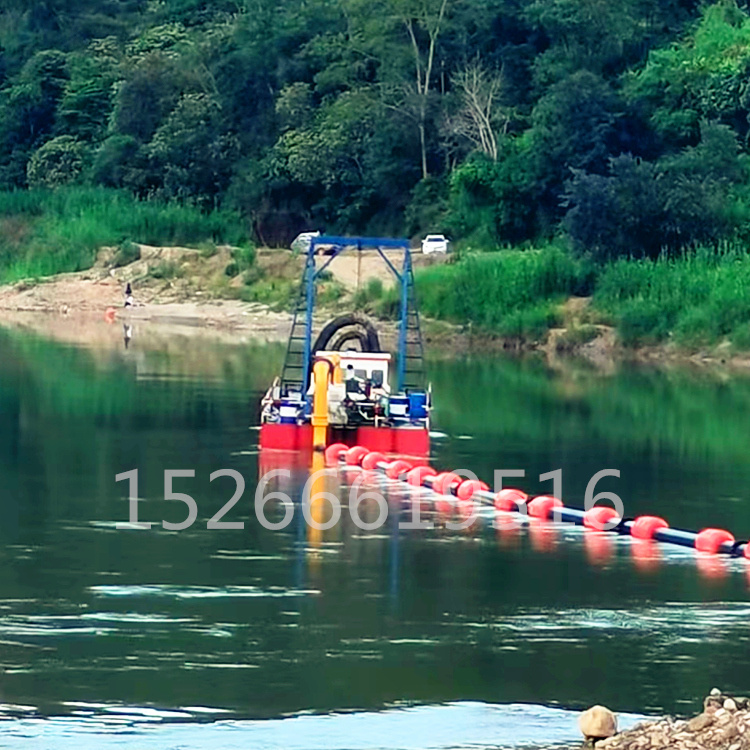

Construction Site

Configuration Parameters

After-sales service

1. Installation Adjustment

(1) Upon arrival of the goods, we will dispatch a seasoned engineer to the site for installation assistance and guidance.

(2) Our company's installation engineers can mentor apprentice personnel during the installation and debugging process.

(3) If the shipowner purchasing our factory's equipment lacks qualified crew members, we can introduce skilled ship captains for on-site interviews.

2. Maintenance and Repair

(1) Diesel engines, generators, winches, sand pumps, power distribution systems, and hulls come with a 12-month warranty. Paid services and spare parts are available for after-sales support.

(2) If your operators are inexperienced or making minor adjustments, simply report the issues to us, and we'll provide you with solutions. Every product is tested for actual operation in our factory before shipment to ensure proper functioning.

3. Training

We will provide professional training and operation guides to help you resolve issues.

(2) We guarantee that all accessories are in stock and will ship within 24 hours.

(3) We offer you a convenient parts delivery method, just let us know the model identification of the parts you need to replace.

(4) Each product configuration document we produce is archived for future reference, ensuring users only need to access it.
