Four-point positioning head-rotating dredging sand suction barge

⑴SuctionStyleDredgingVessel, also known asSiphon-typeA dredging vessel designed according to the customer's site, it utilizesHigh-pressure waterProcess soil and sandstoneRobust erosion and cutting capabilitiesPlease provide the Chinese content to be translated.MudThe sand merges with water, increasing the liquid concentration, and then the mixture of sand and water is suctioned in and transported to the site using a sand pump.

⑵ Due toSuction shootingPatternDredgingThe ship has a broad application range and is suitable for a wide range of working conditions.ExtractThe conveying, discharge, and treatment processes are completed in one go, enabling a continuous operation in the dredging process, thus gaining widespread application. This type of vessel has seen significant development, and construction units are prioritizing the purchase and use of these vessels.Suction-injection typeDredging vessel.

(3) Suction dredgingThe vessel is suitable not only for operations and deployments in the B and C navigation areas of the Yangtze River system but also for other waterways, harbors, and lakes in projects such as dredging, excavation, reclamation, and embankment reinforcement. It is also applicable for the dredging and blowing filling of small and medium-sized reservoirs, river transportation embankments, agricultural water conservancy construction, flood control, and drainage.

This four-jack positioning suction-typeDredging Vessel Overview

(1)This vessel is a new dredging equipment developed based on the construction of a standard jet suction dredger. It is an autonomous, steel-hulled, monocoque vessel. The bow is designed with a hydraulic steering telescopic wall, equipped with underwater slurry pumps and high-pressure water jets. One operator controls the cabin, allowing for flexible and maneuverable operation of the telescopic and steering arms. This ensures close contact between the underwater slurry pump and the extracted material, utilizing the high-pressure water flow around the pump to erode silt, forming a slurry, which is then pumped and discharged to the designated area.

(2) This vessel extracts mud and sand using an underwater sludge pump.Impeller, pump casing, and wear plate are made of Cr26 material.Used in conjunction with high-pressure water pumps.

(3) The ship's bow thruster movement and positioning are fully hydraulically controlled.

(4) Our vessel's positioning employs a fore and aft four-pile system, with the stern pile equipped with a mobile trolley for easy sliding, enhancing production efficiency. The four-pile system ensures stability as solid as a rock.

(5) The vessel is equipped with a diesel engine for the entire ship's use.

(6) Full ship sandblasting and painting, with night work lighting installed.

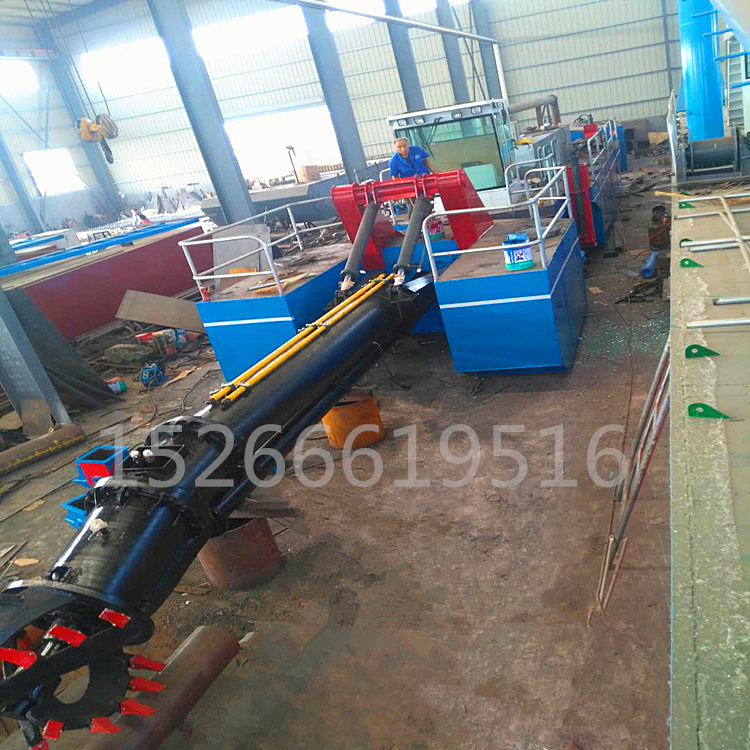

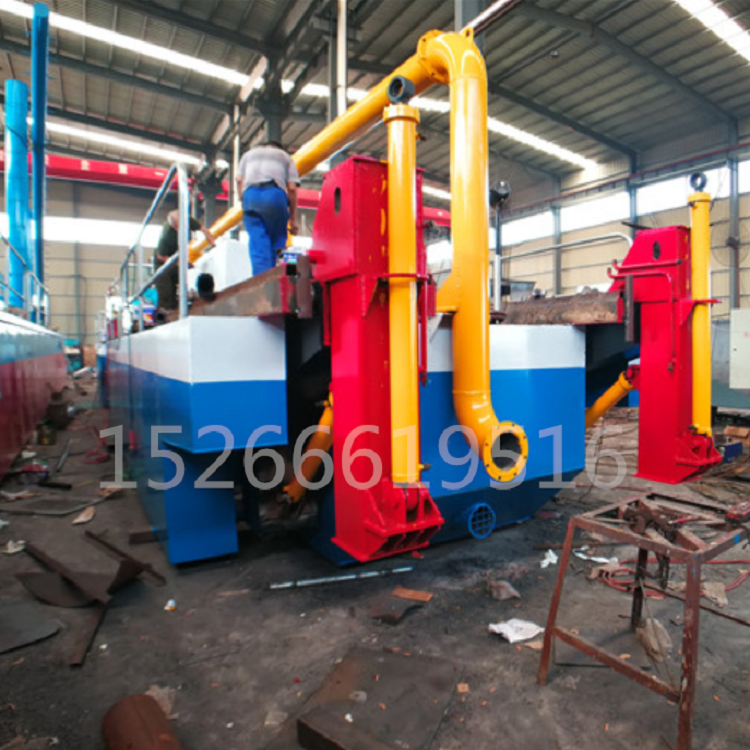

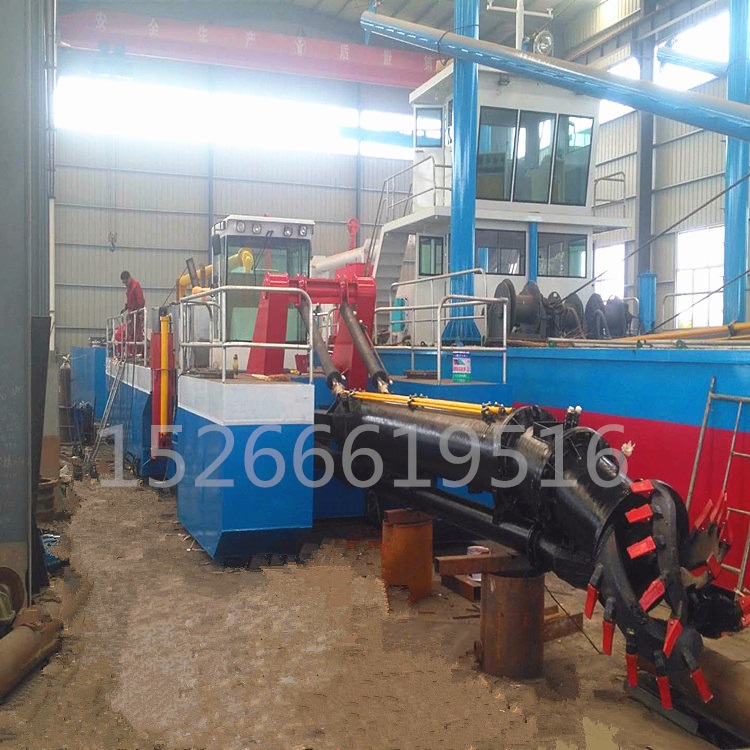

Manufacturing Scenario

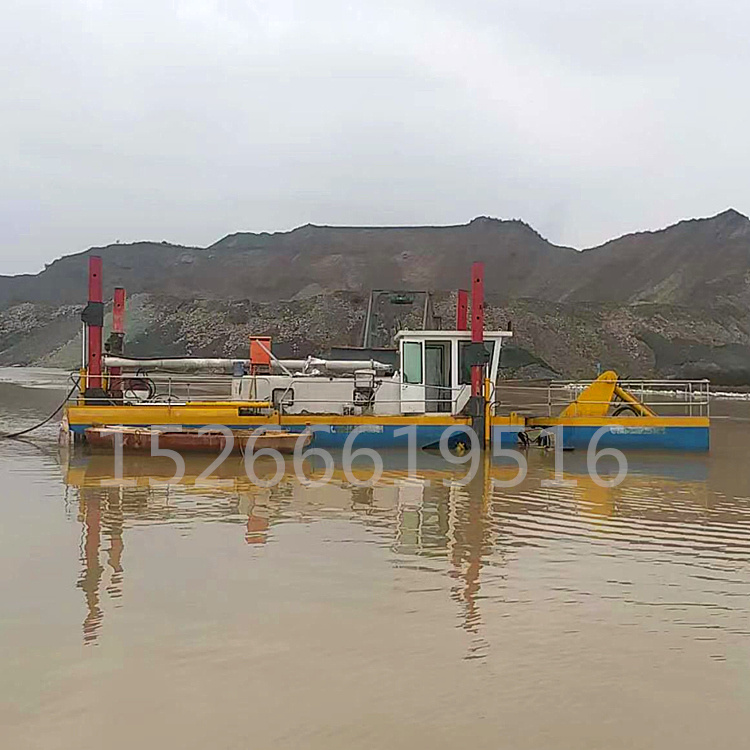

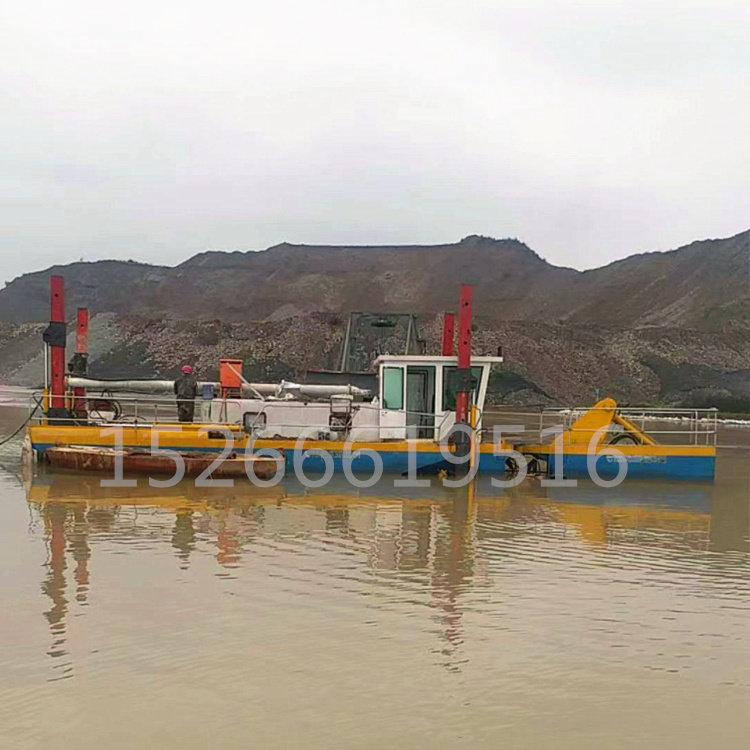

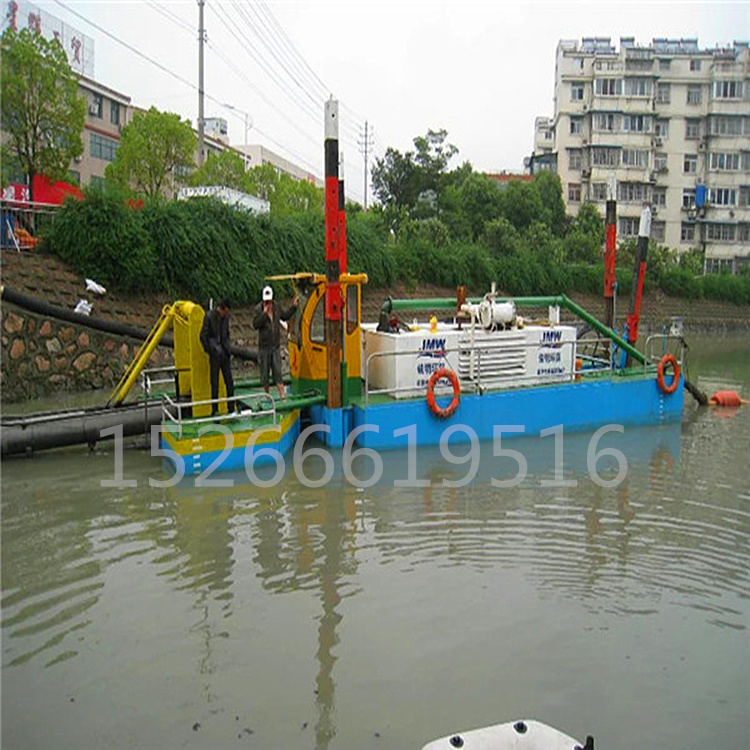

Construction site

Configuration Parameters

After-sales service

1. Installation and Adjustment

After the goods arrive, we will send 1 experienced engineer to the site for installation assistance and guidance.

(2) Our company's installation engineers can mentor trainees during the installation and debugging process.

(3) If the shipowner purchasing our factory's equipment lacks qualified crew members, we can introduce skilled captains for on-site interviews.

2. Maintenance and Repair

(1) Diesel engines, generators, hydraulic systems, slurry pumps, electrical distribution systems, and hulls come with a 12-month warranty. Paid services and parts are available post-warranty.

(2) If your operators lack experience or need fine-tuning, simply report the issues to us, and we will provide solutions. Every product undergoes in-house actual operation before shipment to ensure proper functioning.

Training

We will provide professional training and operation guides to help you resolve issues.

(2) We guarantee that all accessories are in stock and will be shipped within 24 hours.

(3) We offer you a convenient parts delivery method, just let us know the label identification of the parts you need to replace.

(4) Each product configuration document we produce is archived for future reference.

Thank you for your trust and support in Shandong Yongsheng Dredging Machinery Co., Ltd. We will deliver qualified brand products, and Yongsheng Machinery wishes you prosperity. Should you have any questions, please feel free to contact me. We look forward to collaborating with you and welcome you to visit our factory.

If you have any questions, please contact me. We look forward to collaborating with you and welcome you to visit our factory.
