Suction Dredge Sand Barge

⑴Syringe aspirationStyleSediment ExtractionVessel, also known asSiphon-typeA dredging vessel designed according to the customer's site, it utilizesHigh-pressure waterProcess soil and sandstoneRobust erosion and cuttingPlease provide the Chinese content to be translated.ClayThe sand merges with water to increase the liquid concentration, and then a sand pump is used to suck the mixture of sand and water into and discharge it to the site.

⑵ Due toSyringe aspirationStyleDredgerWide application range, broad operational condition coverage, capable ofExtractThe conveying, discharge, and treatment processes are completed in one go, enabling a continuous operation in the dredging process, thus gaining widespread application. This type of vessel has seen significant development, and construction units have all prioritized purchasing and using them.Suction-injection typeDredging vessel.

(3) Suction dredge bargeIdeal for operations and deployments in the B and C navigation zones of the Yangtze River system, it also applies to dredging, excavation, reclamation, and embankment reinforcement projects in other waterways, harbors, and lakes. Additionally, it is suitable for silt removal and blowing fill excavation in small and medium-sized reservoirs, river transportation embankments, agricultural water conservancy construction, flood control, and drainage.

This jet suction dredgerOverview

(1) This vessel is a general-purpose jet suction dredger, a non-self-propelled, steel, monocoque structure ship. The bow is equipped with an open-type lifting and lowering dredging device. Two side-mounted winches are designed to assist the ship's movement in conjunction with the fixed winch at the stern. A propeller is installed at the stern for the vessel's independent navigation.

(2) This vessel's sand and mud removal is via the cargo hold sludge pumpThe impeller, pump casing, and wear plate are made of Cr26 material.Used in conjunction with high-pressure water pumps.Driven by a diesel engine via a high-elastic coupling, the ship's gear box is powered.

(3) This vessel is equipped with one main diesel engine, one auxiliary diesel engine that drives a high-pressure water pump, and a high-pressure water pump using a medium-split type supercharged pump.

(4) A single-cylinder diesel-driven sand pump with lifting and lowering function.

(5) A diesel generator set powers the entire vessel.

(6) The entire vessel is shot blasting and painted, equipped with night work lighting.

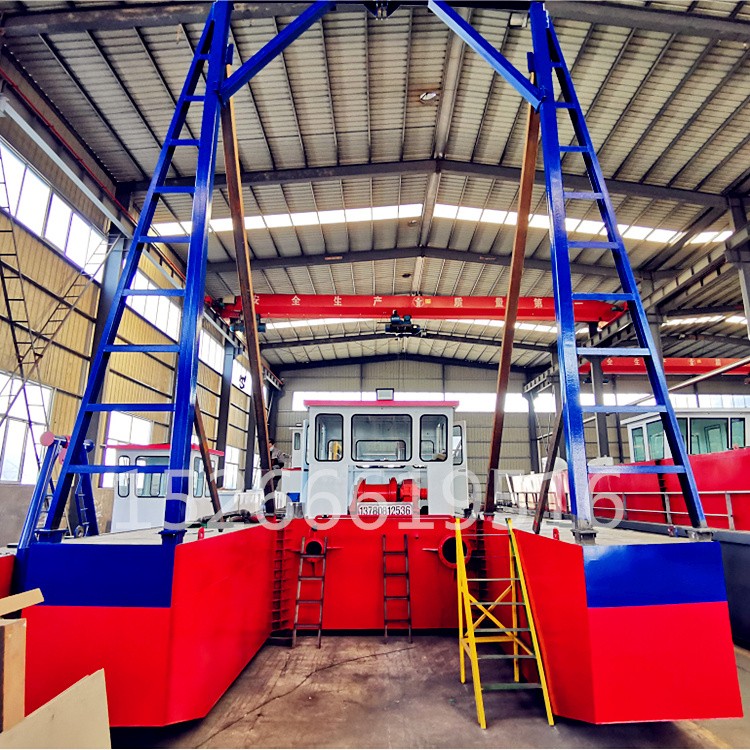

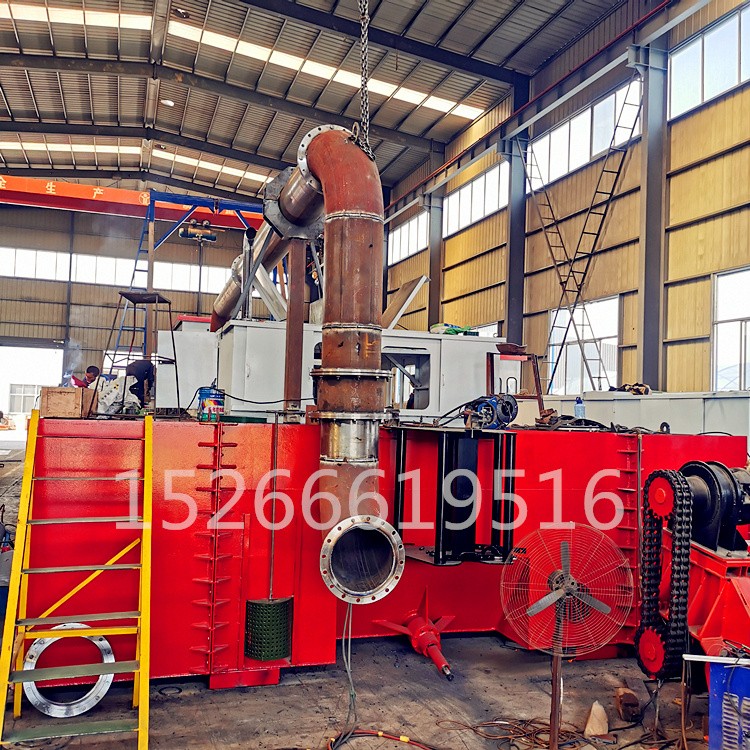

Manufacturing Scene

InstallationScenario

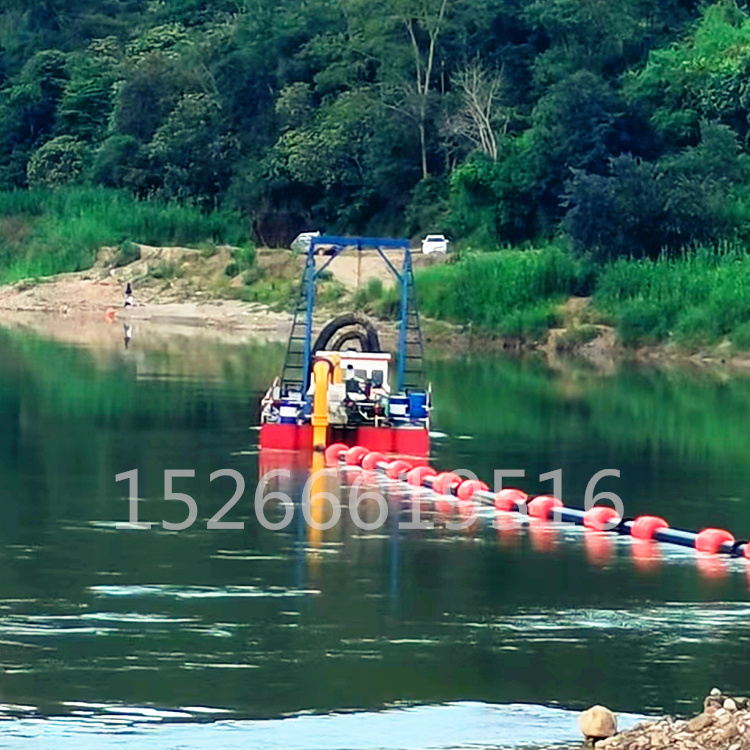

Construction site

Configuration Parameters

After-Sales Service

1. Installation Adjustments

After the goods arrive, we will send 1 experienced engineer to the site for installation assistance and guidance.

(2) Our company's installation engineers can mentor trainees during the installation and debugging process.

(3) If the shipowner who purchases our factory's equipment lacks qualified crew members, we can introduce skilled ship captains for on-site interviews.

2. Maintenance and Repair

(1) Diesel engines, generators, winches, dredge pumps, electrical distribution systems, and hulls all come with a 12-month warranty. Paid services and parts are available for later support.

(2) If your operators are inexperienced or making minor adjustments, simply report the issues to us, and we'll provide solutions. Every product undergoes in-house operational testing before shipment to ensure proper functioning.

3. Training

We will provide professional training and operation guides to help you solve any issues.

(2) We guarantee that all accessories are in stock and will be shipped within 24 hours.

(3) We offer you a convenient parts delivery method, just let us know the identification mark of the parts you need to replace.

(4) Each product configuration document we produce is stored in our database, ensuring that users only need to access it later.

Thank you for your trust and support in Shandong Yongsheng Dredging Machinery Co., Ltd. We are committed to providing you with high-quality brand products, and wish you great success. Should you have any questions, please feel free to contact me. We look forward to collaborating with you and welcome you to visit our factory.

If you have any questions, please contact me. We look forward to collaborating with you and welcome you to visit our factory.

Best regardsGreetings!
