Suction dredge ship

⑴SiphonStyleDredgingVessel, also known asSuction-injection typeA dredging vessel designed specifically for the customer's site, it utilizesHigh-pressure waterScreening soil and sandstoneRobust erosion and cutting capabilitiesPlease provide the Chinese content to be translated.MudThe sand merges with water, thereby increasing the liquid concentration, and then the mixture of sand and water is suctioned and transported to the site using a sand pump.

⑵ Due toSyringe aspirationStyleSediment Extraction VesselBroad application range, wide operational condition coverage, capable ofExtractThe transportation, discharge, and processing of various stages are completed in one go, enabling a continuous operation of the dredging process, thus gaining widespread application. This type of vessel has seen significant development, and construction units are prioritizing the purchase and use of them.Suction-typeDredging vessel.

(3) Suction dredge shipIdeal for operations and deployments in the B and C navigable areas of the Yangtze River system, it also applies to other waterways, harbors, and lakes for dredging, excavation, reclamation, and embankment reinforcement. Additionally, it's suitable for the dredging and blowing filling of small and medium-sized reservoirs, river transport embankments, agricultural water conservancy construction, flood control, and drainage.

Submerged Jet Sand Pumping VesselOverview

(1) This vessel is a general-purpose jet suction dredger. It is a non-self-propelled, steel, monocoque structure. The bow is equipped with an open-type lifting and lowering dredging device. Two side-mounted winches are designed to assist in the vessel's positioning with the fixed winch at the stern. A propeller is installed at the stern for the vessel's independent navigation.

(2) This vessel extracts mud and sand using the cabin sludge pumpImpeller, pump casing, and wear plate are made of Cr26 material.Used in conjunction with high-pressure centrifugal pumps.Driven by a diesel engine through a high elasticity coupling connected to the ship's gear box.

(3) This vessel is equipped with one main diesel engine, one auxiliary diesel engine that drives a high-pressure water pump, and the high-pressure water pump utilizes a middle-open type supercharging centrifugal pump.

(4) A single-cylinder diesel-driven sand pump hoist.

(5) A diesel generator set provides electricity for the entire vessel.

(6) The entire vessel is blast-washed and painted, equipped with night work lighting.

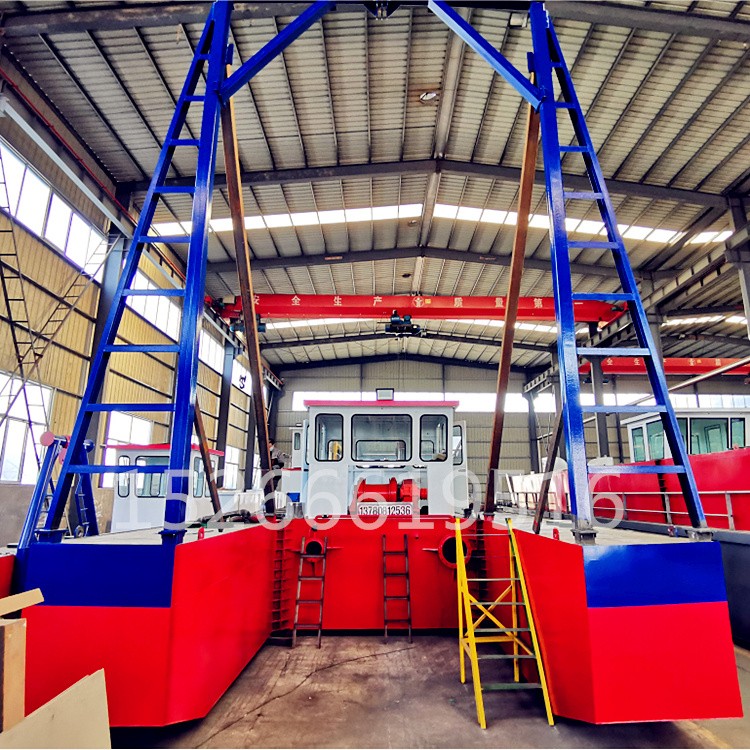

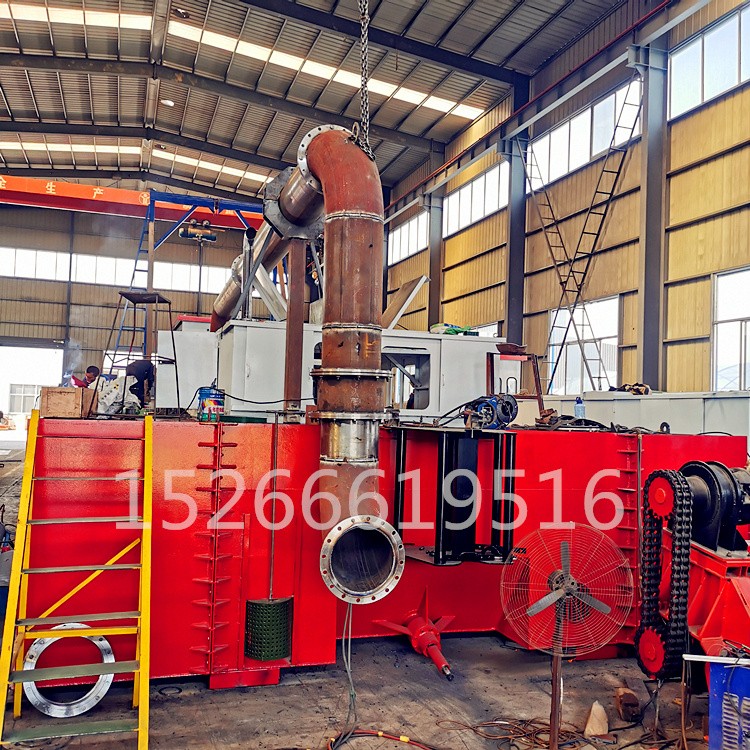

Manufacturing Scenario

InstallationScenario

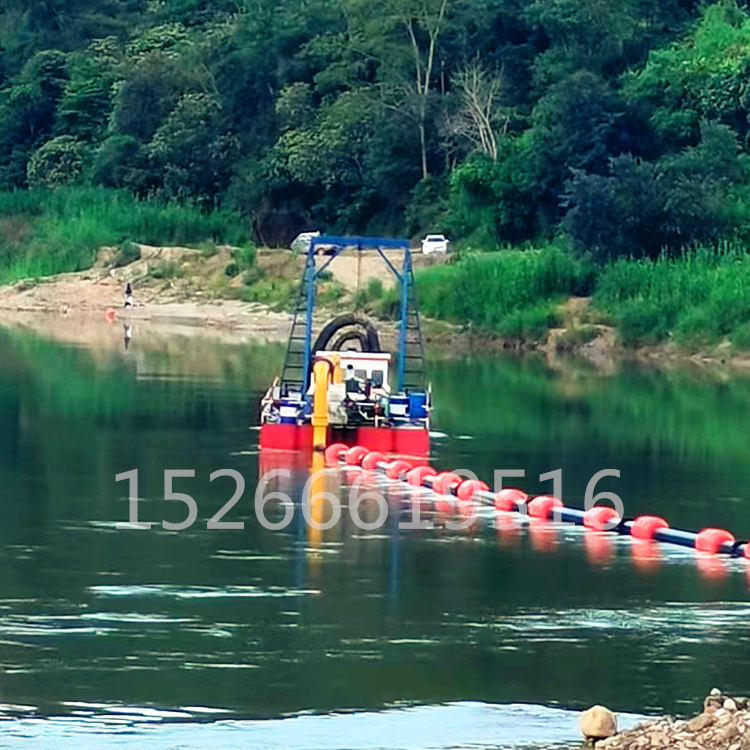

Construction Site

Configuration Parameters

After-Sales Service

1. Installation and adjustment

After the goods arrive, we will dispatch a seasoned engineer to the site for installation assistance and guidance.

(2) Our company's installation engineers can mentor apprentice personnel during the installation and debugging process.

(3) If the shipowner purchasing our factory's equipment lacks qualified crew members, we can introduce skilled ship captains for on-site interviews.

2. Maintenance and Repair

(1) Diesel engines, generators, winches, dredging pumps, power distribution systems, and hulls come with a 12-month warranty. Paid services and spare parts are available post-warranty.

(2) If your operators lack experience or need fine-tuning, simply report the issues to us, and we'll provide solutions. Every product undergoes in-house actual operation before shipment to ensure its proper functioning.

Training

We will provide professional training and operation guides to help you solve issues.

(2) We guarantee that spare parts are always in stock and will ship within 24 hours.

(3) We offer you a convenient parts delivery method; just let us know the label identification of the parts you need to replace.

(4) Each product configuration document we produce is archived for future reference.

Thank you for your trust and support in Shandong Yongsheng Dredging Machinery Co., Ltd. We will deliver qualified brand products to you, and Yongsheng Machinery wishes you great success. Should you have any questions, please feel free to contact me. We look forward to collaborating with you and welcome you to visit our factory.

If you have any questions, please contact me. We look forward to collaborating with you and welcome you to visit our factory.

Best wishes in businessGreetings!

Graphic Production: Shandong Yongsheng Dredging Machinery Co., Ltd.
