Suction dredger

DredgerIntroduction

⑴Suction and washingStyleSediment ExtractionShip, also known asSuction-jetA dredging vessel designed to cater to the customer's site specific requirements.High-pressure waterProcess soil and sandstoneRobust erosion and cutting powerPlease provide the Chinese content to be translated.MudThe sand merges with water, thereby increasing the liquid concentration, and then the mixed slurry of sand and water is suctioned in and discharged to the site using a sand pump.

⑵ Due toSuction flushingStyleDredgingThe vessel has a broad application range and wide operational condition coverage, capable of accommodatingExtractThe conveying, discharge, and treatment processes are completed in one go, enabling a continuous operation of the dredging process, thus gaining widespread application. This type of vessel has seen significant development, and construction units are all prioritizing their purchase and use.Suction-jetDredging vessel.

(3) Suction Dredge ShipSuitable for operations and deployments in the B and C navigation areas of the Yangtze River system, as well as for dredging, excavation, reclamation, and embankment reinforcement in other waterways, harbors, and lakes. It is also applicable to the dredging and blowing fill excavation of small and medium-sized reservoirs, river transportation embankments, agricultural water conservancy construction, flood control, and drainage.

This vacuum suction dredgerOverview

(1)This vessel is a general-purpose suction dredger, a non-self-propelled, steel, integral box-type structure. The bow is equipped with an open-lift dredging device. Two side-mounted horizontal winches, in conjunction with the fixed winch at the stern, facilitate the positioning and construction work of the vessel.

(2) This vessel extracts mud and sand using the interior sludge pumpImpeller, pump casing, and wear plate are made of Cr26 material.Used in conjunction with high-pressure centrifugal pumps.Driven by a diesel engine connected to the ship's gear box via a high-torque coupling.

(3) This vessel is equipped with a main diesel engine, which drives the sand pump through a ship's gear box. A secondary engine powers a high-pressure water pump, featuring a mid-open type supercharged centrifugal pump.

(4) A single-rod diesel-driven sand dredging lifting device.

(5) Full ship shot blasting and painting, equipped with night working lighting.

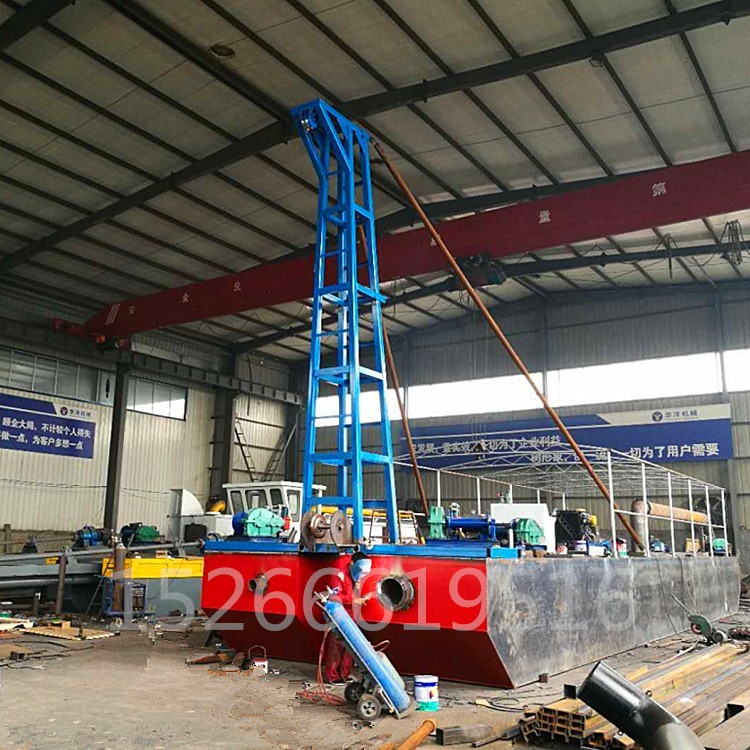

Manufacturing Scenario

InstallationScenario

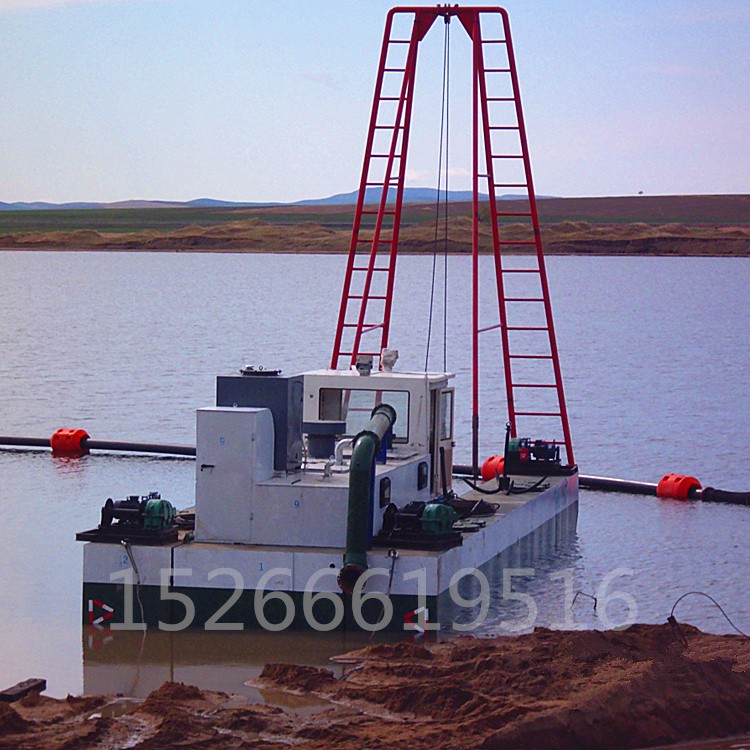

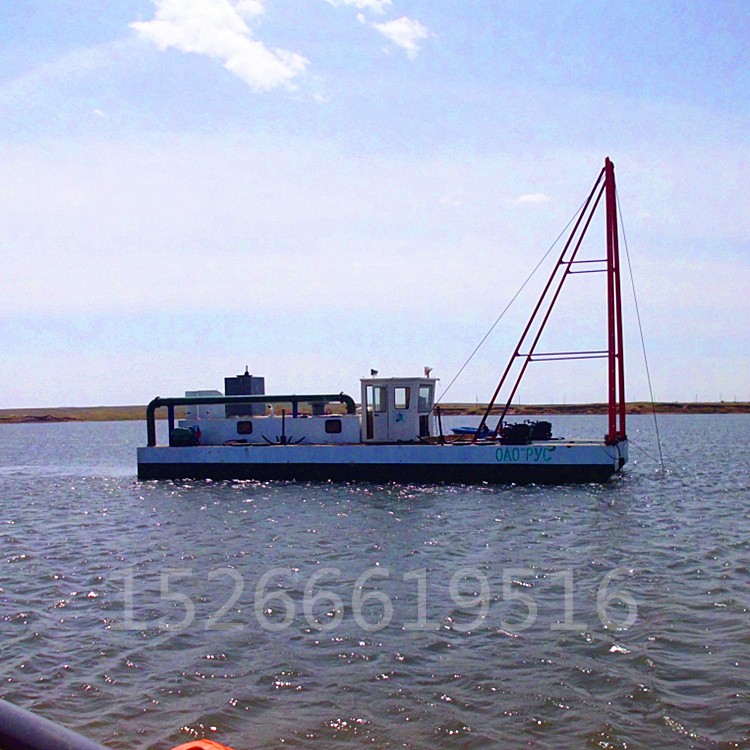

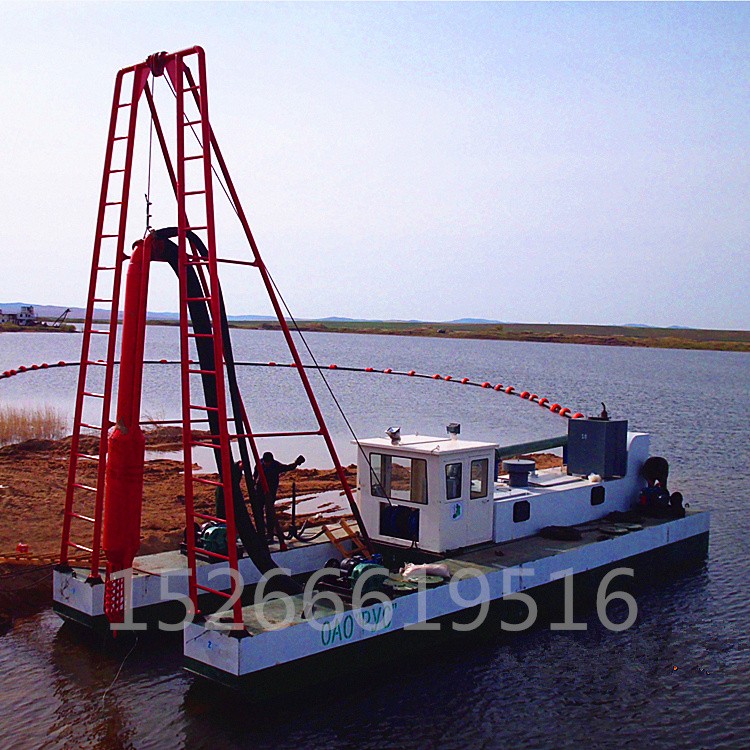

Construction Site

Reference Parameters

After-Sales Service

1. Installation and adjustment

Upon arrival of the goods, we will dispatch one experienced engineer to the site for installation assistance and guidance.

(2) Our company's installation engineers can mentor apprentice personnel during the installation and debugging process.

(3) If the shipowner purchasing our factory's equipment lacks qualified crew members, we can introduce skilled ship captains for on-site interviews.

2. Maintenance and Repair

(1) Diesel engines, generators, winches, dredge pumps, electrical distribution systems, and hulls all come with a 12-month warranty. Paid services and spare parts are available for later use.

(2) Should your operators lack experience or need fine-tuning, simply report the issues to us, and we'll provide you with solutions. Every product is tested for actual operation in our factory before shipment to ensure its proper functioning.

3. Training

We will provide professional training and operation guides to help you solve issues.

(2) We guarantee the availability of the accessories in stock and offer shipment within 24 hours.

(3) We offer you a convenient parts delivery method; just let us know the nameplate identification of the parts you need to replace.

(4) Each product configuration document we produce is archived for future reference.

Thank you for your trust and support in Shandong Yongsheng Dredging Machinery Co., Ltd. We will deliver qualified brand products, and Yongsheng Machinery wishes you prosperity. Should you have any questions, please feel free to contact me. We look forward to collaborating with you and welcome you to visit our factory.

If you have any questions, please contact me. We look forward to collaborating with you and welcome you to visit our factory.

Best business regards!

Graphic Production: Shandong Yongsheng Dredging Machinery Co., Ltd.
