Export cutter suction dredger

⑴Main types of dredgers include cutter suction, bucket wheel, chain bucket, and jet suction dredgers.Screw-typeDredgingShips, also known as cutter suction dredgers, are designed based on the client's site. They utilize hydraulic cutters to chop or mix soil and sandstone.SoilThe sand body merges with water, thereby increasing the liquid concentration, and then appliesSlurry PumpIngest and discharge the mixture of mud, sand, stones, and water to the site.

⑵ Due to the cutter suctionDredgerWide applicability to river channels and various operational conditions, capable of completing挖掘 (excavation), 输送 (transmission), 排出 (discharge), and 处理 (processing) in one go.Dredging and sediment removalContinuous operation process, hence its widespread application. This type of vessel has seen significant development, and construction units are all prioritizing the purchase and use of cutter suction dredgers.DredgingVessel.

(3) Suction dredgeExcavating siltThe vessel is suitable not only for operations and deployments in the B and C navigation areas of the Yangtze River system, but also for projects such as dredging, excavation, channel deepening, and embankment reinforcement in other waterways, harbors, and lakes. It is also applicable to small and medium-sized reservoirs.DredgingDredging and filling, river transportation embankment construction, agricultural water conservancy projects, flood control and drainage, etc.

DredgingShip Overview

(1) This vessel is a non-self-propelled, steel, monocoque tricoque dredge with a diesel engine-powered full-hydraulic grab, featuring a bridge frame at the bow, two steel piles at the stern for positioning, and a movable trolley for the main positioning pile. It operates by coordinating the bow's left-right lateral winch and the stern's positioning piles to achieve forward movement and side-to-side displacement for dredging and sediment removal, with the entire vessel controlled by hydraulic systems.

(2) This ship's winch is powered by a low-speed, high-torque hydraulic motor through a gear box to drive the winch.The shaft of the winch is made ofHigh qualityDouble-row spherical roller bearings provide support.

(3) This vessel is equipped with an in-hull sludge pumpImpeller, pump casing, and liner are made of Cr26 material.Driven by a diesel engine connected to the ship's gear box via a high-elastic coupling, the diesel engine is powered by Weichai Power.

(4) The ship's winch is hydraulically driven, with the side shift winch, bridge winch, and stern positioning cylinder operating in hydraulic mode.

(5) This vessel is equipped with three diesel engines, the main engine drives the sludge slurry pump, auxiliary engines power the entire ship's hydraulics, and the standby diesel generator set provides power for maintenance and daily use.

(6) The entire vessel is blast cleaned and painted, with night working lighting installed.

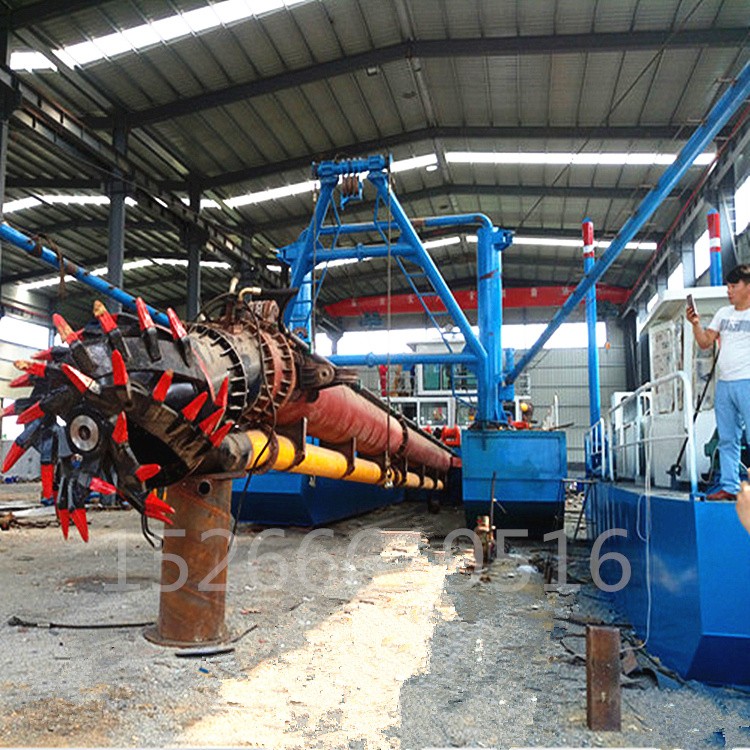

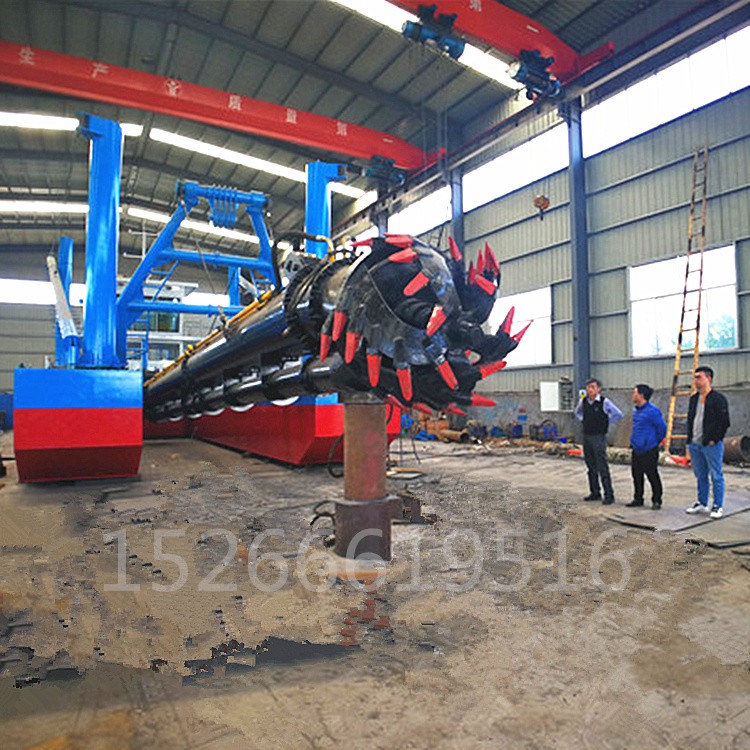

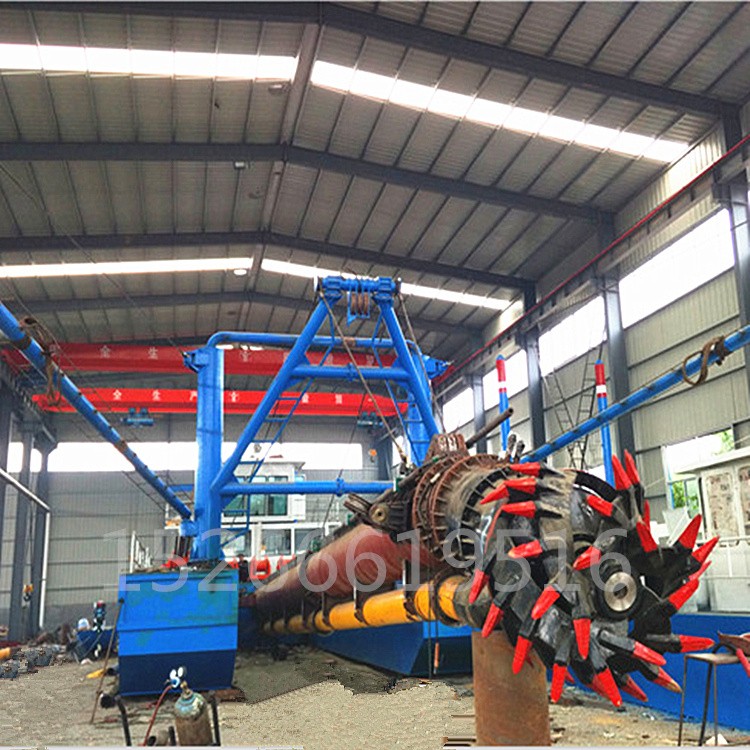

Manufacturing Scenario

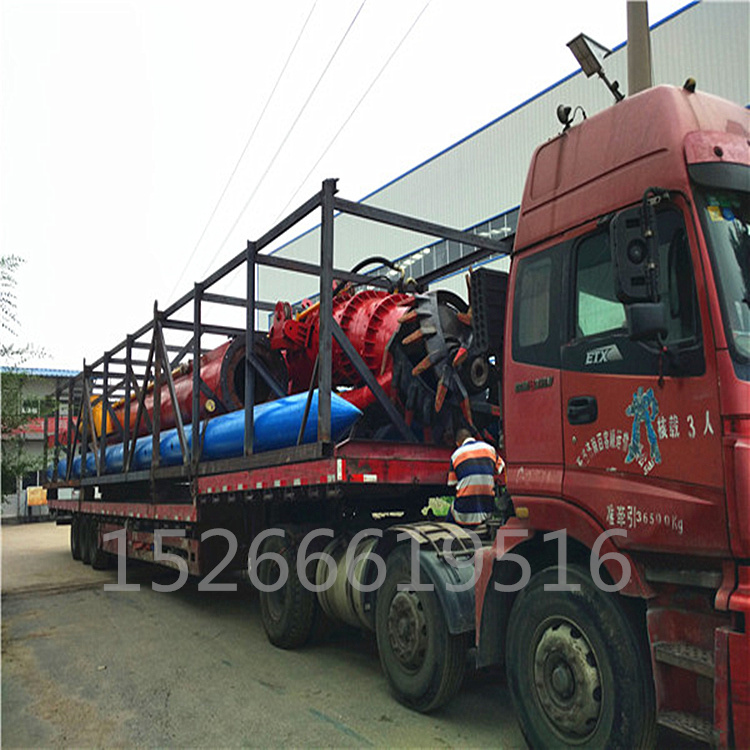

HoistingScenario

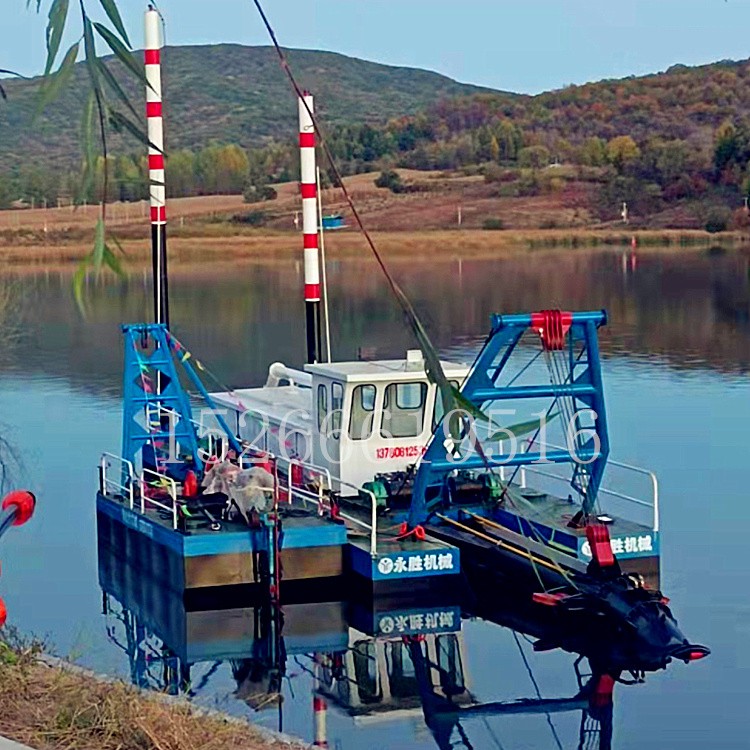

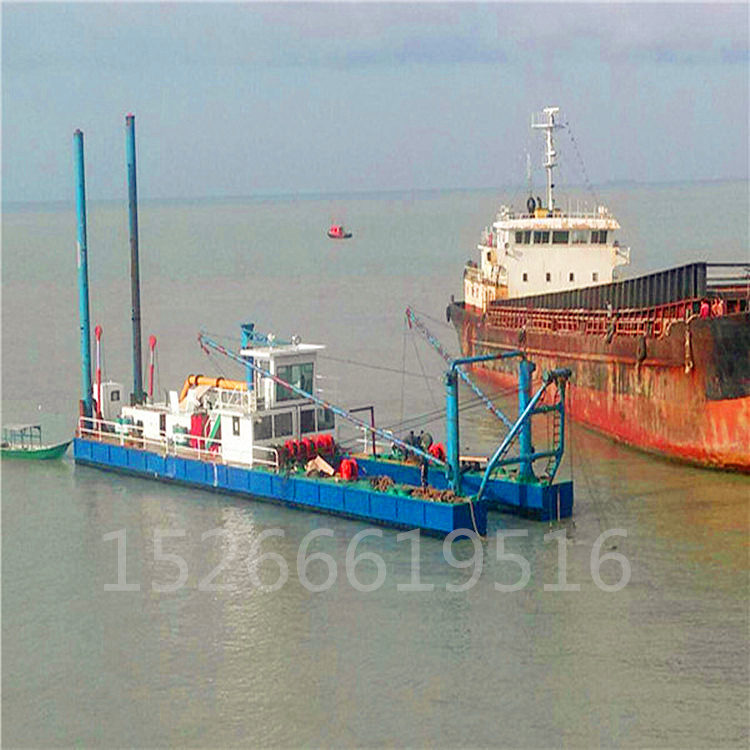

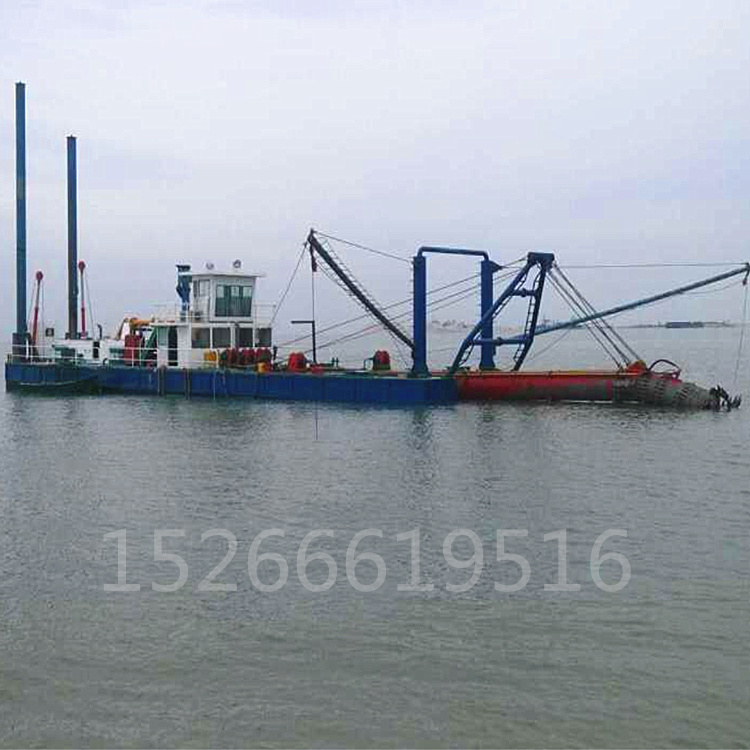

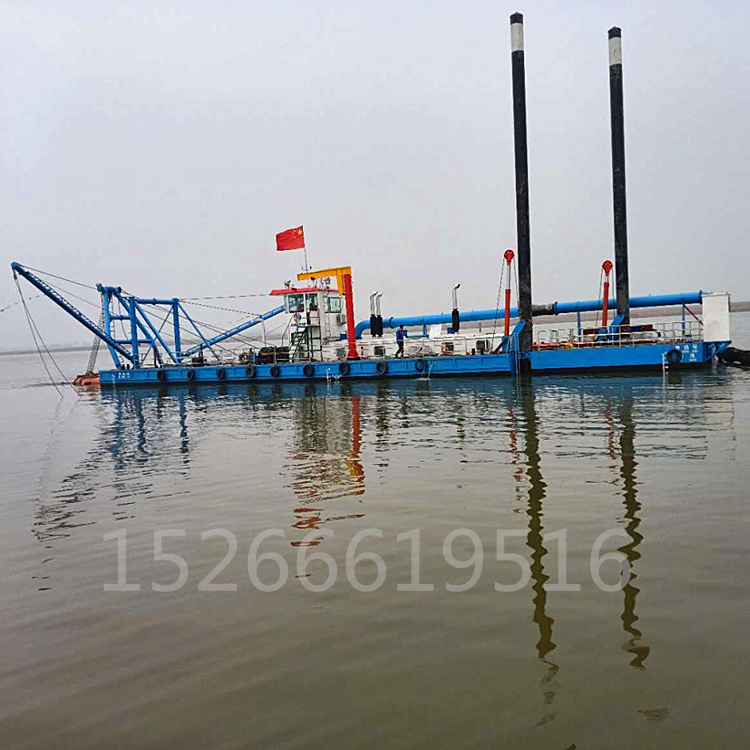

Construction Site

Configuration Parameters

After-sales service

1. Installation and adjustment

Upon arrival of the goods, we will send a seasoned engineer to the site for installation assistance and guidance.

(2) Our company's installation engineers can mentor apprentice personnel during the installation and debugging process.

(3) If the shipowner purchasing our factory's equipment lacks qualified crew members, we can introduce skilled captains to apply for positions on-site.

2. Maintenance and Repair

(1) Diesel engines, generators, hydraulic systems, slurry pumps, winches, electrical distribution systems, and hulls all come with a 12-month warranty. Paid services and parts are available after the warranty period.

(2) If your operators lack experience or need fine-tuning, simply report the issues to us, and we'll provide solutions. Every product undergoes in-house actual operation before shipment to ensure proper functioning.

3. Training

We will provide professional training and operation guides to help you solve any issues.

(2) We guarantee that the accessories are always in stock and ship within 24 hours.

(3) We offer you a convenient parts delivery method; just let us know the part number you need replaced.

(4) Each product configuration document we produce is archived for future reference, ensuring users only need to access it.

Thank you for your trust and support in Shandong Yongsheng Dredging Machinery Co., Ltd. We will create qualified brand products for you. Yongsheng Machinery wishes you prosperity. If you have any questions, please contact me. We look forward to collaborating with you and welcome you to visit our factory.

If you have any questions, please contact me. We look forward to collaborating with you and welcome you to visit our factory.

Best regards in tradeQi!
