Suction dredge ship

⑴Suction shotStyleSediment ExtractionShip, also known asSiphon vacuumA dredging vessel designed specifically for the client's site, it utilizesHigh-pressure waterProcess soil and sandstoneEffective erosion and cuttingPlease provide the Chinese content to be translated.MudThe sand merges with water, thereby increasing the liquid concentration, and then the mixture of mud and water is suctioned and transported to the site using a sand pump.

⑵ Due toSyringe吸取StyleDredgerBroad application range, wide operational condition coverage, capable ofExtractThe conveying, discharge, and treatment processes are completed in one go, enabling a continuous operation in the dredging process, thus gaining widespread application. This type of vessel has seen significant development, and construction units all prioritize purchasing and using them.Suction-injection styleDredging vessel.

(3) Suction dredgerNot only suitable for operations and deployments in the B and C navigation areas of the Yangtze River system, but also applicable to other waterways, harbors, and lakes for dredging, excavation, reclamation, and embankment reinforcement. Additionally, it is suitable for the dredging and blowing filling excavation of small and medium-sized reservoirs, river transportation embankments, agricultural water conservancy construction, flood control, and drainage.

Suction DredgerOverview

(1) This vessel is a general-purpose jet suction sand dredger. It is a non-self-propelled, steel, integral box-type structure. The bow is equipped with an open档 drop sand suction device. Two side-mounted horizontal winches, in conjunction with the fixed winch at the stern, facilitate the vessel's positioning and construction. A propeller is installed at the stern for the vessel's independent navigation.

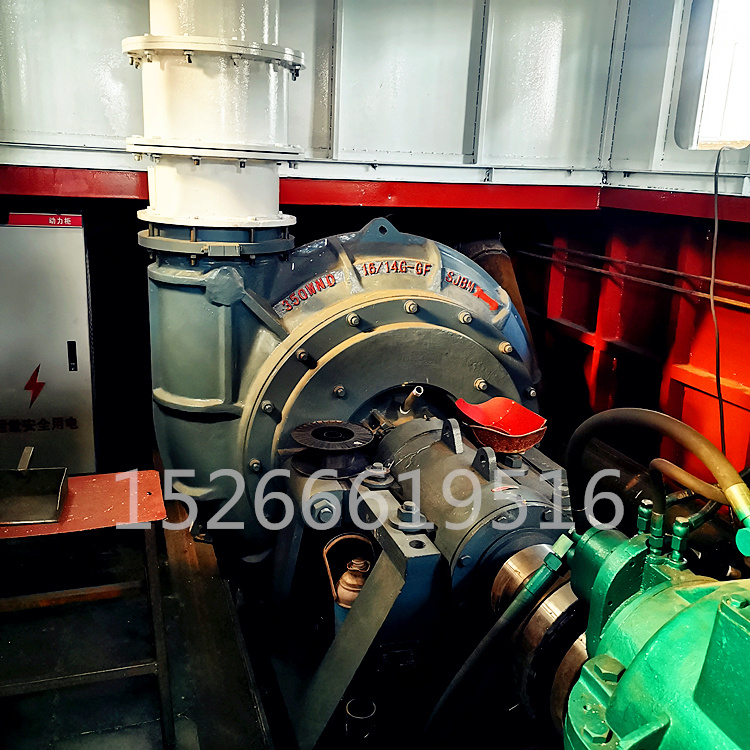

(2) This vessel's sand and mud extraction is via the onboard sludge pump.Impeller, pump casing, and liner are made of Cr26 material.Used in conjunction with high-pressure centrifugal pumps.Driven by a diesel engine via a high-torque coupling connected to the ship's gear box.

(3) This vessel is equipped with one main diesel engine, one auxiliary diesel engine to drive a high-pressure water pump, and the high-pressure water pump uses a mid-open type supercharged centrifugal pump.

(4) A single-bar diesel-driven sand pump hoist.

(5) A diesel generator set provides electricity for the entire vessel.

(6) Full ship blasting and painting, equipped with night working lighting.

Manufacturing Scene

InstallationScenario

Construction Site

Configuration Parameters

After-Sales Service

1. Installation & Adjustment

Upon arrival of the goods, we will send a seasoned engineer to the site for installation assistance and guidance.

(2) Our company's installation engineers can mentor trainees during the equipment installation and debugging process.

(3) If the shipowner purchasing our factory's equipment lacks qualified crew members, we can introduce skilled ship captains for on-site interviews.

2. Maintenance and Repair

(1) Diesel engines, generators, winches, dredge pumps, electrical distribution systems, and hulls all come with a 12-month warranty. Paid services and spare parts are available post-warranty.

(2) If your operators lack experience or need fine-tuning, simply report the issues to us, and we'll provide solutions. Every product undergoes in-house actual operation before shipment to ensure proper functioning.

3. Training

We will provide professional training and operation guides to help you solve the issues.

(2) We guarantee the availability of spare parts and ship within 24 hours.

(3) We offer you a convenient parts delivery method; just let us know the identification mark of the parts you need to replace.

(4) Each product configuration document we produce is archived for future reference.

Thank you for your trust and support in Shandong Yongsheng Dredging Machinery Co., Ltd. We will deliver quality brand products to you. Yongsheng Machinery wishes you great success. Should you have any questions, please contact me. We look forward to collaborating with you and welcome you to visit our factory.

If you have any questions, please contact me. We look forward to collaborating with you and welcome you to visit our factory.

Best regardsQi!
