Air Shower Room

Air Shower Chamber Working Principle:

Air shower rooms, also known as air bath dust rooms, air shower rooms/doors, air blowing rooms, AIR SHOWER equipment, and air shower machines, are essential passageways for personnel entering and exiting cleanrooms. They also serve as a buffer for the sealed cleanrooms, acting as airlock rooms. They are effective in dust removal for personnel and preventing outdoor air pollution from entering the cleanroom, and are a necessary equipment for personnel movement in current cleanroom environments.

The airlock chamber utilizes a jet airflow form. The variable-speed centrifugal fan pressurizes the air within the vacuum box, which has been filtered by a pre-filter, into the static pressure box. The clean airflow, blown out through the exhaust surface, carries away dust particles and biological particles from people and objects as it passes through the work area at a certain wind speed, thereby achieving the purpose of cleanliness.

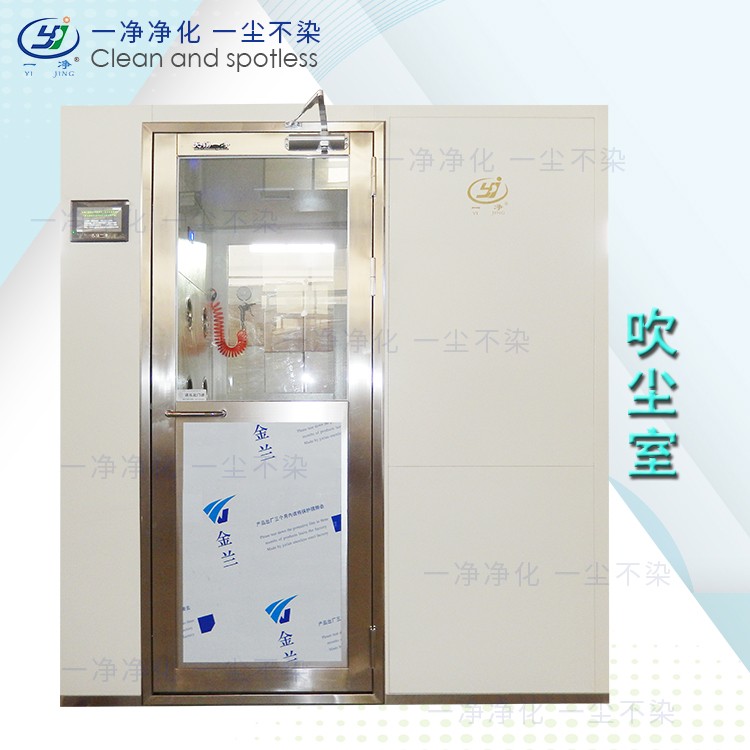

One Clean Air Shower Chamber Product Overview:

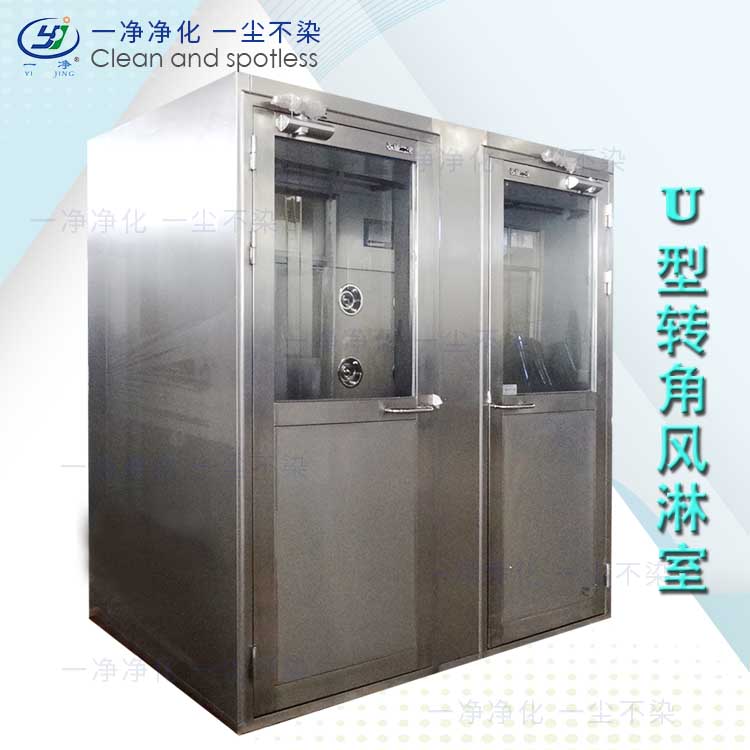

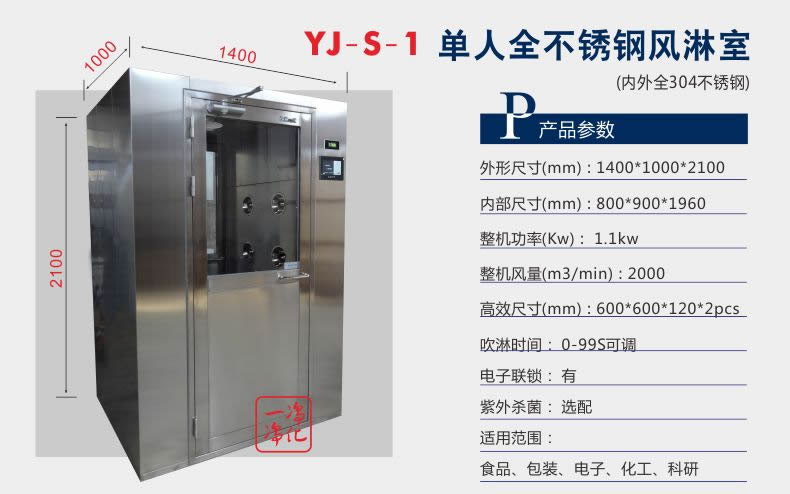

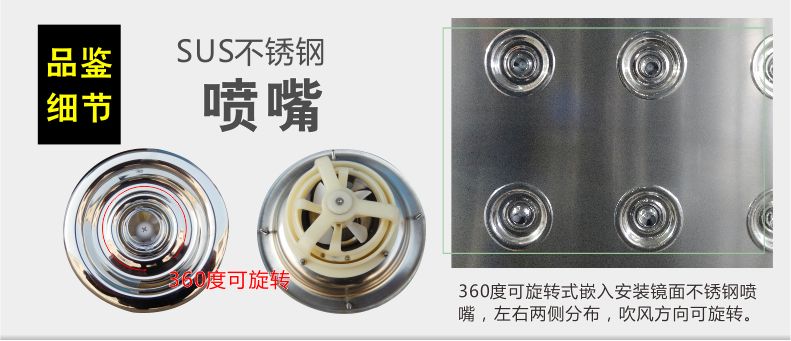

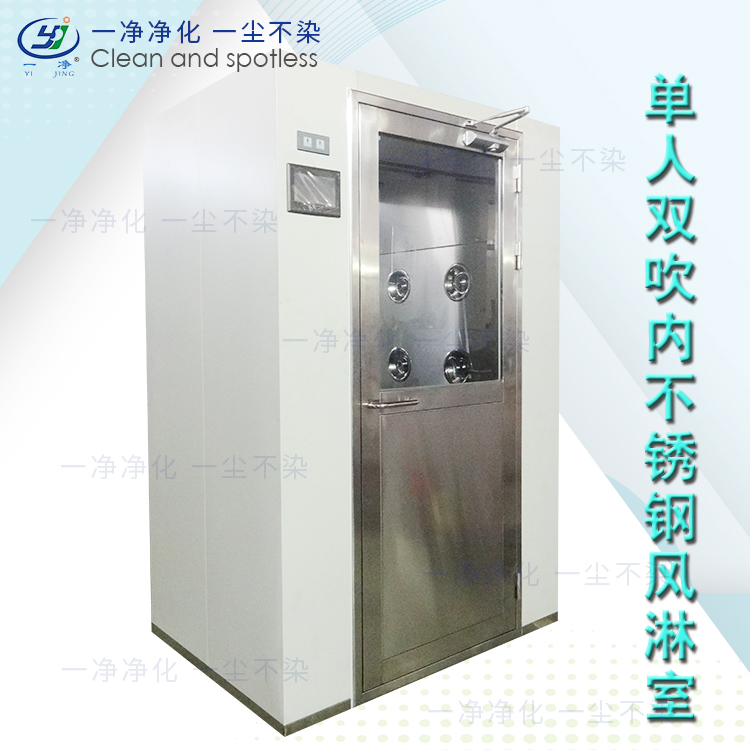

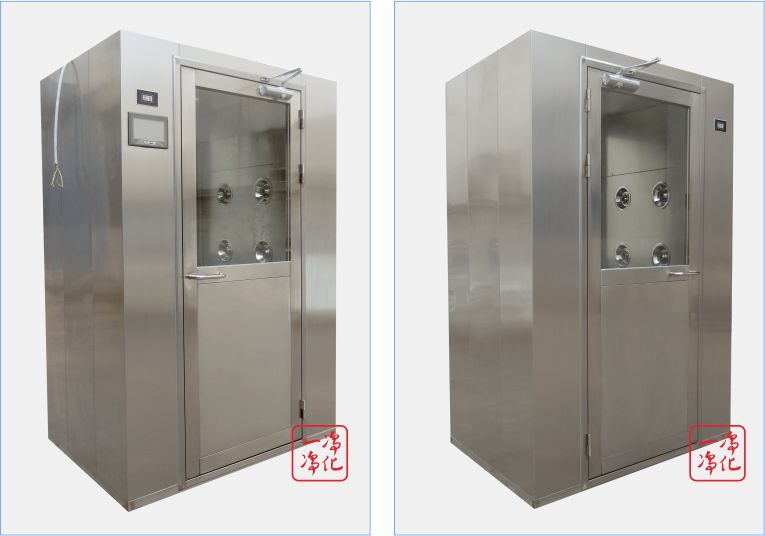

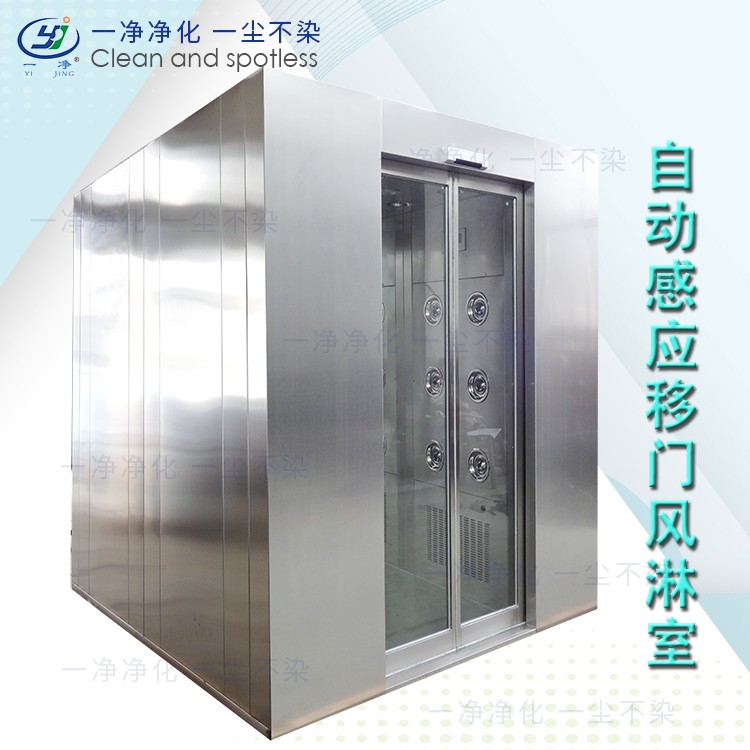

Air Shower Manufacturer in Wuxi, YijinAir Shower RoomPatented configuration. This product features automation and intelligence, made entirely of stainless steel. It employs a 360-degree rotating nozzle interlock control, a color 7-inch LCD touch control, and an infrared automatic sensing device, effectively ensuring human purification and preventing air pollution. It helps enterprise workspaces meet stringent dust-free purification standards, and is widely used in industries such as GMP, electronics, and food. Renowned companies like COFCO Group, PepsiCo, Yili, Nestle,旺旺, ZTE Group, China Petroleum, Sinopec, and Huiyuan have all used our products with positive feedback.

Air Shower Manufacturer Wuxi Yijin's Advantages

Advantage 1: Uniqueness

After 8 hours of non-use of the air shower room function, the sterilization feature will automatically activate; a replacement reminder will appear after a certain period of filter use, and the company will provide replacement services.

Advantage Two: Modernization

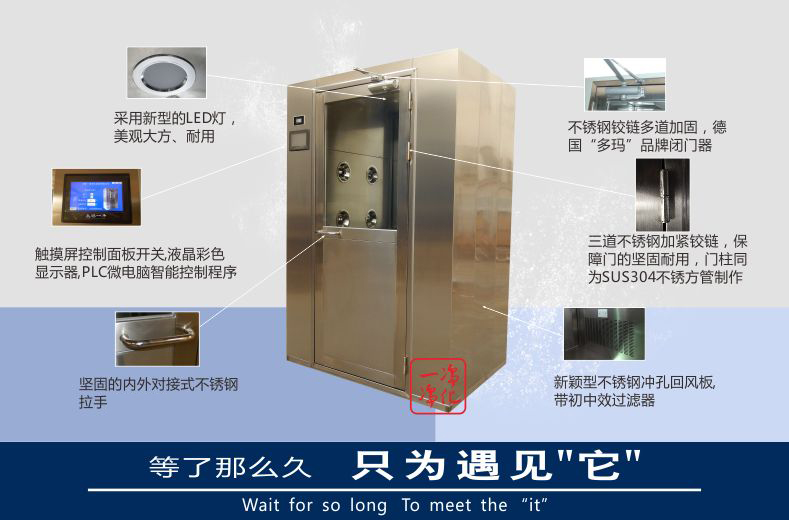

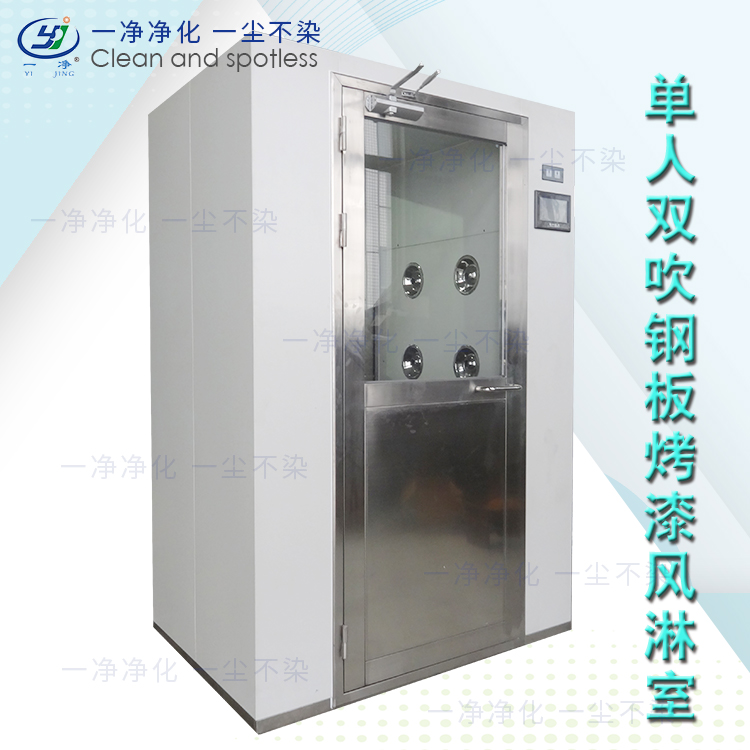

The air shower chamber is made with full sheet metal processing technology, featuring fully automatic computer-aided design laser cutting and CNC bending for one-time forming. The precision of the equipment's holes and miter cuts is high, and the flatness of the sheared and bent plates is excellent. The sheets are all made of SUS304 brushed or mirror-polished stainless steel, or cold-rolled steel plates with baked paint. The baking paint process follows the automotive spray painting process, and the surface is treated with acid washing, phosphatization, degreasing, rust removal, spraying, and high-temperature baking.

Advantage Three: Intelligentization

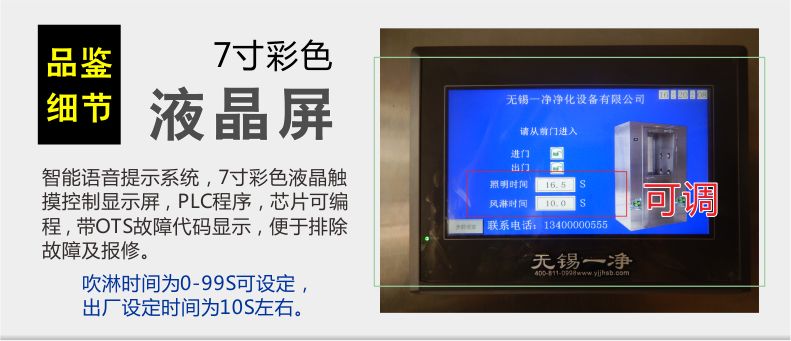

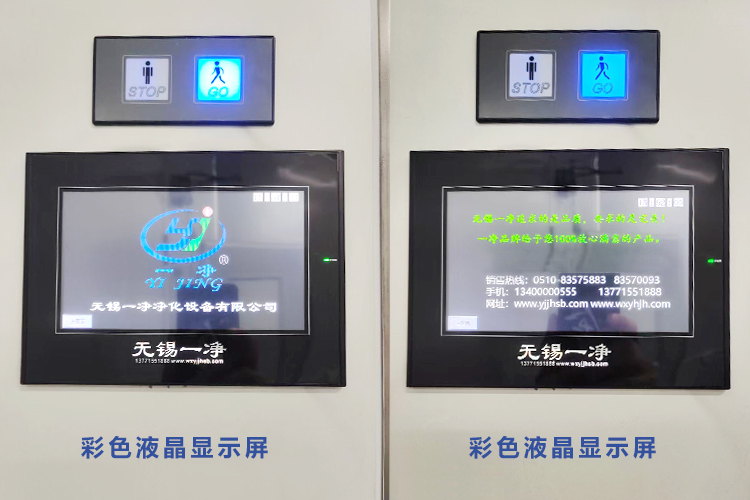

PLC Control System, 7-inch color LCD touch screen, built-in OTS fault code display system, intelligent and warm voice prompt function. The control system can be switched between manual and automatic control. Soft touch point control switches, keyboard with a hidden lock password protection to prevent employees from arbitrarily setting. Time-delayed lighting settings and screen protection settings are all intelligent and user-friendly.

Advantage Four: Branding

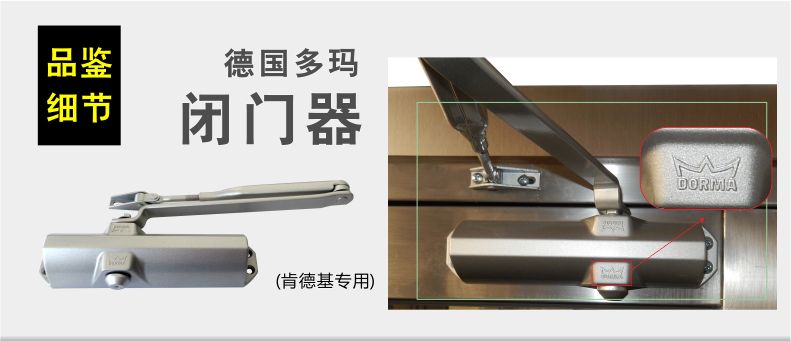

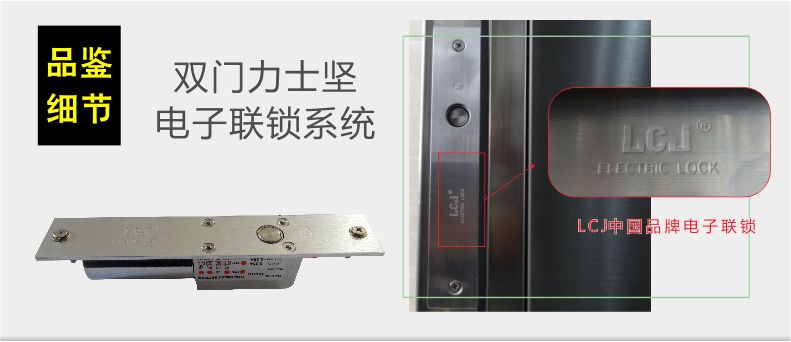

All electrical and electronic interlocks and door closer accessories for the air shower room are sourced from domestic and international renowned brands; branded accessories ensure the safe and stable operation of the air shower room. The German DOMA door closer, LCJ Lishen electronic interlock, and Japanese Omron photoelectric switch are used to ensure the stable and reliable operation of the sensor device. The air shower room configuration has obtained national patent approval.

Advantage Five: Flexibility

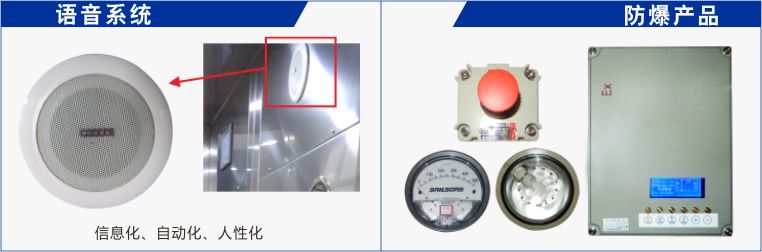

Disinfection function can be added according to customer requirements, offering UV and ozone sterilization options for selection; the cabinet material and dimensions can be customized to meet customer specifications; door opening configurations include card access, explosion-proof, and human sensing (finger sensing) systems.

One Clean Air Shower Room Patent Certificate

‍

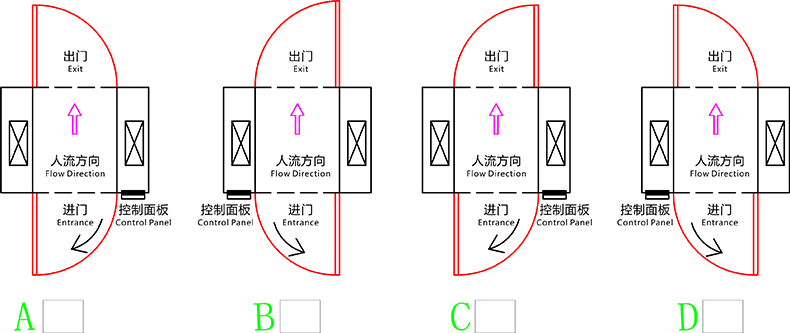

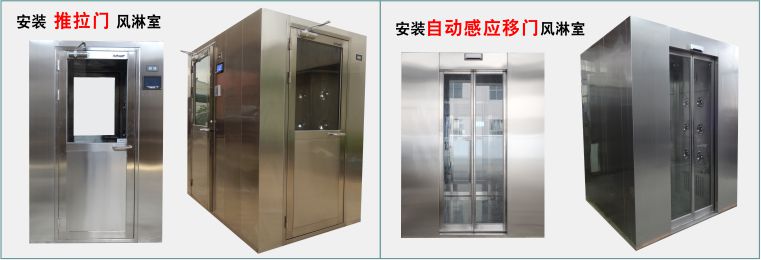

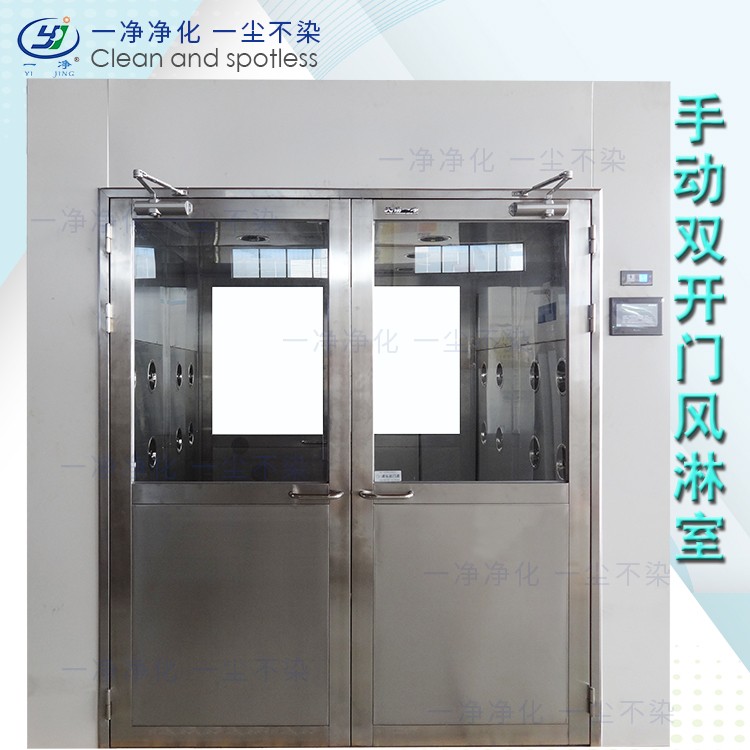

Door Opening Direction Selection:
