THE PRODUCT DESCRIPTION ►∣Product Description:

Chuan Yi Instrument Series Photochemical Reactor, also known as a photochemical reactor vessel, and a multifunctional photochemical reactor. Primarily used for studying photochemical reactions under conditions such as gaseous or liquid-phase media, fixed or flowing systems, UV or simulated visible light illumination, and the loading of TiO2 photocatalysts in reaction vessels. It offers functions like providing samples of reaction products and free radicals, determining reaction kinetics constants, and measuring quantum yields. Widely applied in fields such as chemical synthesis, environmental protection, and life sciences research.

THE MAIN CHARACTERISTICS

The photochemical reactor is equipped with an intelligent microcomputer control, allowing for real-time observation of current and voltage changes.

2. Imported light source controller with built-in converter, continuous power adjustable, high stability

The photochemical reactor features a step-by-step timing function and is easy to operate.

4. The interior wall of the reaction box is lined with radiation shielding material and equipped with an observation window.

5. Utilizes internal lighting source for full illumination, with lamp sources made of high-voltage and shock-resistant materials for long-lasting durability.

6. Equipped with an 8 (6/12 optional) magnetic stirrer to ensure thorough mixing and even illumination of the sample

7. Double-layer high/low-temperature quartz cold trap with cooling water circulation for maintaining reaction temperature

8. High-temperature protection system for photochemical reactor, with automatic power-off feature

9. The external structure of the cabinet is equipped with circulating water inlets and outlets, and internally features 2 dedicated power outlets for lighting and the mixing reactor.

TECHNICAL SPECIFICATIONS ►∣ Technical Parameters:

Model: CY-GHX-AC Multi-Test Control Temperature and Light Chemical Reaction Instrument

(1) Main Content

The light source power can be continuously adjusted in size.

2. Integrated light source controller, compatible with various light sources such as mercury lamps, xenon lamps, and metal halide lamps.

3. Mercury lamp power adjustment range: 0~1000W with continuous adjustment.

4. Xenon lamp power adjustable range: 0~1000W, continuously adjustable.

5. Halogen lamp power adjustable range: Continuously adjustable from 0~500W.

(II) Small Volume Reaction Section

Quartz tube specifications: 30ml, 50ml (or custom made).

2. Handles up to 8 samples (or custom orders) simultaneously.

3. The eight magnetic stirrer can simultaneously adjust the stirring speed of eight samples.

(3) Temperature Control Device

Cooling Water Recirculation System Refrigeration Capacity: >1000W

2. Temperature Control Range: -5°C to 100°C

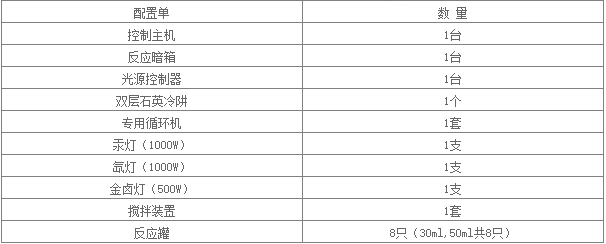

3. The cooling water circulation unit is equipped with casters and a bottom drain valve. Product configuration for small capacity photochemical reactor:
