THE PRODUCT DESCRIPTION ►∣Product Description:
Chuan Yi Instrument Series Photochemical Reactor, also known as a photochemical reactor or multifunctional photochemical reactor. Primarily used for studying photochemical reactions under conditions such as gaseous or liquid phase media, fixed or flowing systems, ultraviolet or simulated visible light illumination, and whether the reaction vessel is loaded with TiO2 photocatalyst. It offers functions such as providing samples of analyzed reaction products and free radicals, determining reaction kinetic constants, and measuring quantum yields. Widely applied in research fields including chemical synthesis, environmental protection, and life sciences.
THE MAIN CHARACTERISTICS
The photochemical reactor is equipped with an intelligent microcomputer control, allowing for real-time observation of current and voltage changes.
2. Import light source controller with built-in converter, continuous power adjustable, high stability
The photochemical reactor features a step-by-step timing function and is easy to operate.
4. The reaction box inner wall is lined with radiation shielding material and features an observation window.
5. Utilizes internal lighting source for optimal illumination, with bulbs made from high-voltage and shock-resistant materials for long-lasting durability.
6. Equipped with a high-power magnetic stirrer for thorough mixing and even illumination of the sample
7. Double-layer high/low temperature-resistant quartz cold trap, capable of circulating cooling water to maintain reaction temperature
8. High-temperature protection system for photochemical reactor, with automatic power-off feature
9. The external structure of the cabinet is equipped with circulating water inlets and outlets, and internally features 2 dedicated power outlets for lighting and stirrer reactors.
TECHNICAL SPECIFICATIONS ►∣Technical Parameters:
Model: CY-GHX-B High-Capacity Photochemical Reactor
(One) Main Section
The light source power can be continuously adjusted in size.
2. Integrated light source controller, compatible with mercury, xenon, metal halide, and other light sources.
3. Mercury lamp power adjustable range: Continuously adjustable from 0 to 1000W.
4. Xenon lamp power adjustable range: 0~1000W with continuous adjustment.
5. Halogen lamp power adjustable range: Continuously adjustable from 0~500W.
(II) Large Capacity Reaction Section
Glass reactors are available in various sizes such as 250ml, 500ml, 1000ml, etc. (or custom-made).
2. High-power magnetic stirrer ensures thorough mixing and even illumination of the sample.

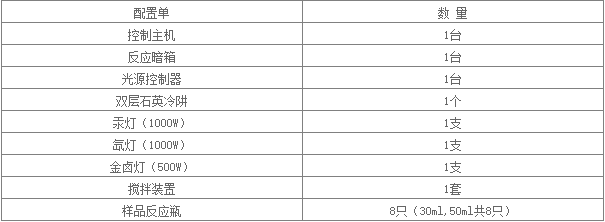

Product Configuration: Large Capacity Photochemical Reactor
