THE PRODUCT DESCRIPTION ►∣Product Description:

Chuanyi Instrument Series Photochemical Reactor, also known as a photochemical reactor or multifunctional photochemical reactor, is primarily used for studying photochemical reactions under various conditions, such as gaseous or liquid media, fixed or flowing systems, ultraviolet or simulated visible light, and the loading of TiO2 photo-catalysts in reaction vessels. It offers functions like providing samples of analyzed reaction products and free radicals, determining reaction kinetic constants, and measuring quantum yields. It is widely applied in fields such as chemical synthesis, environmental protection, and life sciences.

THE MAIN CHARACTERISTICS

The photochemical reactor features intelligent microcomputer control, allowing for real-time observation of current and voltage changes.

2. Imported light source controller with built-in converter, continuous power adjustable, high stability

The photochemical reactor features step-by-step timing functionality, with easy operation.

4. The reaction box inner wall is lined with radiation shielding material and features an observation window.

5. Utilizes internal illumination with full light exposure, featuring high-voltage and shock-resistant lamp materials for durability.

6. Equipped with an 8 (optional 6/12) magnetic stirrer to ensure thorough mixing and even illumination of the sample

7. Double-layer high/low-temperature quartz cold trap, capable of circulating cooling water to maintain reaction temperature

8. High-temperature protection system for photochemical reactor with automatic power-off feature

9. The exterior structure of the cabinet features circulating water inlets and outlets, and internally, there are 2 dedicated power outlets for lighting and stirrer reactors.

Technical Specifications ►∣ Technical Parameters:

Model: CY-GHX-BC High-Capacity Temperature-Controlled Photochemical Reactor

(1) Main Section

The light source power can be continuously adjusted in size.

2. Integrated light source controller, compatible with various light sources such as mercury lamps, xenon lamps, and metal halide lamps.

3. Mercury lamp power adjustable range: 0~1000W, continuously adjustable.

4. Xenon lamp power adjustable range: Continuously adjustable from 0 to 1000W.

5. Halogen lamp power adjustable range: Continuously adjustable from 0 to 500W.

(II) d Capacity Reaction Section

Glass reaction vessels are available in separate sizes of 250ml, 500ml, 1000ml, etc. (or custom-made).

2. High-power magnetic stirrer ensures thorough mixing and even illumination of the sample.

(3) Temperature Control Device

Cooling Water Recirculation System Cooling Capacity: >1000W

2. Temperature Range: -5°C to 100°C

3. The cooling water recirculation unit is equipped with casters and a bottom drain valve.

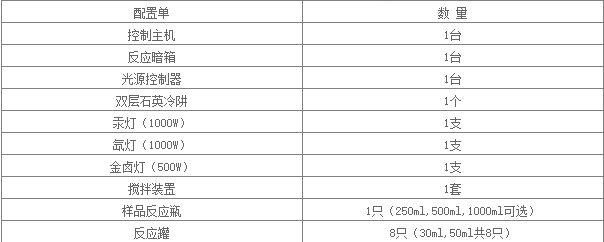

Product Configuration: Multi-tube Photochemical Reactor
