THE PRODUCT DESCRIPTION ►∣Product Description:

Chuan Yi Instrument Series Photochemical Reactor, also known as a photochemical reactor or multifunctional photochemical reactor. Mainly used for studying photochemical reactions under conditions such as gaseous or liquid phase media, fixed or flowing systems, ultraviolet or simulated visible light illumination, and whether the reaction vessel is loaded with TiO2 photocatalyst. It offers functions such as providing samples of analyzed reaction products and free radicals, determining reaction kinetic constants, and measuring quantum yields. Widely applied in research fields such as chemical synthesis, environmental protection, and life sciences.

THE MAIN CHARACTERISTICS

The photochemical reactor is equipped with an intelligent microcomputer control, allowing for real-time observation of current and voltage changes.

2. Imported light source controller with built-in converter, continuous power adjustable, high stability

The 3 photochemical reactor features step-by-step timing function, with easy operation.

4. The interior wall of the reaction box is lined with radiation shielding material and features an observation window.

5. Utilizes internal lighting source for full illumination, with lamp materials that are resistant to high voltage and vibration, ensuring durability.

6. The photochemical reactor is equipped with a high-power magnetic stirrer to ensure thorough mixing and exposure of the sample.

7. Double-layer high/low-temperature-resistant quartz cold trap, capable of circulating chilled water to maintain reaction temperature

8. High-temperature protection system for photochemical reactor, with automatic power-off function

9. The external structure of the cabinet features circulating water inlets and outlets, with two dedicated power outlets inside for lighting and stirrer reactors.

Technical Paper Specifications ►∣ Technical Parameters:

Model: CY-GHX-D Multi-functional Photochemical Reactor

(I) Main Content

The light source power can be continuously adjusted in size.

2. Integrated light source controller, compatible with various light sources such as mercury lamps, xenon lamps, and halogen lamps.

3. Mercury lamp power range: Continuously adjustable from 0 to 1000W.

4. Xenon lamp power adjustable range: 0~1000W with continuous adjustment.

5. Halogen lamp power adjustable range: Continuously adjustable from 0 to 500W.

(II) Small Capacity Reaction Section

Quartz tube specifications: 30ml, 50ml (or custom made).

2. Handles up to 8 samples (or custom orders) at a time.

3. The eight magnetic stirrers can synchronize the stirring speed of eight samples.

(3) Large-capacity Reaction Section

Vessel reactors in glass are available in various sizes such as 250ml, 500ml, 1000ml, etc. (or custom-made).

2. High-power strong magnetic stirrer ensures thorough mixing and even illumination of the sample.

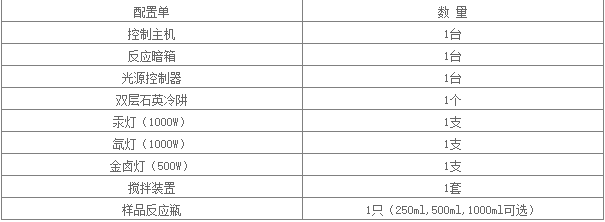

Multi-tube Photochemical Reactor Product Configuration:
