THE PRODUCT DESCRIPTION ►∣Product Description:
Chuan Yi Instrument Graphite Digestion System (also known as an Acid Displacement Unit or Urinary Iodine Digestion System) is suitable for industries such as food, medicine, agriculture, forestry, environmental protection, disease control, chemical, and biochemical sectors, as well as for universities and research institutions in the digestion and treatment of soil, feed, plants, seeds, ores, and biological tissues. Equipped with a large-screen LCD intelligent temperature control program, it utilizes far-infrared radiation graphite conduction heating technology and a microprocessor control platform for surround heating. It boasts quick temperature rise, uniform temperature, program control, complete digestion, and efficiency with ease. Parameters such as temperature and time can be freely set. The digestion is performed under atmospheric pressure using isostatic high-purity graphite, which is resistant to acids and alkalis and high temperatures. It is easy to operate and can handle large batches of samples. It can also be paired with a microwave digestion system for pre-treatment or acid displacement after digestion, making it an ideal matching product for analyzers like atomic absorption, atomic fluorescence, and ICP-AES.
THE MAIN CHARACTERISTICS
1. Energy-saving and Efficient: Utilizes a unique heating and insulation method, saving over 30% more energy than similar products. Capable of processing 6-60 samples at once (optional), significantly enhancing work efficiency.
2. Precise Temperature Control: Utilizes PID temperature control technology with fast heating and accuracy of ±0.1°C, and ±2.0°C temperature fluctuation per hole.
3. Features intelligent adjustment with self-tuning capability, offering precise temperature control and high safety for use.
4. Corrosion-Resistant Design: Graphite surface treated with Teflon, resistant to strong acids and alkalis, preventing corrosion of the machine's surface during the experimental process. Connection parts are made of corrosion-resistant materials, and the housing is coated with corrosion-resistant paint, capable of withstanding harsh corrosive environments.
5. Uniform Heating: The heating element is made of high-purity ultra-fine isostatic graphite with excellent thermal conductivity, ensuring good temperature uniformity among the digestion holes with minimal temperature differences between them.
6. Utilizes a double-layered inner shell suspended structure design, greatly enhancing the machine's heat dissipation and preventing overheating of the casing due to prolonged use.
7. The unit features multiple protections such as overvoltage, overcurrent, and overheating, as well as an over-temperature alarm function.
8. Optional exhaust gas neutralization system available, which eliminates acidic gases produced during the experiment through condensation, neutralization, and drying.
9. The design fully takes into account numerous humanized, automated, and safety features, making it a more secure and reliable choice with simpler operation, convenience, and speed, ideal for high-temperature digestion.

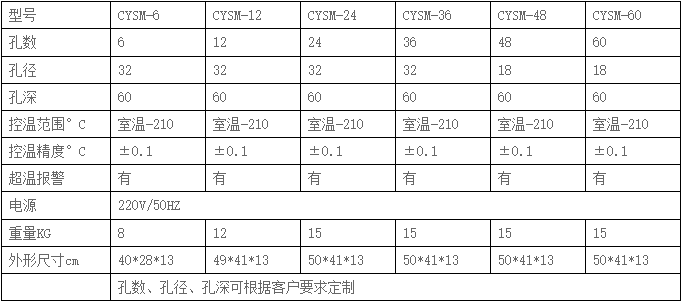

Technical Paper Specifications ►∣ Technical Parameters:
