The Chuan Yi Instrument Distillation Series includes universal integrated distillation units, SO2 distillation units, volatile phenol distillation units, and fluoride distillation units, fully meeting various distillation requirements. The fluoride distillation unit, also known as a steam distillation unit, removes fluorides from water by introducing steam into a solution containing (or sulfuric acid) through a pre-distillation method.

Fluoride Distillation Apparatus Key Features

The distillation unit can handle 6 samples, either simultaneously or independently, and can be custom-made for other numbers upon request.

2: The temperature in the steam distillation process has been rigorously tested and controlled, effectively eliminating interference and preventing violent boiling.

3: 7-inch large LCD touch screen control, quick and easy operation.

4: 6-hole distillation with independent control operation, digital temperature display, precise temperature control.

5: Utilizes dry high-purity aluminum module heating for quick heating and high temperature efficiency, enhancing distillation rate.

6. Various refrigeration system options available, including built-in compressor or chilled water tank cooling.

7: Self-contained steam generator, with fast steam output and adjustable steam rate.

8: Equipped with an automatic water refilling function, it is safe, simple, convenient, and easy to operate.

9: Equipped with over-voltage, over-current, and leakage protection systems, high stability ensures extended lifespan.

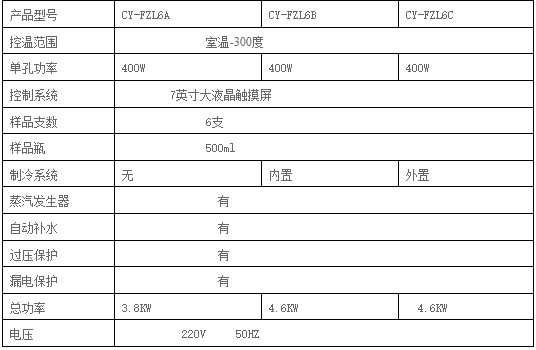

Technical Specifications:
