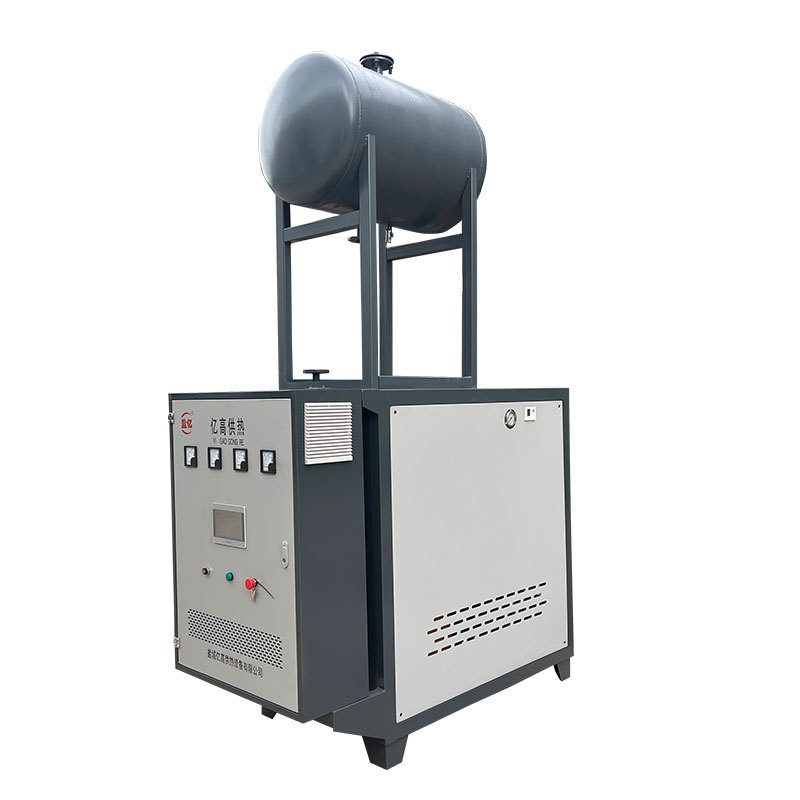

Working Principle and Features of the Molding Temperature Controller
The upper part of the equipment is equipped with a heat recovery unit, which heats the burner's intake air using waste heat from the exhaust gases.
★ Emission temperature does not exceed 110°C.
★ Maintain the burner intake temperature at 140℃ or above.
The equipment is equipped with a circulation system and an exhaust system, featuring a complete and independent operational system, with ease of installation, disassembly, and use.
Fuel gases are conveyed to our mold temperature machine via a pressure-reducing valve. They are then burned within the equipment to heat the conductive oil inside the oil pipes, which in turn supplies the heated oil to the equipment in use.
Detailed Technical Specifications
| Project Name | Unit | YY-8.5Q | YY-20Q | YY-25Q | YY-30Q | YY-40Q | YY-60Q |
| Rated Power | KW | 99 | 210 | 300 | 350 | 500 | 700 |
| Intake Temperature | ℃ | 130-170 | 130-170 | 130-170 | 130-170 | 130-170 | 130-170 |
| Exhaust Temperature | ℃ | 76-110 | 76-110 | 76-110 | 76-110 | 76-110 | 76-110 |
| Heat efficiency | % | 96 | 96 | 96 | 96 | 96 | 96 |
| Design Pressure | Mpa | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Temperature | ℃ | 320 | 320 | 320 | 320 | 320 | 320 |
| Body oil capacity | Kg | 110 | 200 | 250 | 300 | 350 | 500 |
| Oil Pump Power | Kw | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 |
| Oil Pump Flow Rate | m/h | 6 | 20 | 25 | 30 | 60 | 90 |
| Oil Pump Head Lift | m | 30 | 30 | 30 | 35 | 40 | 40 |
| Inner Tube Diameter | mm | 32 | 50 | 50 | 65 | 80 | 80 |
| Outer Diameter | mm | 32 | 50 | 50 | 80 | 80 | 80 |
| Outer diameter size | Length L/mm | 2000 | 2350 | 2350 | 2800 | 3000 | 4000 |
| Width: W/mm | 800 | 1050 | 1150 | 1350 | 1400 | 1550 | |
| High H/mm | 2600 | 2600 | 2600 | 2750 | 2750 | 2750 | |
| Equipment Weight | tons | 1.5 | 2 | 2.5 | 3.3 | 3.8 | 5 |
