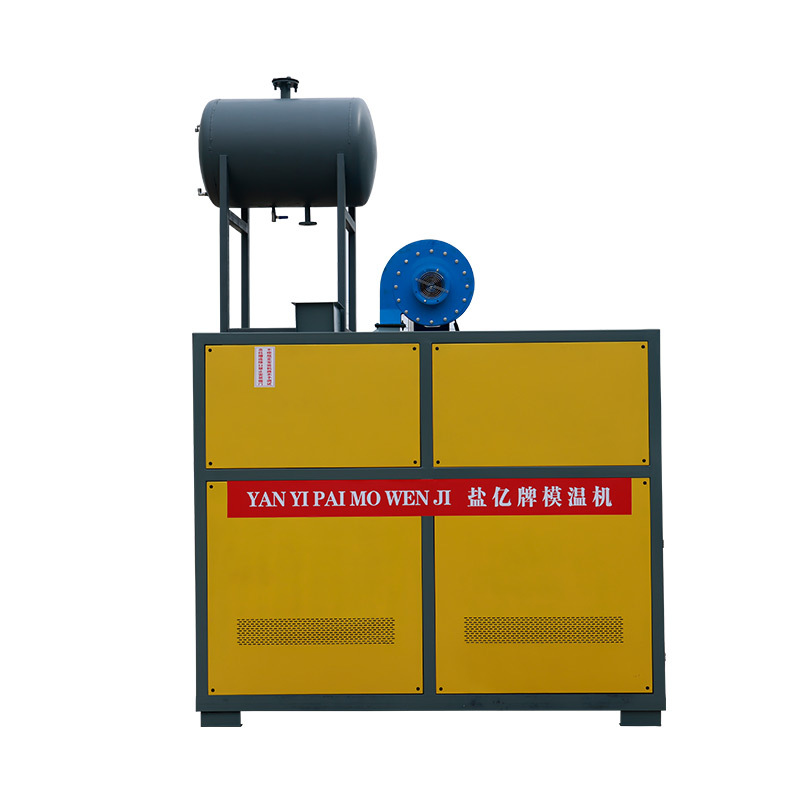

Principle and Features of the Mold Temperature Controller
The upper part of the equipment is equipped with a heat recovery unit, which heats the burner's intake air using waste heat from the exhaust gases.
★ Emission temperature does not exceed 110°℃.
★ Ensure the burner intake temperature is not below 140°C.
The equipment is equipped with a recirculation system and an exhaust system, featuring a complete and independent operational system, which is easy to install, dismantle, and use.
Fuel gases are transported to our mold temperature machine via a pressure-reducing valve. They are burned within the equipment to heat the internal oil pipes, and the heat-conducting oil then supplies the heated equipment.
Detailed Technical Specifications
| Project Name | Unit | YY-8.5Q | YY-20Q | YY-25Q | YY-30Q | YY-40Q | YY-60Q |
| Rated Power | KW | 99 | 210 | 300 | 350 | 500 | 700 |
| Intake Temperature | ℃ | 130-170 | 130-170 | 130-170 | 130-170 | 130-170 | 130-170 |
| Exhaust Temperature | ℃ | 76-110 | 76-110 | 76-110 | 76-110 | 76-110 | 76-110 |
| Thermal Efficiency | % | 96 | 96 | 96 | 96 | 96 | 96 |
| Design Pressure | Mpa | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| Temperature | ℃ | 320 | 320 | 320 | 320 | 320 | 320 |
| Total oil capacity | Kg | 110 | 200 | 250 | 300 | 350 | 500 |
| Oil Pump Power | Kw | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 |
| Oil Pump Flow Rate | m/h | 6 | 20 | 25 | 30 | 60 | 90 |
| Oil Pump Head Pressure | m | 30 | 30 | 30 | 35 | 40 | 40 |
| Pipe Inner Diameter | mm | 32 | 50 | 50 | 65 | 80 | 80 |
| Outer Tube Diameter | mm | 32 | 50 | 50 | 80 | 80 | 80 |
| Outer Diameter Size | Length L/mm | 2000 | 2350 | 2350 | 2800 | 3000 | 4000 |
| Width: W/mm | 800 | 1050 | 1150 | 1350 | 1400 | 1550 | |
| High H/mm | 2600 | 2600 | 2600 | 2750 | 2750 | 2750 | |
| Equipment Weight | ton | 1.5 | 2 | 2.5 | 3.3 | 3.8 | 5 |
