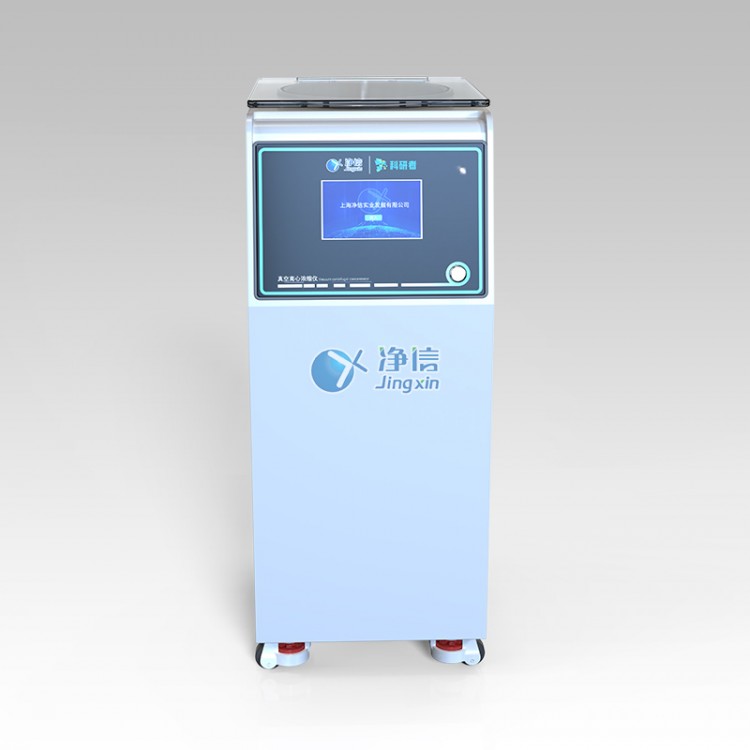

The all-in-one vertical (3-in-1) vacuum centrifugal concentration instrument features a cold trap and diaphragm pump integrated within the main unit, minimizing pipeline connections. It enhances concentration efficiency while saving lab space, making the main unit more height-optimized and the experimental operation more convenient.

The concentrator is used for sample preparation and analysis in fields such as chemistry, biology, and medicine. In the life sciences, vacuum centrifugal concentrators are commonly employed for separating and concentrating proteins, nucleic acids, and other biomolecules. Vacuum centrifugal concentration is a process that evaporates solvents to concentrate or dry biological (non-biological) samples. By combining centrifugal force, vacuum, and heating, the solvents in the sample are rapidly evaporated, achieving the goal of centrifugal concentration, which facilitates subsequent analysis and testing in experiments.

Operating Principle:By reducing the pressure inside the cavity through vacuum pumping, the boiling point of the solvent is lowered. As the pressure decreases, the boiling point of the solution also decreases, so when the pressure reaches a certain level, the solution begins to boil. At the same time, the sample is continuously centrifuged to keep the solution collected at the bottom of the centrifuge tube, preventing sample contamination and loss due to boiling. Solvent vapors are condensed in the low-temperature cold trap, captured by it, and can protect the vacuum pump, extending its service life. Moreover, the sample is always kept in a low-temperature and vacuum environment, which can prevent the inactivation of heat-sensitive samples and sample oxidation.

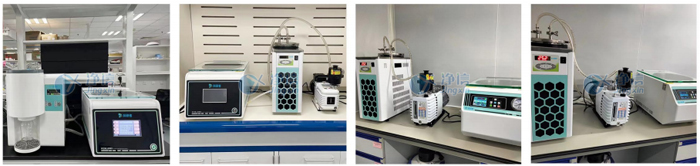

Product Real Photos:

Application Fields:DNA/RNA research, biochemical analysis, bioanalysis, immunoscreening, food safety, residue analysis, environmental testing, life sciences, molecular biology, academic research, forensic science, drug analysis, HPLC (High-Performance Liquid Chromatography), synthesis and separation of organic substrates, toxicological identification, forensic identification, SPE (Solid Phase Extraction), general laboratory concentration, etc.

Product Features:

Design with swivel castersEquipped with mobile casters for easy relocation of equipment as per experimental requirements.

Safety and Reliability:Automatic vacuum release upon power failure, ensuring sample safety.

Centrifugal imaging function:Convenient for real-time observation of sample concentration progress.

High-efficiency Concentration:Rapidly remove solvents using centrifugal force and vacuum conditions to enhance concentration efficiency.

Integrated Cold Trap Vacuum Pump:No pipeline connection required, for added convenience and ease.

Touchscreen Design:Touchscreen operation, capable of setting gradient operation.

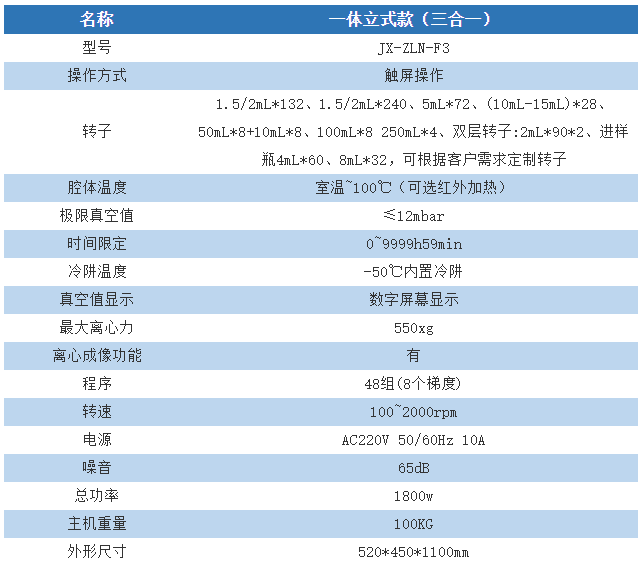

Technical Specifications:
