Touchscreen Low-Temperature Vacuum Centrifugal Concentrator, adjustable temperature range -10°C to 100°C (±0.5°C), featuring -10°C low temperature, enabling low-temperature concentration for better protection of sample activity, especially suitable for concentrating nucleic acids, proteins, intracellular active substances, and other samples. The entire unit is treated for corrosion resistance, ensuring safer sample concentration at low temperatures.
Centrifugal concentrators have become an essential piece of equipment in food, biological, and chemical laboratories. They are a process that evaporates solvents to concentrate or dry biological (non-biological) samples. By combining centrifugal force, vacuum, and heating, the solvents in the samples are rapidly evaporated, achieving the goal of concentrating the samples. The Jinxin Cryogenic Vacuum Centrifugal Concentrator is fully anti-corrosion treated, offers low-temperature concentration, and ensures sample safety. It is widely used in protein and molecular structure experiments.
Principle:By reducing the pressure inside the cavity through vacuum extraction, the boiling point of the solvent is lowered. As the pressure decreases, the boiling point of the solution follows suit, causing the solution to start boiling when the pressure reaches a certain level. Simultaneously, the sample is continuously centrifuged, ensuring the solution is collected at the bottom of the centrifuge tube, thereby avoiding contamination and loss due to boiling. Solvent vapor is liquefied as it passes through a low-temperature cold trap, captured by the trap, which protects the vacuum pump and extends its service life. Moreover, the sample remains in a low-temperature and vacuum environment, preventing inactivation and oxidation of heat-sensitive samples.

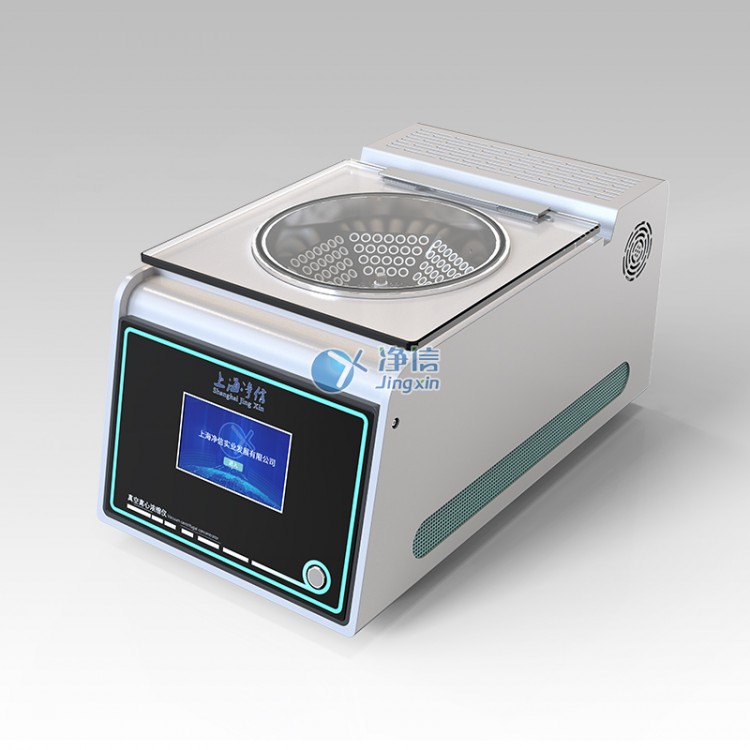

Product Real Photos:
Application Fields:DNA/RNA Research, Biochemistry, Bioanalysis, Immunoassay, Food Safety, Residue Analysis, Environmental Testing, Life Sciences, Molecular Biology, Academic Research, Forensic Science, Pharmaceutical Analysis, HPLC High-Performance Liquid Chromatography, Synthesis and Separation of Organic Substrates, Toxicology Identification, Forensic Identification, SPE Solid Phase Extraction, General Laboratory Concentration
Product Features:
Low-temperature ConcentrationOperating at low temperatures preserves sample viability, avoiding damage.
Safe and reliable:Automatic vacuum release upon power failure to safeguard sample integrity.
Centrifugal imaging function:Convenient for real-time observation of sample concentration progress.
High-efficiency Concentrate:Rapidly remove solvents using centrifugal force and vacuum conditions to enhance concentration efficiency.
Intelligent Anti-Ventilation Boiling TechnologyVacuum delay start, centrifugal separation first, then vacuum extraction.
Touchscreen Design:Touchscreen operation, capable of setting gradient operation.

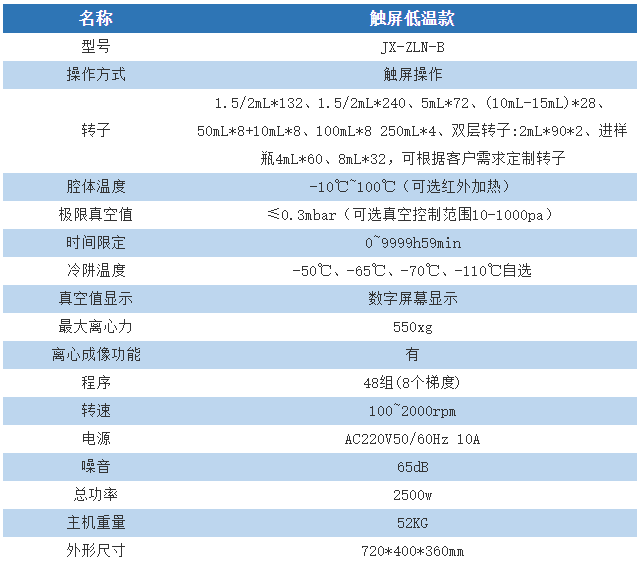

Technical Specifications:
