Brand Features:
One, boasts a wealth of experimental data, with the SCI paper search revealing that the brand's products have been used in over 1,184 articles.
Section II: Focused on the research and development of pre-treatment products for samples.
Three, the main shaft diameter of the center motion is not less than 10mm. We are a genuine manufacturer, not just a simple OEM branding factory.
Four, boasting a robust professional after-sales service team with offices nationwide, we can provide contact information for our technicians. In case of quality issues, we offer a 24-hour response.
Five, possesses the capability for continuous research and development, and product upgrades; please list several generations of product updates and iterations as proof.
Six, we can offer a variety of grinding solution samples with different types to meet the needs of subsequent experiments. For example, planetary, horizontal, vertical up-down, three-dimensional motion, three-dimensional centrifugal motion, cyclone, disk, and cyclone grinding solutions with various motion methods.
New Product Features:

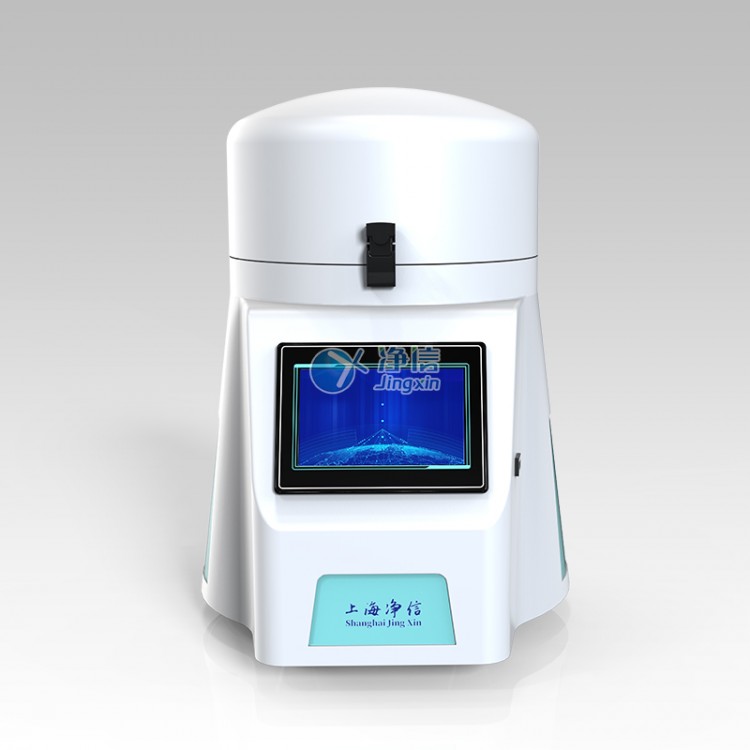

The new generation JXSTPRP® fully automatic tissue grinder, featuring imported motors, anti-corrosion materials, and enhanced motion shafts, offers multiple upgrades. Overall performance optimization, a more aesthetically pleasing design, and a unique grinding experience await you!
Product Overview:
The JXFSTPRP-L series全自动样品快速研磨仪 is a versatile, fast, and efficient multi-functional biological sample mill that integrates grinding, disintegration, and homogenization. It achieves sample grinding, disintegration, and homogenization through an 8-shaped three-dimensional high-speed vibration, facilitated by the knocking and impact of auxiliary grinding beads (such as glass beads, ceramic beads, steel beads, etc.), via vertical up and down and left and right movement.
The JXFSTPRP-L series is capable of processing various sizes and up to 384 grinding tubes simultaneously. Its high flexibility and efficiency allow users to grind, homogenize, or lyse soft and hard samples of animals, humans, plants, and microorganisms in approximately 30 seconds. The JXFSTPRP-L series is an excellent solution for a range of conventional experimental applications or specific projects.
Imported motors, corrosion-resistant materials, and enhanced motion shafts for various upgrades. Capable of quickly processing samples such as soil, plant and animal tissues/organisms, bacteria, yeast, fungi, spores, paleontological specimens, etc., through grinding, crushing, mixing, and cell wall disruption. The special three-in-one design and figure-8 oscillation mode offer superior grinding, ensuring more complete sample processing and enhanced stability.
Application Fields:
1. Suitable for grinding and crushing samples of various plant tissues, including roots, stems, leaves, flowers, fruits, and seeds.
2. Suitable for grinding and crushing samples from various animal tissues, including brain, heart, lung, stomach, liver, thymus, kidney, intestines, lymph nodes, muscle, and bone.
3. Grinding and crushing for samples of fungi, bacteria, including yeast and Escherichia coli.
4. Suitable for grinding and crushing samples of plastics, polymers including PE, PS, textiles, resins, etc.
5. Suitable for grinding and crushing volatile samples, including coal, oil shale, wax products, etc.
6. Suitable for grinding and crushing samples of various foods, tablets, etc.
7. Suitable for criminal investigation and judicial purposes, including the grinding and crushing of samples such as hair and bone.
8. Grinding and crushing for samples of environmental protection systems, chlorophyll A, soil, etc.
Grinding Effect Comparison Image:
Product Features:
1. Versatile Grinder:Change to different hosts and adapters, capable of handling up to 384 tubes.
2. High safety level:Samples operate within a sealed, single-use grinding tube, ensuring the safety of the operator.
3. Zero wasteSamples operate in a sealed, disposable grinding tube, ensuring no sample is wasted, in and out as originally.
4. High level of automationOne-click start, wait for results.
High Stability:Features a lid protector, built-in noise shield and adapter cover, with multiple protective measures.
6. Easy to operate:One twist secures the adapter.
7. Enhanced Efficiency:Enhanced JXFSTPRP, featuring imported parts authorized by Germany's IBIDI, offers superior performance.

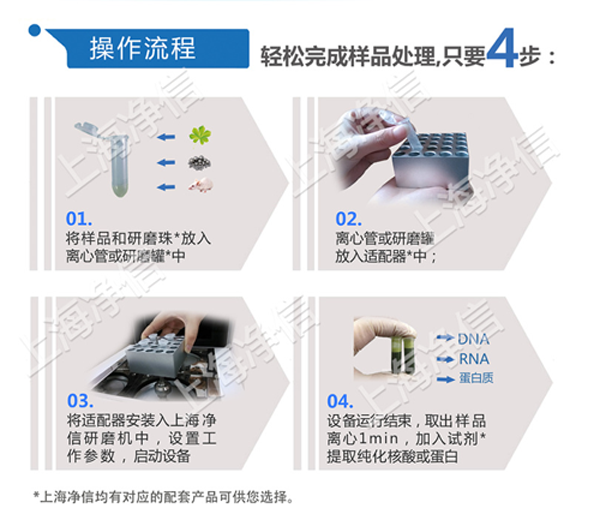

Operation Steps:

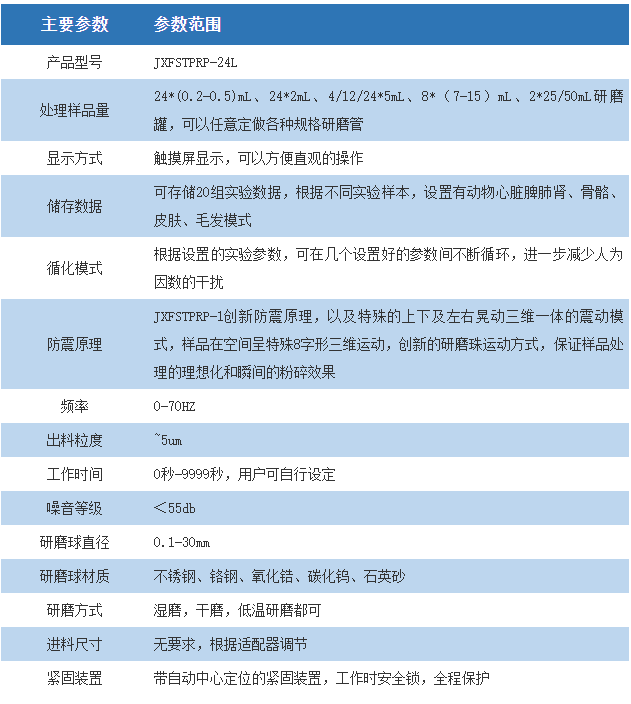

Technical Specifications:
* Can be upgraded to ultra-low temperature liquid nitrogen freezing or equipped with an air cooling unit, achieving low or ultra-low temperature. The flow of liquid nitrogen can be controlled, and it can be refilled at any time and in any manner during operation.
Automatic Sample Rapid MillBasic Configuration:
1. One Main Unit: One JXFSTPRP-24L® Main Unit
2. Adapters: Two sets of 2ml adapters (with cooling function)
3. Grinding Tube: 1 pack of grinding tubes
4. Grinding Balls: One bottle each of alloy steel and zirconia grinding balls
Cautionary Notes:
1. Instruments should be stored in a dry, well-ventilated environment.
2. Operating voltage for the instrument is 220V.
3. When using liquid nitrogen, proper protective measures should be taken to prevent frostbite.
4. Secure the adapter before starting the grinding, tighten the vertical positioning screw, and fasten the safety lock securely.
5. Place samples as symmetrical as possible to ensure balanced force during grinding.
6. After grinding is complete, please turn off the power and reset the safety lock.
7. Regularly clean the adapters to prevent corrosion from residual medications or samples.
