Brand Features:
One, boasts a vast array of experimental data; SCI paper searches indicate that the brand's products have been referenced in over 1,184 articles.
Two, focused on the research and development of pre-processing products for samples.
Three, the main shaft diameter of the center motion is not less than 10mm. We are the genuine manufacturer, not just a simple OEM labeling factory.
Four, boasts a robust professional after-sales service team, with offices nationwide, providing contact information for technicians, and offering a 24-hour response to any quality issues.
Five, possesses the capability for continuous R&D and product upgrades, and can list several generations of product updates and iterations as proof.
Six, we can offer various sample grinding solutions with different types to meet the needs of subsequent experiments. For example, options include planetary, horizontal, vertical up and down, three-dimensional motion, three-dimensional centrifugal motion, vortex, disc, and vortex motion grinding solutions.
New Product Features:

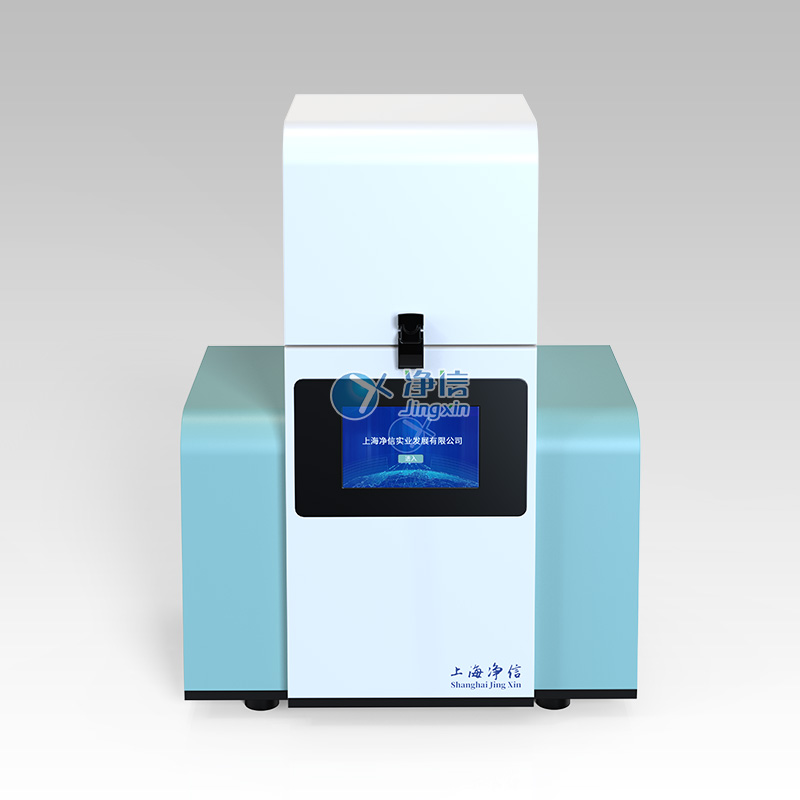

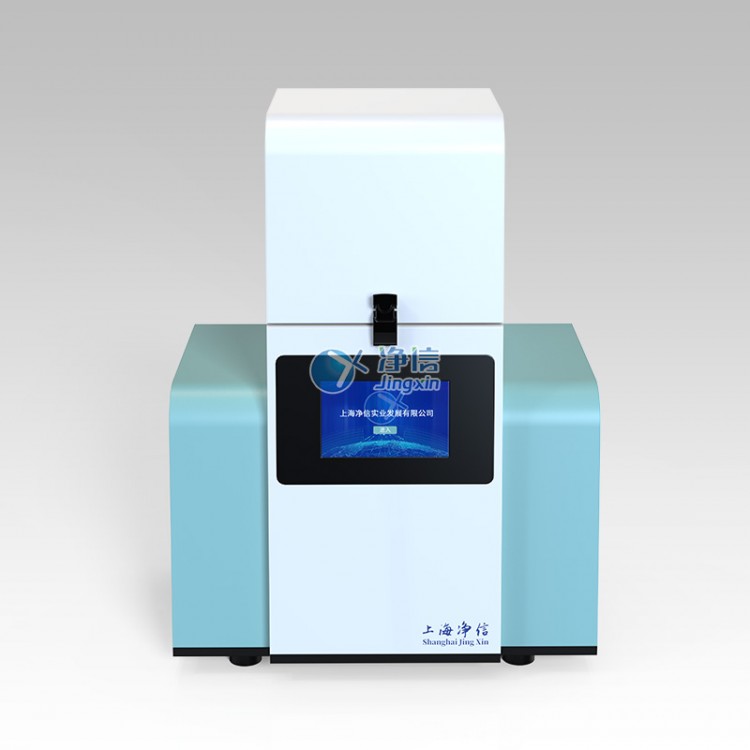

The latest generation Tissuelyser® tissue grinder, featuring imported motors, anti-corrosion materials, and an enhanced motion shaft for various upgrades. Fully optimized performance, a more aesthetically pleasing design, and a unique grinding experience!
Product Overview:
The Tissuelyser® tissue homogenizer from Shanghai Netshine® is a special, rapid, high-efficiency, multi-tube consistent system. It is capable of extracting and purifying the original DNA, RNA, and proteins from various sources, including soil, plant and animal tissues/organisms, bacteria, yeast, fungi, spores, paleontological specimens, and more.

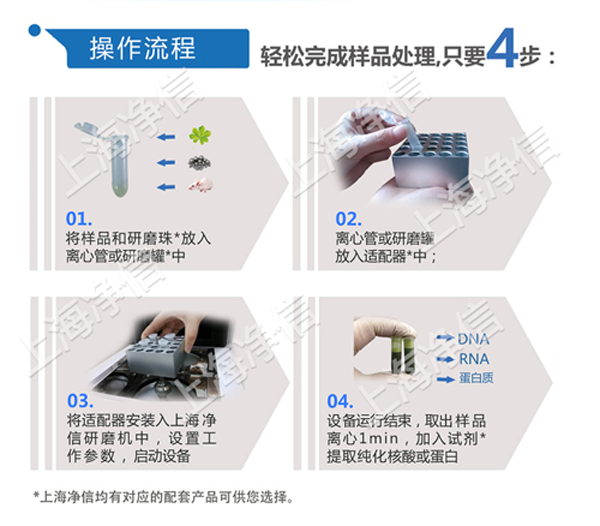

Place the sample and grinding balls into the mill (equipped with a grinding jar or centrifuge tube/adapter), under the action of high-frequency swinging, the grinding balls rapidly collide and rub against each other inside the mill, completing the sample's grinding, pulverizing, blending, and cell wall breaking in an extremely short time.
Muti-sample Organizing GrinderUsage:
1. Suitable for grinding and crushing samples of various plant tissues, including roots, stems, leaves, flowers, fruits, and seeds.
2. Applicable for grinding and crushing samples from various animal tissues, including brain, heart, lungs, stomach, liver, thymus, kidneys, intestines, lymph nodes, muscles, and bones.
3. Grinding and crushing suitable for samples of fungi, bacteria including yeast, E. coli, etc.
4. Suitable for grinding and crushing of food and pharmaceuticals.
5. Suitable for grinding and crushing volatile samples such as coal, oil shale, wax products, etc.
6. Grinding and crushing for plastic, polymers such as PE, PS, textiles, resins, and more.
Performance Features:
High volume operation, great results
Efficient and quick operation can grind up to 2x24, 2x48, or 4x96 samples in just one minute. Saves time and effort, with minimal batch-to-batch and within-batch variations. Extracted proteins have higher specific activity, and nucleic acid fragments are longer. The maximum speed reaches 70 Hz, equivalent to 2,100 rpm.
2. No cross-contamination
Samples are kept fully sealed during the breaking process, using disposable centrifuge tubes and beads. The samples are retained intact within the tube, preventing cross-contamination between samples and external contamination.
3. Easy to operate
3.1 Built-in program controller, allowing for the setting of parameters such as grinding time and the vibration frequency of the rotor.
3.2 User-friendly operation interface
4. Good safety and stability
4.1 Equipped with a lid protection device, utilizes a vertical oscillating method for more thorough grinding and better stability.
4.2 The instrument operates with noise levels below 55dB, causing no interference to other experiments or equipment.
5. Easy for low-temperature operation
When a low-temperature grinding environment is required, immerse the adapter containing the sample into liquid nitrogen for 1-2 minutes to cool, then remove it and quickly fix it to the main unit to begin grinding. No need for further freezing treatment, saving liquid nitrogen.
6. Good repeatability
The same sample setup within the same organization results in identical grinding effects; the short working time prevents the sample temperature from rising.
Performance specifications:
Can be upgraded to ultra-low temperature liquid nitrogen freezing or equipped with an air refrigeration unit, achieving low or ultra-low temperature. The flow rate of liquid nitrogen can be controlled, and refilling can be done at any time and in any manner during operation.
Basic Configuration:
1. One Unit of Host Machine: Tissuelyser® Host Machine
Adapter: 2ml adapter (with cooling) - two sets
3. Grinding Tube: 1 pack of grinding tubes
4. Grinding Balls: One bottle each of alloy steel and zirconia grinding balls
Cautionary Notes:
The instruments should be placed in a dry, well-ventilated environment.
2. The instrument operates at a voltage of 220V.
3. When using liquid nitrogen, appropriate protective measures should be taken to prevent frostbite.
4. Secure the adapter before starting the grinding, tighten the vertical positioning screw, and lock the safety clip.
5. Place samples as symmetrical as possible to ensure balanced force during grinding.
6. After grinding is complete, please turn off the power and reset the safety lock.
7. Regularly clean the adapters to prevent corrosion from residual drugs or samples.
