Brand Features:
One, boasts a vast array of experimental data; SCI paper searches indicate that the brand's products have been referenced in over 1,184 articles.
Two, focused on the research and development of pre-treatment products for samples.
Three, the main shaft diameter of the center motion is not less than 10mm. We are the genuine manufacturer, not just a simple OEM labeling factory.
Four, boasts a robust professional after-sales service team, with offices nationwide, providing contact information for technicians, and offering 24-hour response to any quality issues.
Five, possesses the capability for continuous research and development, and product upgrades. Please list several generations of product updates and iterations as proof.
Six, we can offer various sample grinding solutions with different methods to meet the needs of subsequent experiments. For instance, planetary, horizontal, vertical up-down, three-dimensional motion, three-dimensional centrifugal motion, cyclonic, disc, and cyclonic grinding methods, among others.
New Product Features:

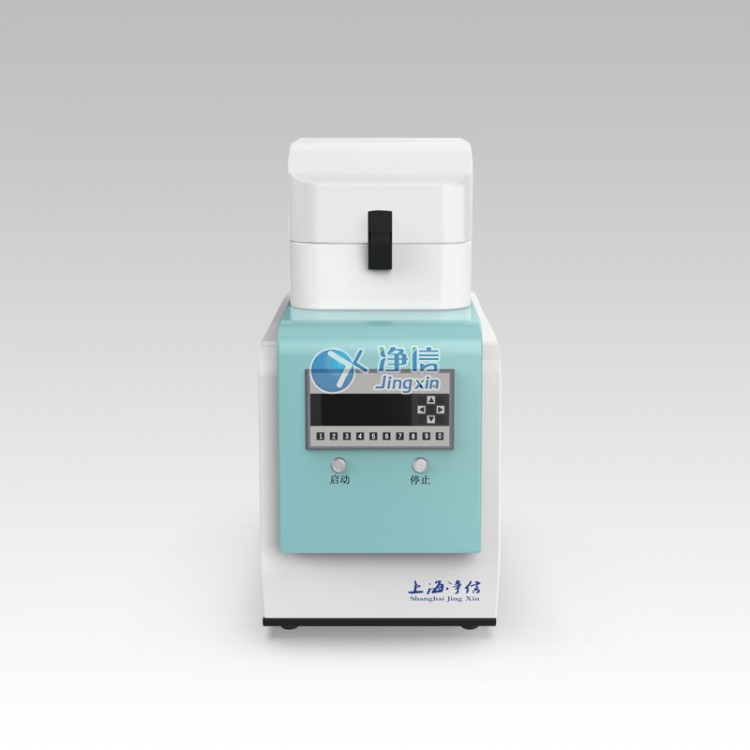

Next-generation Tissuelyser® tissue homogenizer, featuring imported motor, anti-corrosion material, and an enhanced motion shaft for various upgrades. Comprehensive performance optimization, a more attractive design, and a unique grinding experience!
Product Overview:
The Tissuelyser® tissue homogenizer from Shanghai Jingxin® is a special, rapid, high-efficiency, multi-tube consistent system. It can extract and purify the original DNA, RNA, and proteins from various sources, including soil, plant and animal tissues/organisms, bacteria, yeast, fungi, spores, paleontological specimens, etc.
Place the sample and grinding balls into the mill (equipped with a grinding pot or centrifuge tube/adapter), under the action of high-frequency oscillation, the grinding balls collide and rub against each other at high speed within the mill, completing the sample's grinding, crushing, blending, and cell wall disruption in an extremely short time.
Product Application:
1. Suitable for grinding and crushing various plant tissues including roots, stems, leaves, flowers, fruits, and seeds.
2. Suitable for grinding and crushing samples from various animal tissues, including brain, heart, lung, stomach, liver, thymus, kidney, intestines, lymph nodes, muscle, and bone.
3. Suitable for grinding and crushing samples of fungi, bacteria, including yeast, E. coli, etc.
4. Suitable for grinding and crushing of food and pharmaceuticals.
5. Suitable for grinding and crushing volatile samples such as coal, oil shale, wax products, etc.
6. Suitable for grinding and crushing samples of plastics, polymers including PE, PS, textiles, resins, etc.
Diverse Sample Organizing MillPerformance features:
High volume operations, excellent results.
Efficiently grinding up to 2x24, 2x48, or 4x96 samples in just one minute. Saves time and effort, with minimal batch-to-batch variations, higher protein extraction activity, and longer nucleic acid fragments. The maximum speed reaches 70 Hz, equivalent to 2,100 rotations per minute.
2. No cross-contamination
Sample tubes remain fully sealed during the crushing process, utilizing disposable centrifuge tubes and beads. The samples are kept intact within the tube, preventing cross-contamination between samples and external contamination.
3. Easy to operate
3.1 Built-in program controller, allowing for the setting of parameters such as grinding time and the vibration frequency of the rotor.
3.2 User-friendly operation interface
4. Good safety and stability
4.1 Equipped with a lid protection device, utilizing vertical oscillation for more thorough grinding and enhanced stability.
4.2 The instrument operates with noise below 55dB, causing no interference to other experiments or equipment.
5. Easy for low-temperature operation
When a low-temperature grinding environment is required, immerse the adapter containing the sample in liquid nitrogen for 1-2 minutes to cool. After removing it, quickly mount it onto the main unit to begin grinding. No need for further freezing, saving liquid nitrogen.
6. Good repeatability
Same program settings for the same organization samples yield identical grinding effects; short working time ensures sample temperature does not rise.

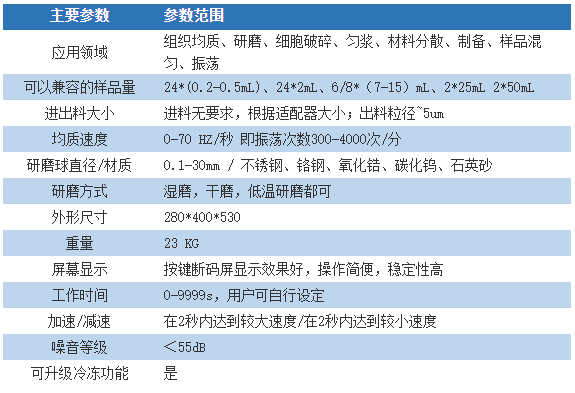

Performance Specifications:
Can be upgraded to ultra-low temperature liquid nitrogen freezing or equipped with an air cooling unit, achieving low or ultra-low temperature. The flow rate of liquid nitrogen can be controlled, and it can be refilled at any time and in any manner during the operation.
Basic Configuration:
1. One Main Unit: Tissuelyser® Main Unit
2. Adapters: 2ml adapter (with cooling) - two sets
Grinding Tube: 1 pack of grinding tubes
4. Grinding Balls: One bottle each of alloy steel and zirconia grinding balls
