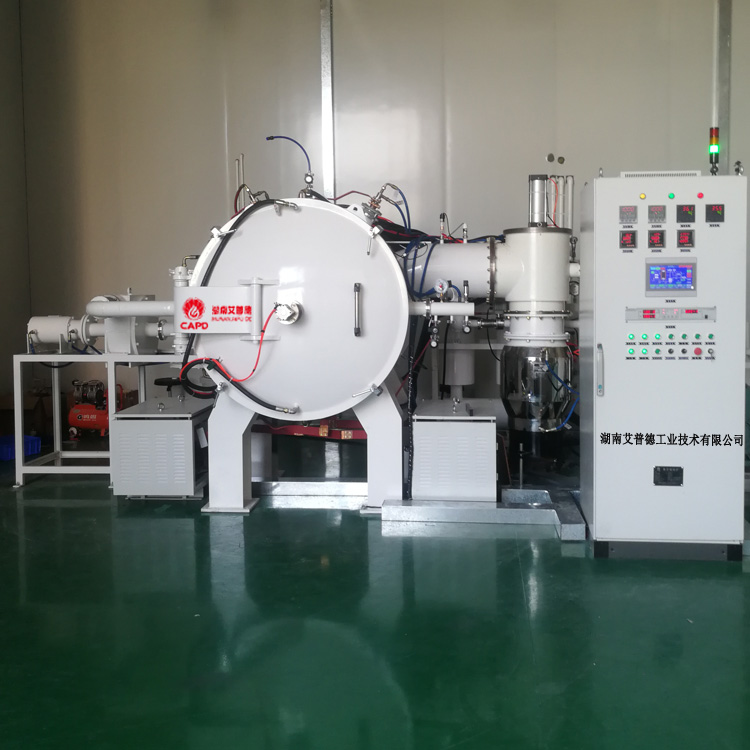

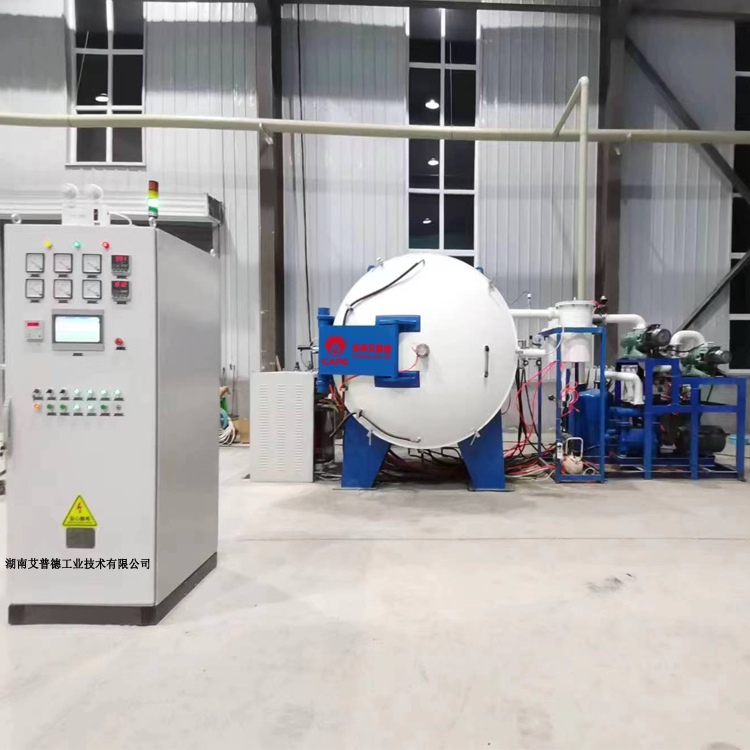

Vacuum Sintering Furnace

● Vacuum Sintering Furnace Application Fields:

Vacuum sintering furnaces are primarily used for the vacuum reaction sintering of materials such as tungsten alloys, silicon carbide, molybdenum alloys, titanium alloys, and hard alloys, as well as carbon-based materials.

● Main Configuration of Vacuum Sintering Furnace:

1. Furnace door: Hinged swivel; Manual locking/automatic locking ring locking

2. Furnace Shell: Full carbon steel / Inner stainless steel / Full stainless steel

3. Furnace Core: Soft carbon felt + rigid composite felt / All rigid composite felt

4. Heater Material: Isostatic Graphite / Compression-Molded High Graphite

5. Furnace Body: Vertical/Horizontal

6. Air Path Control: Volume/Flow Mass Meters; Manual Valves/Automatic Valves; Imported/National Made

7. Vacuum Pumps and Vacuum Gauges: Imported/ Domestic

8. Material Carts: Sliding Track / Forklift-Type

9. Control Panel: Simulated Screen/Touch Screen/Industrial Control Computer

10. PLC: Delta/Omron/Siemens/Mitsubishi

11. Temperature Control Instruments: Island Electric/Oceanic Land

12. Thermocouple: Type C (Tungsten sleeve/Molybdenum sleeve/Ceramic sleeve)

13. Data Recorders: Paperless Recorder / Paper Recorder; Imported / Domestic

14. Electrical Components: Chint/Schneider/Siemens/ABB

● Vacuum Sintering Furnace Technical Features:

The vacuum sintering furnace utilizes a unique furnace body structure and heater arrangement, ensuring excellent uniformity in the furnace temperature.

2. The vacuum sintering furnace features a special structural degreasing box with excellent sealing and complete degreasing, ensuring no contamination to the internal components.

3. The vacuum sintering furnace features flexible vacuum evacuation, vacuum sintering, micro-positive pressure sintering, differential pressure sintering, and micro-positive pressure degreasing capabilities.

4. The vacuum sintering furnace employs high-performance thermal insulation structures and materials, featuring excellent heat insulation in the furnace chamber, less heat storage, and is more energy-efficient than traditional designs.

5. The vacuum sintering furnace features a touch screen operation and centralized PLC control, offering simple operation and high reliability.

6. The vacuum sintering furnace features over-temperature and over-pressure alarm, mechanical automatic pressure protection, and interlock functions, ensuring high equipment safety.

7. The vacuum sintering furnace is equipped with features such as remote operation, remote fault diagnosis, and remote software updates.

● Vacuum Sintering Furnace Product Specifications:
