I. Product Application:

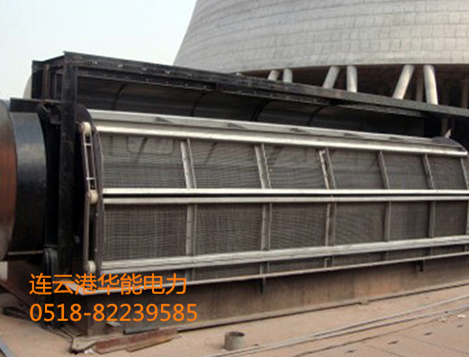

A single rotation screen is a crucial filtration and cleaning equipment in the once-through cooling water system of thermal power plants. With the increased pollution in rivers, lakes, seas, and oceans in recent years, it poses a severe threat to the safety of water intake. The rotating single screen produced by Huaneng Power in Lianyungang effectively intercepts and removes suspended and floating debris from water streams, such as aquatic plants, leaves, branches, fish and shrimp, white plastic pollutants, industrial and agricultural waste, and domestic refuse, ensuring the safety and economic operation of power plants. This product is also used in urban water supply, chemical industry, metallurgy, and urban wastewater treatment projects.

The working principle of the rotating screen is to drive the conveying mechanism through a reducer, which moves the debris screen along the guide rail, thereby lifting out any debris larger than the screen holes from the water surface and flushing it into the slag removal trough with pressure water for removal.

II. Product Structure Features:

A single rotation of the filter divides it into two types: front water inlet and side water inlet. The operation is available in manual and automatic control, with a depth capability up to 30m.

This series of products features a one-time use, frame-type rotating filter mesh with the following main characteristics:

Width typically ranges from 1 to 4 meters, depth is generally around 10 meters, with the deepest reaching up to 30 meters.

2. Utilize high-pressure water jet to wash away debris from the filter.

3. No传动 components underwater for easy maintenance and repair.

4. Operation control offers automatic water level differential control, automatic control based on time intervals, as well as manual control, allowing for flexible selection.

5. During actual operation, maintain a water level difference of less than 30cm between the filter's front and rear, with an alarm threshold typically at 100cm.

6. A single rotation of the filter screen can accommodate higher water flow for cleaning, boasting reliable operation and durability, making it the most widely used filter screen currently.

Section 4: Product Range and Ordering Information:

1. Range of Supplies

Mainframe components, guide rail components (or frame components), chain and sieve components, flushing pipe components, etc. Optional additional equipment includes water level sensing systems and automatic control devices, as per customer requirements.

2. Order Instructions

At the time of ordering, please provide the following information:

① One rotation of filter model and quantity.

② Molding Board Width

③ Submerged depth of the underwater portion

④ Water Source and Quality (Freshwater, Seawater)

⑤ Does it come with a water level gauge?

⑥ Designed flow rate for mesh water flow;

⑦ Normal water level, highest water level, and lowest water level before flooding in.

⑧ Inlet water chamber bottom elevation

Filter Mesh Installation Level Height

⑩ Lifespan Requirement
