Three-section operator console features and performance:

● Unique exterior structure design showcases the luxurious quality of the stand

● The three-section desk frames are all detachable and can be used independently.

● Panel A, B, rear display cover, front and rear single (double) doors that can be opened, with luxurious hydraulic support and high-strength rods, showcase the humanized design and ease of installation of the cabinet.

●The front (double) door is elevated from the ground by about 25mm, ensuring smooth and convenient door opening.

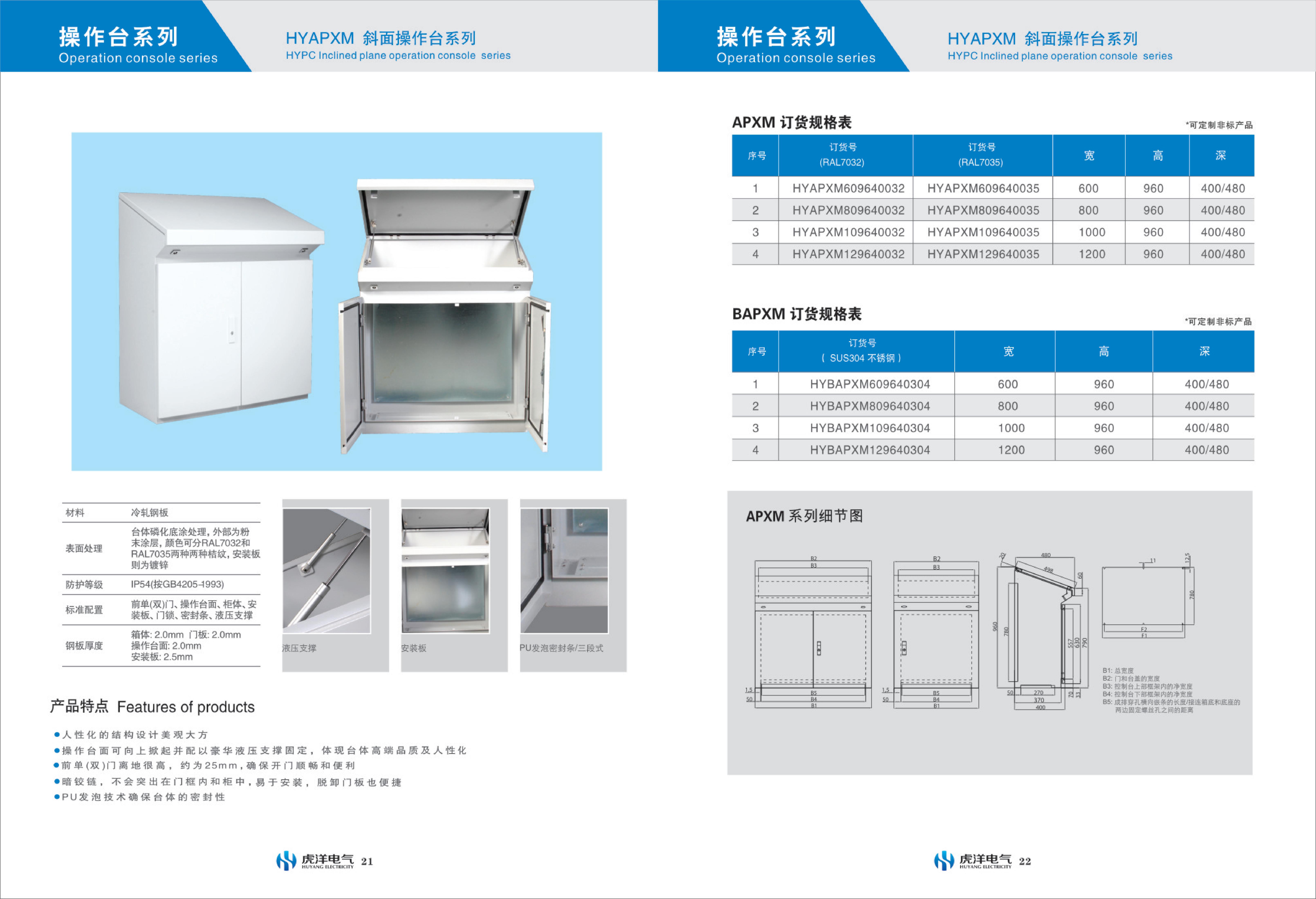

● Detailed dimensions of the three-section bench structure are shown in the drawings.

Material: Cold Rolled Steel Sheet

Surface Treatment: The base of the machine body is treated with phosphatizing, the exterior is powder coated, available in two colors RAL7032 and RAL7035 with two different textures, and the mounting plate is zinc-plated.

Protection Level: IP54 (in accordance with GB4205-1993)

Standard Configuration: Front (double) door, countertop, cabinet, mounting plate, door lock, sealing strip, hydraulic support

Steel plate thickness:

Case: 2.0mm; Door Panel: 2.0mm

Work Surface: 2.0mm

Installation Plate: 2.5mm
