Three-section workbench technology features and performance:

Unique外形结构设计 highlights the luxurious quality of the cabinet.

● Three-section desk bodies are all detachable and can be used independently.

● Panel A, B, rear display cover, front and rear (single/dual) doors can be opened, equipped with luxurious hydraulic support and high-strength pull rods, showcasing the humanized design of the cabinet and its ease of installation.

● The front (double) door is very high from the ground, approximately 25mm, ensuring smooth and convenient opening.

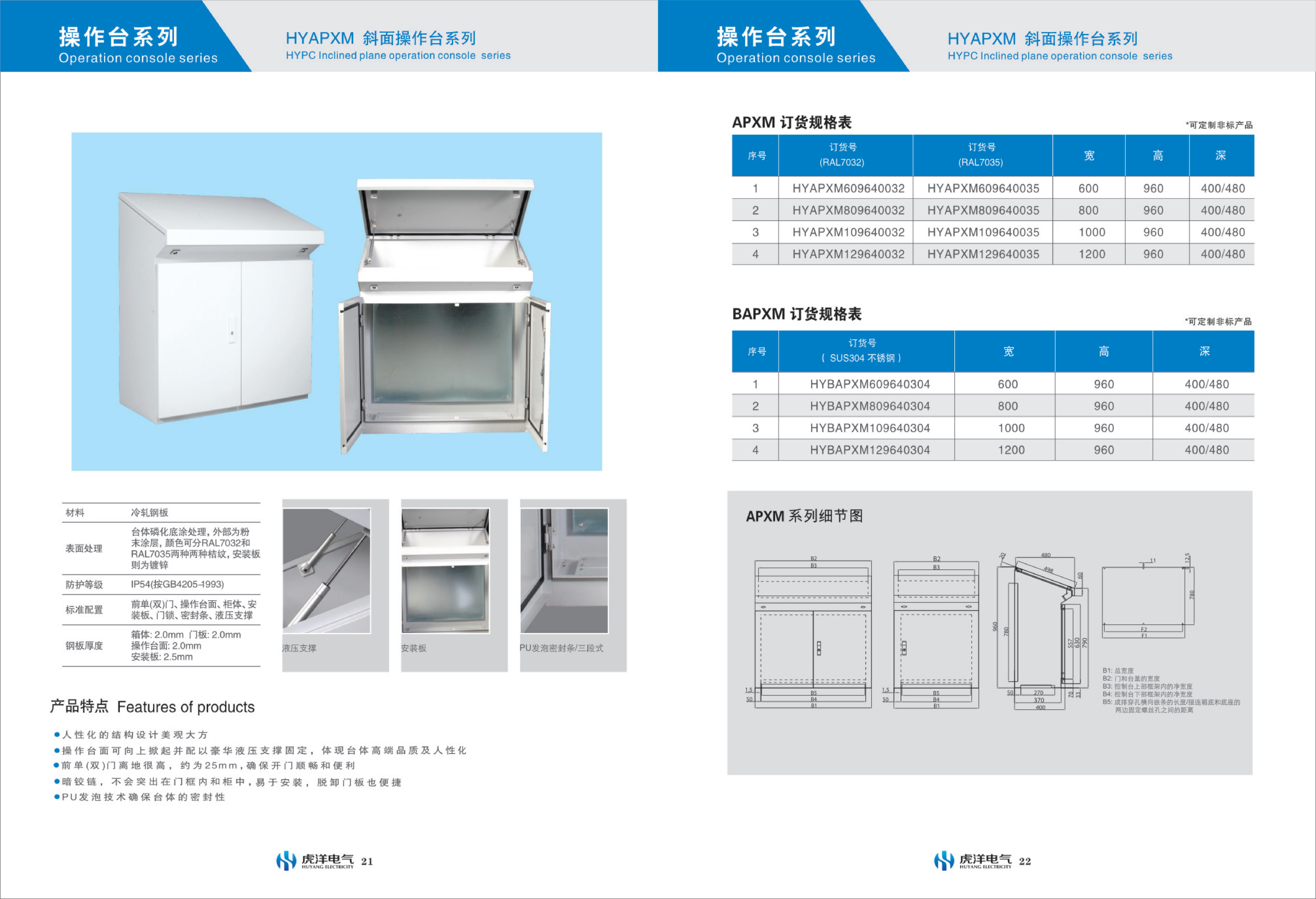

●Detailed dimensions of the three-section pedestal structure are illustrated in the drawings.

Material: Cold Rolled Steel Sheet

Surface Treatment: The base of the table body is treated with phosphate, the exterior is coated with powder paint, available in two colors: RAL7032 and RAL7035 with different textures, and the mounting plate is galvanized.

Protection Level: IP54 (According to GB4205-1993)

Standard Configuration: Front (double) door, worktop, cabinet, mounting plate, door lock, sealing strip, hydraulic support

Steel Plate Thickness:

Box: 2.0mm, Door panel: 2.0mm

Desk Surface: 2.0mm

Installation Plate: 2.5mm
