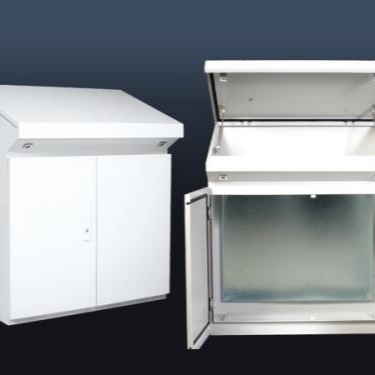

Three-section operator's console process features and performance:

● Unique shape and structure design showcases the luxurious quality of the stand.

● Three-section table bases are all detachable and can be used independently.

● Panel A, B, rear display cover, front and rear (single/dual) doors can be opened, equipped with luxurious hydraulic support and high-strength rods, showcasing the humanized design of the cabinet and its ease of installation.

● The front (double) door is elevated from the ground by approximately 25mm, ensuring smooth and convenient operation.

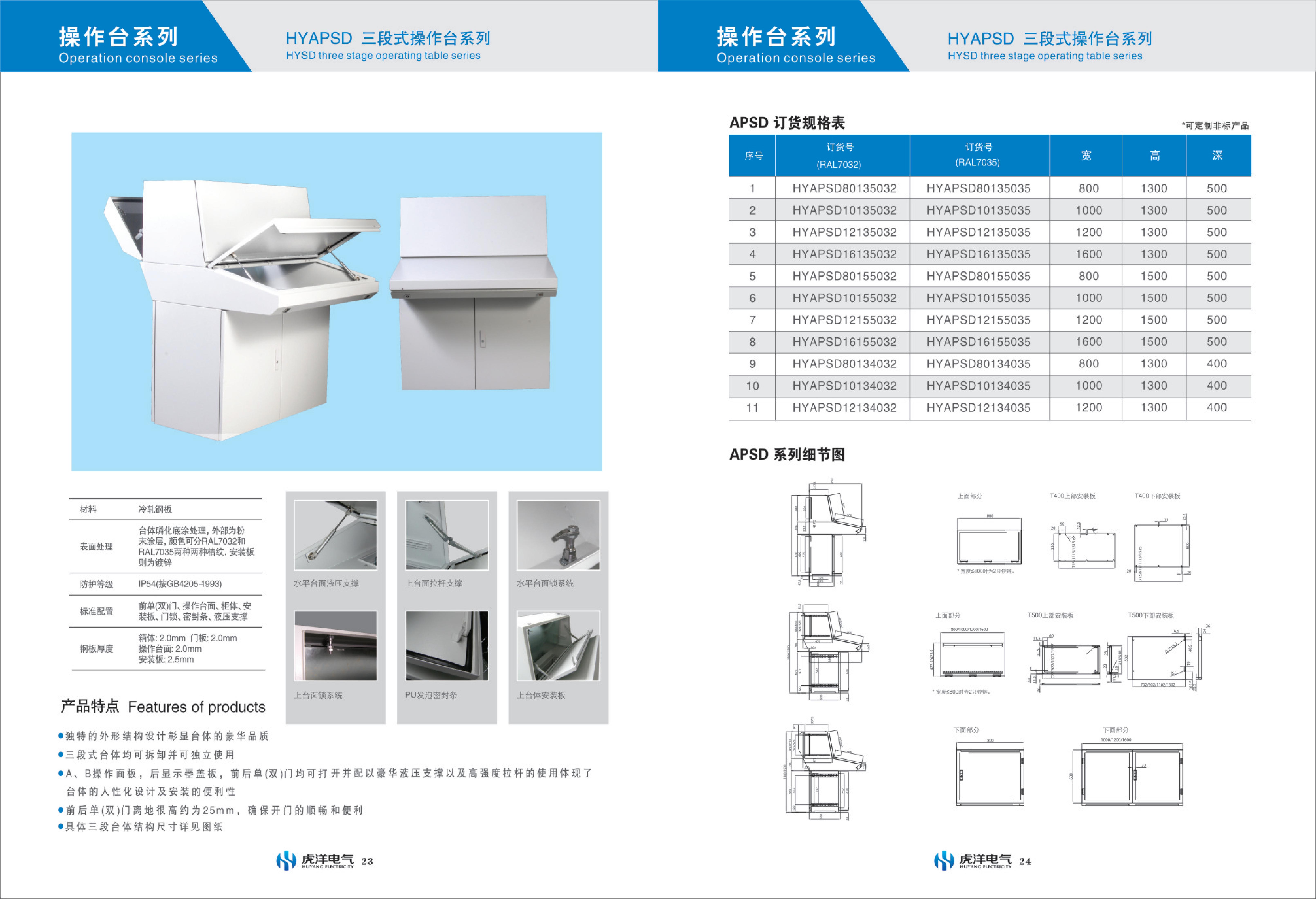

●Specific dimensions of the three-section bench structure are detailed in the drawings.

Material: Cold Rolled Steel Sheet

Surface Treatment: Base coated with phosphate on the body, powder coating on the exterior, available in two colors: RAL7032 and RAL7035, with two different textures; the mounting plate is galvanized.

Protection Grade: IP54 (as per GB4205-1993)

Standard Configuration: front (double) door, countertop, cabinet body, mounting plate, door lock, sealing strip, hydraulic support

Steel Plate Thickness:

Case: 2.0mm; Door Panel: 2.0mm

Desktop Surface: 2.0mm

Installation Plate: 2.5mm
