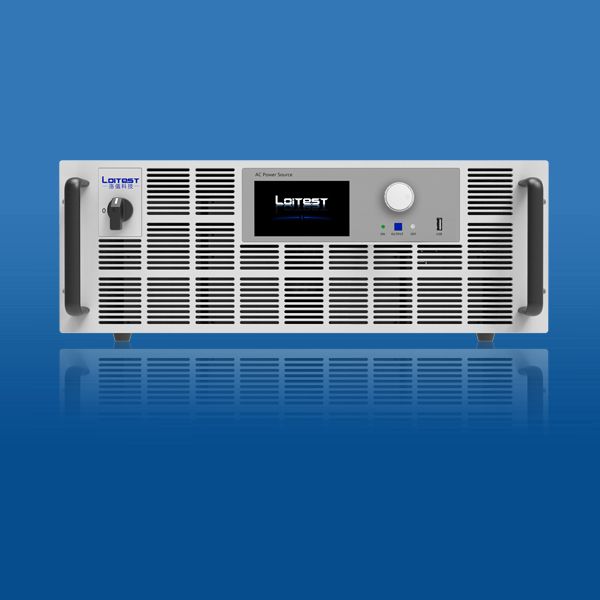

PAS 2000C series programmable AC power supplies feature ARM+FPGA digital control, instantaneous waveform control, and high-frequency pulse width modulation (SPWM) technologies, with a response time of 1mS, high output accuracy, and low waveform distortion. They offer ON/OFF test functions; designed with modular concepts, they are compact, lightweight, easy to operate, and offer great value for money. The touch screen allows for voltage, frequency, and time settings; an embedded intelligent PC monitoring system is provided, equipped with RS232, RS485, and TCP/IP network communication interfaces.

Key Features:
Voltage Range: 0~350V adjustable
Frequency Range: 1Hz - 1000Hz, Optional
■ Power Range: 0~90 KVA Available
Output Phase: 1φ2W+G
■ Features ON/OFF test function
Touchscreen Voltage, Frequency, and Time Settings
Provide embedded intelligent PC-based monitoring system
Response time up to 1ms
High output precision, low waveform distortion
Standard with RS232, RS485 communication interfaces
Modular design concept, compact in size and weight, easy to operate, and high cost-performance ratio
ARM+FPGA digital control, instantaneous waveform control, and high-frequency pulse-width modulation (PWM) technologies are employed.
