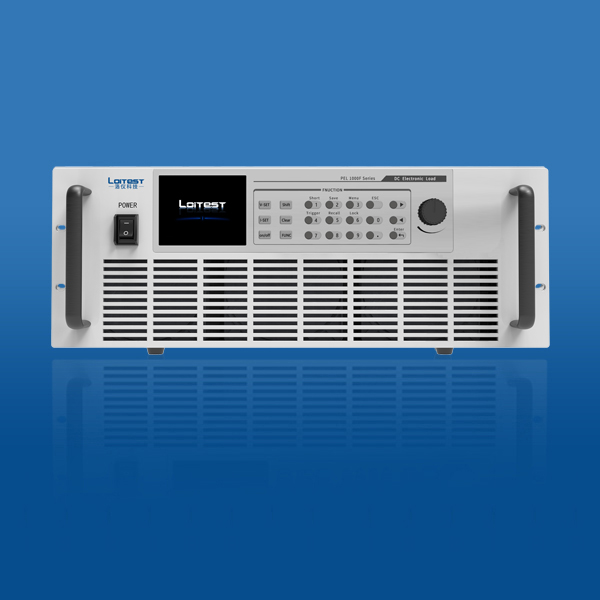

The PEL 1000E series high-power DC programmable electronic load boasts high power density, wide loading range, fast dynamic response, rich test functions, and high reliability. The series is available in three voltage specifications: 150V, 600V, and 1200V, with power ranging from 6kW to 60kW and a maximum current of up to 2400A per load. By paralleling, the maximum power can be expanded to 600kW. This series of loads offers various communication interfaces and protocols, combining desktop operation and system integration features, providing versatile solutions to meet customers' design and testing requirements.

Key Features:
Voltage Range: Selectable from 0~1200V
■ Current Range: 0~2400A available
Power Range: 0~60KW available
Voltage Accuracy: 0.05% + 0.05% F.S.
Current Accuracy: 0.025% + 0.025% F.S.
■ Sampling rate up to 500kHz
■ Up to 1kHz transmission voltage and current sampling data to the host computer
Supports master-slave parallel operation, power up to 600kW
■ Load modes CC, CV, CR, CP, CV+CC, CR+CC, CP+CC
Short-circuit simulation, power instantaneously amplified by a factor of 2
■ Time measurement, (Vpk±) measurement function
Multiple protection functions including OVP, OCP, OPP, OTP, etc.
Voltage Sampling Remote Compensation
Communication Interfaces: RS232, LAN, GPIB, RS485, CAN
■ Features OCP, OPP, LED simulation, load effect, battery internal resistance, and battery discharge test functions
