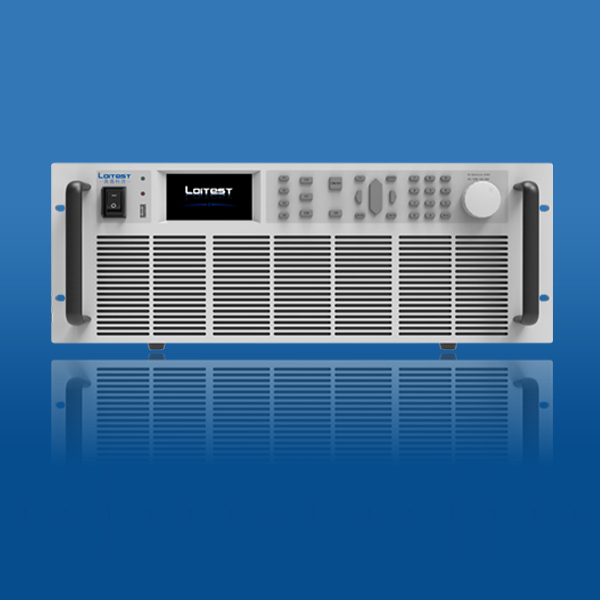

The PEL 1000E series high-power DC programmable electronic loads offer high power density, wide loading range, fast dynamic response, rich test functions, and high reliability. This series is available in three voltage specifications: 150V, 600V, and 1200V, with power ranging from 6kW to 60kW, and the maximum current of a single load reaching up to 2400A. With parallel operation, the maximum power can be expanded to 600kW. These loads provide various communication interfaces and protocols, combining desktop operation with system integration features. They offer versatile solutions to meet customers' design and testing requirements.

Key Features:
Voltage Range: 0~1200V available
■ Current Range: 0~2400A available
■ Power Range: 0~60KW Available
Voltage Accuracy: 0.05% + 0.05% F.S.
Current Accuracy: 0.025% + 0.025% F.S.
Sampling rate up to 500kHz
Transmission voltage and current sampling data to the host at up to 1kHz
Supports master-slave parallel operation, power up to 600kW
■ Load modes CC, CV, CR, CP, CV+CC, CR+CC, CP+CC
Short-circuit simulation, power instantly amplified by a factor of 2
■ Time measurement, (Vpk +/-) measurement function
Multiple protection functions such as OVP, OCP, OPP, OTP, etc.
Voltage sampling remote compensation
Communication Interfaces: RS232, LAN, GPIB, RS485, CAN
■ Features OCP, OPP, LED simulation, load effect, battery internal resistance, and battery discharge test functions
