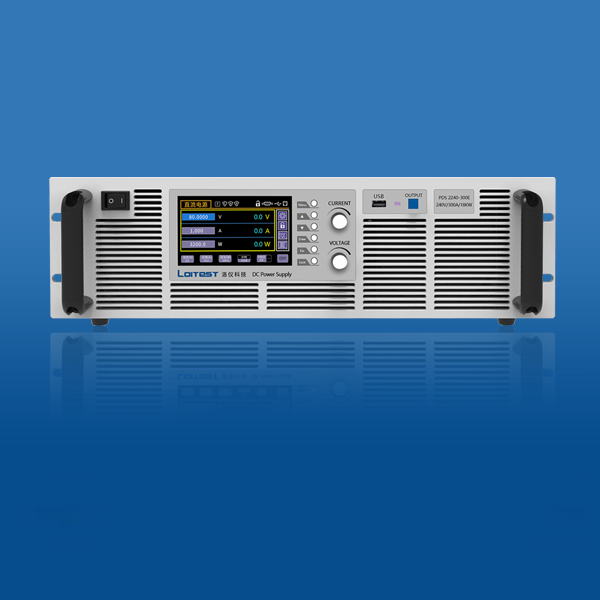

PDS 2000E series wide-range DC power supplies offer power outputs from 6KW to 18KW, with voltage ranging from 80V to 2400V and single-unit currents up to 1000A. Features include high power density, low ripple noise, fast dynamic response, and high reliability for long-term operation.

Key Features:
Input Voltage: AC 380V ± 10%
■ Voltage Range: 0~2400V available
■ Current Range: Selectable from 0~1000A
Voltage Accuracy ≤ 0.02% + 0.02% F.S
Current accuracy ≤ 0.05% + 0.05% F.S
Power Range: 0~18KW available, supports parallel expansion for higher power
Efficiency up to 95%
Automatic range output, flexible power adjustment output stage
High precision/high stability
Panel Programming Function
Master-slave control function
Multiple Protection Functions (OVP, OCP, OPP, OTP)
Built-in control interface, supporting SCPI command language
Communication Interface: RS-232/USB/LAN
Smart temperature-controlled fan cooling, reduced noise
Color display control panel, capable of displaying actual values, set values, status, and alarm information
