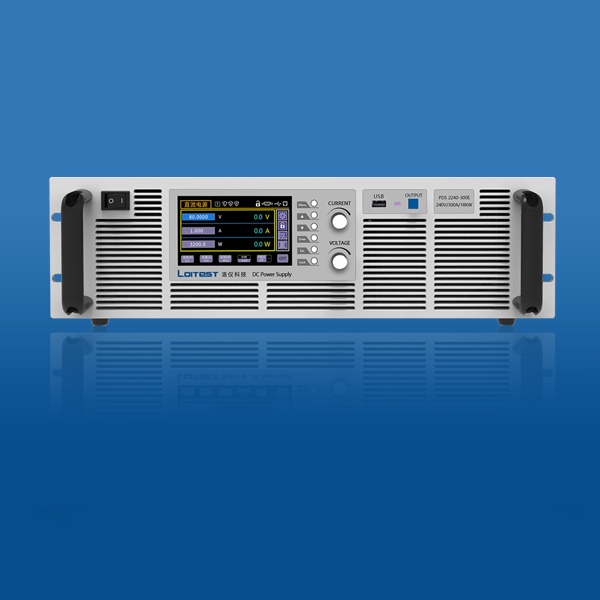

PDS 2000E series wide-range DC power supplies offer power outputs ranging from 6KW to 18KW, with voltage capabilities from 80V to 2400V and individual current up to 1000A. They feature high power density, low ripple noise, fast dynamic response, and high reliability for long-term operation.

Key Features:
Input Voltage: AC 380V ± 10%
Voltage Range: 0~2400V available
■ Current Range: 0~1000A available
Voltage Accuracy ≤ 0.02% + 0.02% F.S
Current accuracy ≤ 0.05% + 0.05% F.S
Power Range: 0~18KW available, supports parallel expansion to higher power
Efficiency up to 95%
■ Automatic range output, flexible power adjustment output stage
High Precision/High Stability
Panel Programming Function
Master-slave control function
Multiple protection functions (OVP, OCP, OPP, OTP)
■ Integrated control interface, supporting SCPI command language
Communication Interface: RS-232/USB/LAN
Intelligent temperature-controlled fan cooling, noise reduction
Color LCD control panel, displaying actual values, set values, status, and alarm information
