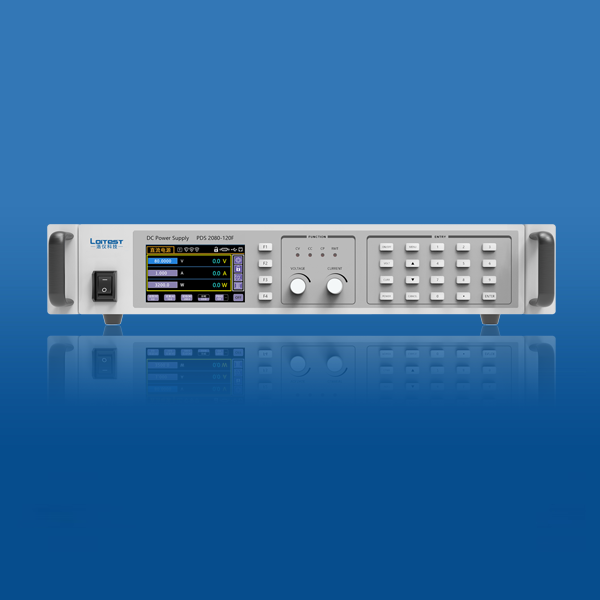

The PDS 2000F series programmable DC power supplies offer power output ranging from 1KW to 3KW, with a voltage range of 40V to 1000V and a single machine current up to 200A. They feature high power density, low ripple noise, fast dynamic response, and high reliability for long-term operation.

Key Features:
Input Voltage: AC 220V ±10%
■ Voltage Range: Selectable from 0-1000V, accuracy ≤0.1%F.S
Current Range: Selectable from 0-200A, Accuracy ≤0.2%F.S
■ Power Range: 0-3KW available, supports parallel expansion for higher power
Efficiency up to 95%
Automatic range output, flexible power adjustment of output stage
Flexible and powerful sequence testing function
■ Lead Drop Compensation Terminal
High precision/high stability
Master-slave control function
Communication Interface: Standard RS-232/USB
Supports CV, CC, CP modes
■ Reverse pressure protection at the output end
Smart temperature-controlled fan cooling, reduced noise
Integrated control interface, supports SCPI command language
Supports OVP/OCP/OPP/OTP protection and reverse polarity protection for SENSE terminals
