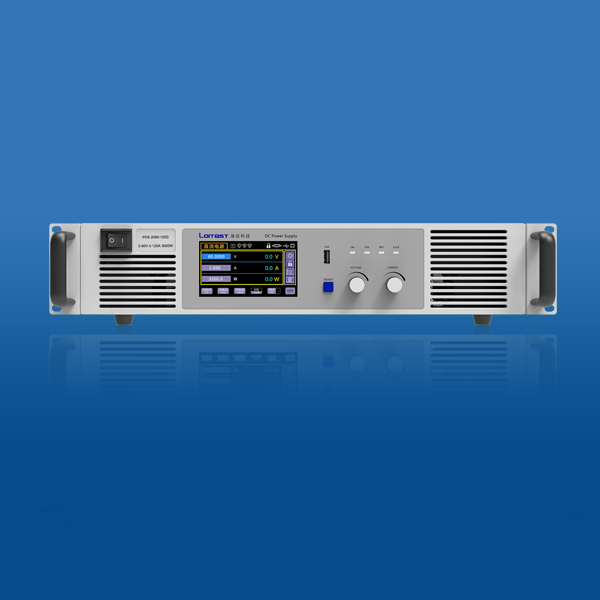

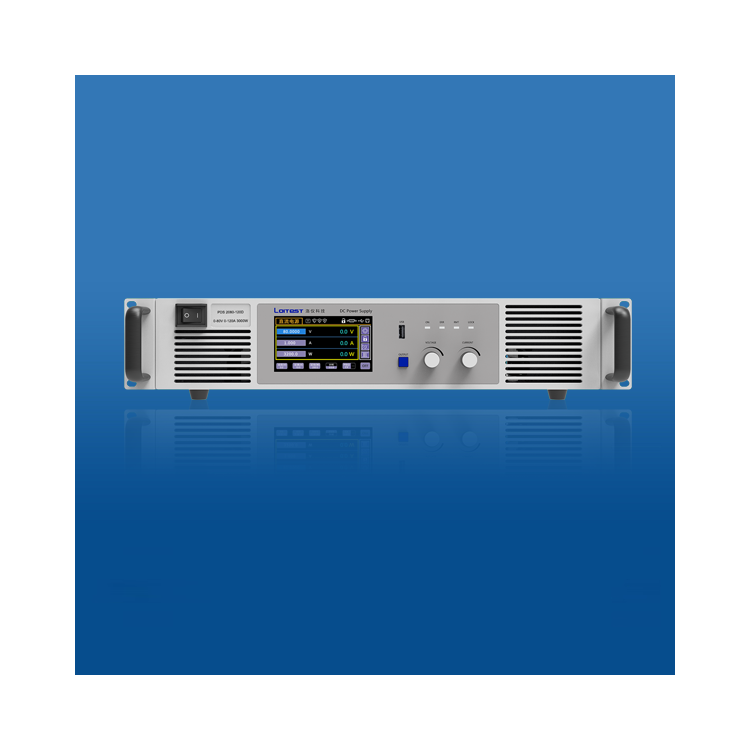

PDS 2000D series wide-range DC power supplies offer power outputs from 1KW to 6KW, with voltage ranges from 40V to 1000V and a single-unit current up to 200A. They feature high power density, low ripple noise, fast dynamic response, and high reliability for long-term operation.
Key Features:
Input Voltage: 180V~270VAC
Voltage Range: Selectable from 0 to 1000V
Current Range: 0~200A optional
Voltage Accuracy ≤ 0.1% F.S
Current Accuracy ≤ 0.1% + 0.1% F.S
Efficiency up to 93%
Power Range: 0~6KW available, supports parallel expansion to higher power
Automatic range output, flexible power adjustment for the output stage
High Precision/High Stability
Panel Programming Features
Master-slave control function
Multiple Protection Functions (OVP, OCP, OPP, OTP)
■ Built-in control interface, supporting SCPI command language
■ Communication Interface: RS-232/USB/LAN
Smart temperature-controlled fan cooling, noise reduction
Color screen control panel, displaying actual values, set values, status, and alarm information
Product Dimensions
