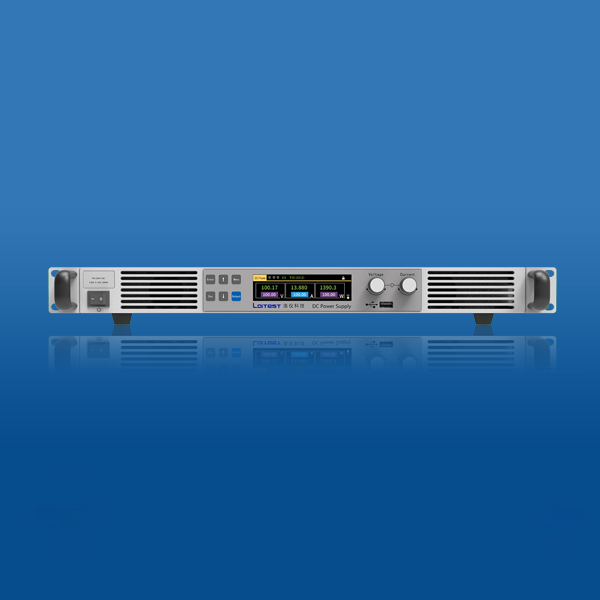

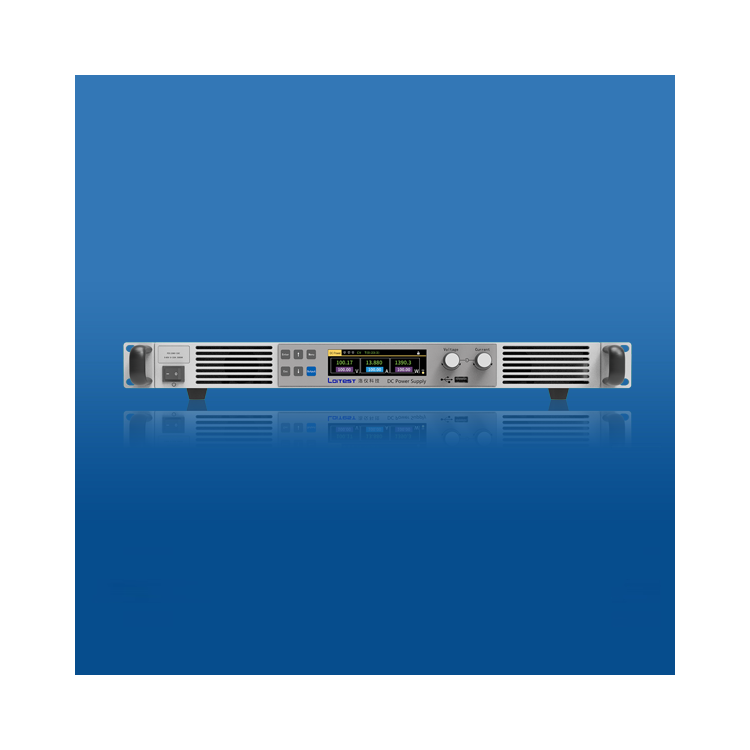

PDS 2000C series wide-range DC power supplies offer power outputs from 1KW to 3KW, with voltage ranges up to 40V to 1000V and individual machine currents up to 120A. They feature high power density, low ripple noise, fast dynamic response, and high reliability for long-term operation.

Key Features:
Input Voltage: 180V~270VAC
Voltage Range: Selectable from 0~1000V
■ Current Range: 0~120A available
Voltage Accuracy ≤ 0.1% F.S
Current Accuracy ≤ 0.1% + 0.1% F.S
Power Range: 0~3KW available, supports parallel expansion to higher power
Efficiency up to 95%
■ Automatic range output, flexible power adjustment for output stage
High precision/high stability
Panel Programming Function
Master-slave control function
Multiple Protection Functions (OVP, OCP, OTP, OPP)
■ Integrated control interface, supporting SCPI command language
Communication Interface: RS-232/USB/LAN
Smart temperature-controlled fan cooling, noise reduction
Color display control panel, capable of displaying actual values, set values, status, and alarm information

Product Dimensions
