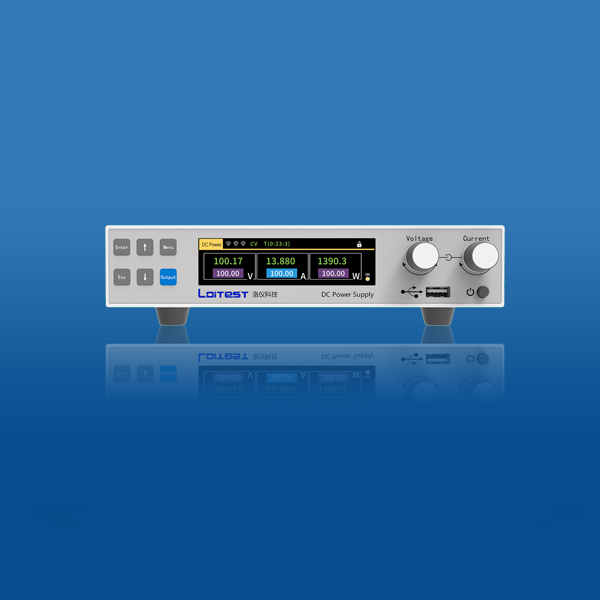

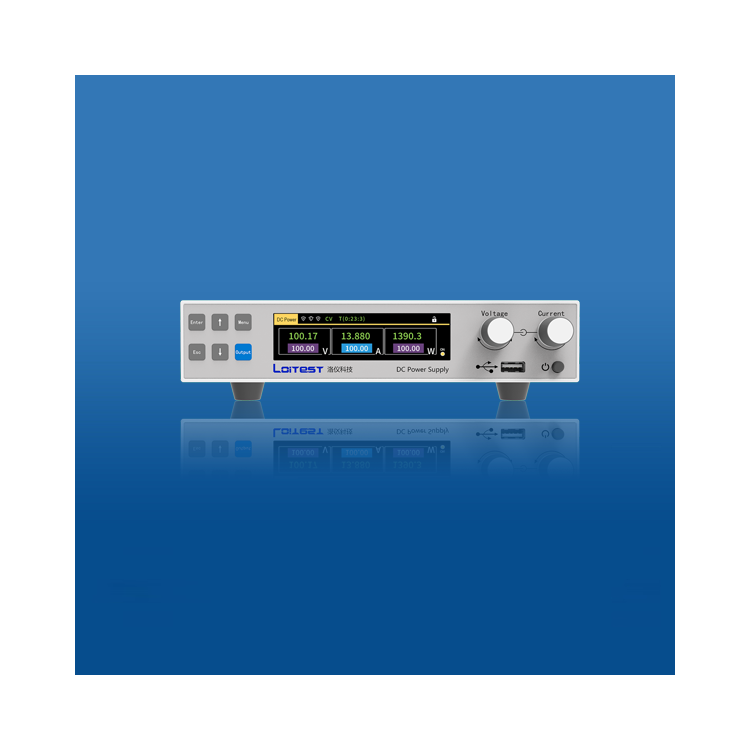

PDS 3000C Series High-Precision DC Power Supplies offer power output ranging from 1000W to 1500W, with voltage from 60V to 1000V and a maximum current of up to 50A. They feature high power density, low ripple noise, fast dynamic response, and high reliability for long-term operation.

Key Features:
Input Voltage: 180V~270VAC
Voltage Range: 0~1000V可选
■ Current Range: 0~50A available
Voltage Accuracy ≤ 0.1% F.S
Current Accuracy ≤ 0.1% + 0.1% F.S
■ Power Range: 0~1500W available, supports parallel expansion for higher power
High precision and high stability
■ Volume just 1/2 of 1U, single unit power up to 1500W
Low noise, low ripple
Smart temperature-controlled fan cooling, noise reduction
Combining rotary switches with push buttons for user convenience.
Overvoltage and overcurrent protection features
Integrated control interface, supporting SCPI command language
Color screen control panel, displaying actual values, set values, status, and alarm information
Multiple protection functions (OVP, OCP, OTP, OPP)
Communication Interface: RS-232/USB/LAN

Product Dimensions
