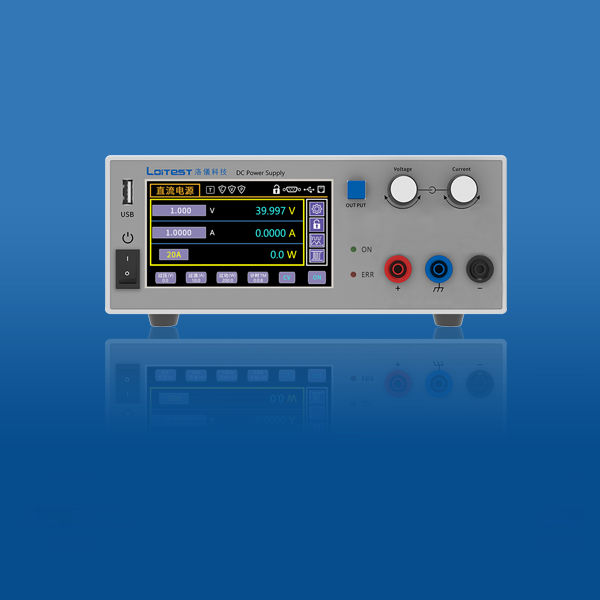

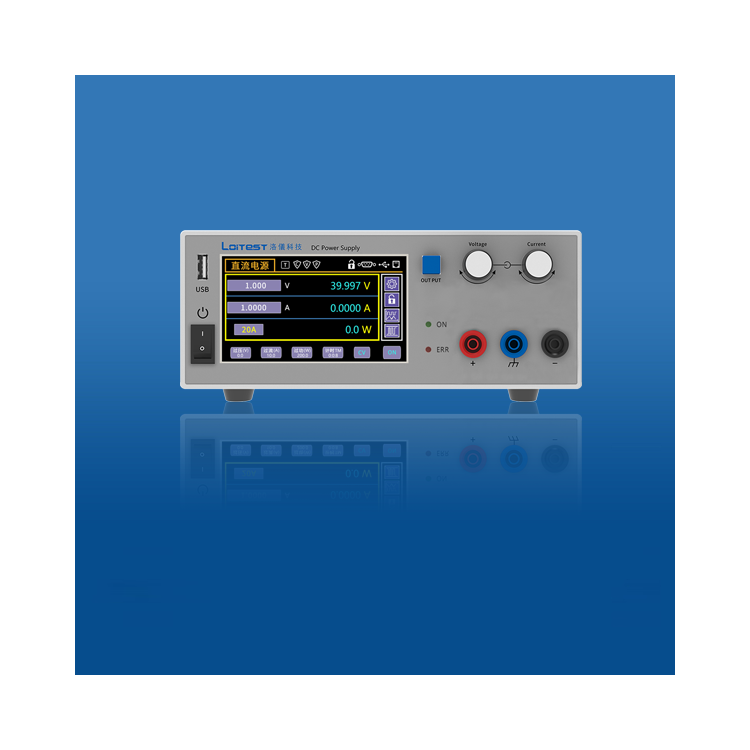

PDS 3000S series high-precision DC power supplies offer power output ranging from 160W to 320W, with a voltage range of 30V to 80V and a maximum current of up to 10A. The actual precision reaches 1mV and 1mA. Features include high power density, low ripple noise, fast dynamic response, and high reliability for long-term operation.
Key Features:
Input Voltage: 180V~270VAC
■ Voltage Range: Selectable from 0~80V
Current Range: 0~10A Optional
■ Voltage Accuracy: 0.02% F.S + 3mV
Current Accuracy: 0.05% F.S + 2mA
■ Power Range: 0~320W available
High precision and high stability
Supports various voltage and current combinations
Low noise, low ripple
Touchscreen operation, easy and quick to use
Save and Retrieve Function
Overvoltage and overcurrent protection features
■ Integrated control interface, supporting SCPI command language
Smart fan control effectively reduces noise
■ Blue screen monitor displaying all values and statuses
Communication Interface: RS-232/USB
Product Dimensions
