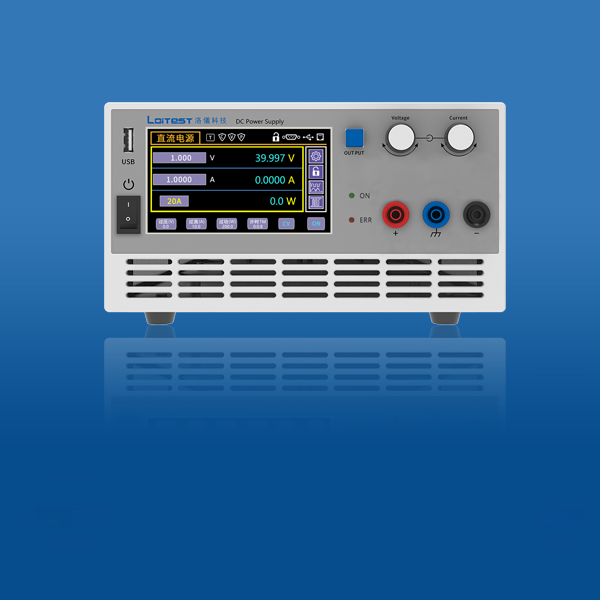

The PDS 3000P series high-precision DC power supplies are controlled by programming software to output different power levels, simplifying the operational process. They are suitable for the requirements of DC sources in batch complex testing environments. The output power of this power supply can be flexibly adjusted, up to a maximum of 2400W. Priority settings for constant voltage CV and constant current CC modes are available. The power supply features a 19" standard rack design, facilitating integration into remote-controlled laboratory applications and testing systems, catering to the various needs of different customers.

Key Features:
High precision, low ripple output
Voltage Range: Selectable from 0~150V
■ Current Range: 0~80A available
■ Power Range: 300W to 2400W available
Voltage resolution up to 0.1mV
Current resolution up to 0.1mA
■ Constant Voltage and Constant Current Output
■ Overload protection equipped
Control panel with button and blue display
■ Display actual and set values, status and alarms simultaneously
Temperature-controlled fan cooling, noise reduction
Remote sensing function
Communication Interface: RS232/Rs485
Multiple Protection Functions (OVP, OCP, OPP, OTP)
