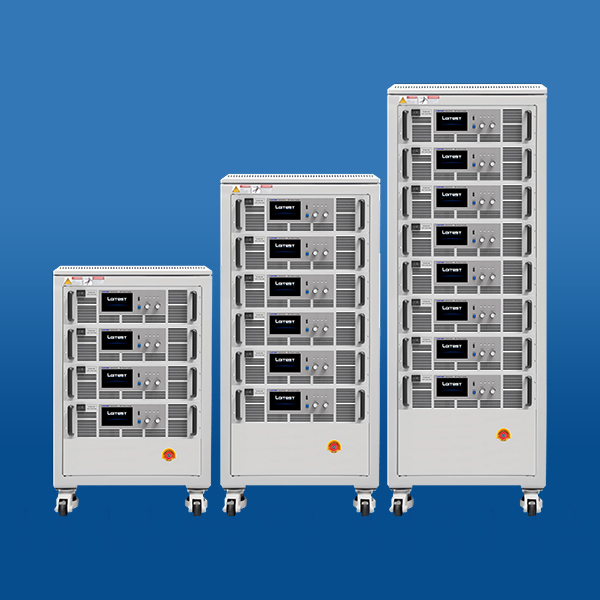

The PEL 1000E/XU series DC electronic loads are high-power programmable DC electronic load systems integrated into 19" rackmount or enclosed cabinets. This system is composed of programmable DC electronic load modules, featuring high power density that allows for easy parallel connection to an output power of up to 600KW, with voltage up to 1200VDC and current up to 2400ADC. Its modular design and standardized load and protection modules make it economically and flexibly adaptable to various user requirements.

Key Features:
Voltage Range: Selectable from 0~1200V
■ Current Range: 0~2400A可选
Voltage Accuracy ≤ 0.05% F.S
Current Accuracy ≤ 0.1% F.S
■ The parallel power of multi-machines can be expanded up to a maximum of 600KW
Data sampling rate up to 1kHz, enabling voltage and current data and curve analysis
Programming speed: 50 kHz, Sampling speed: 500 kHz
Instant over-power loading function, with the ability to handle instantaneous overload exceeding twice the rated power.
High precision/high stability
Master-slave control function
Comprehensive protection features: Overvoltage, overcurrent, overtemperature, current limiting, power limiting, reverse polarity, power-off memory, etc.
Multiple operating modes: CC, CV, CR, CP, CRD, CPD, CV+CC, CR+CC, CP+CC, etc.
Load effect, OCP, OPP, LED simulation, ESR, battery discharge, and various other testing functions
Standard RS-232/RS-485/LAN/USB
Color screen control panel, displaying actual values, set values, status, and alarm information
