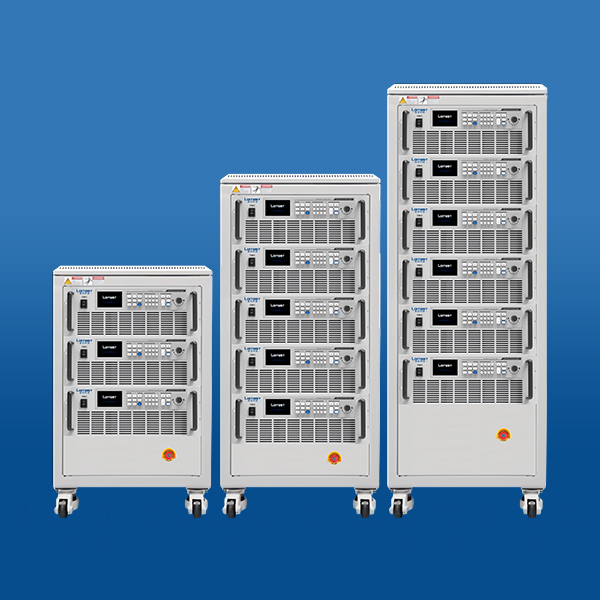

The PEL 1000E/XU series DC electronic loads are high-power programmable DC electronic load systems integrated into 19" rackmount or enclosed cabinets. Comprised of programmable DC electronic load modules, these high-power density products can easily be paralleled to achieve output power up to 600KW, with voltage up to 1200VDC and current up to 2400ADC. Their modular design and standardized load and protection modules allow for an economical and flexible adaptation to a variety of user requirements.

Key Features:
■ Voltage Range: Selectable from 0~1200V
■ Current Range: 0~2400A available
Voltage Accuracy ≤ 0.05% F.S
Current Accuracy ≤ 0.1% F.S
Multiple machine parallel power can be expanded up to a maximum of 600KW
Data sampling rate up to 1kHz, enabling voltage and current data and curve analysis
Programming speed: 50 kHz, sampling speed: 500 kHz
Instant overload capability exceeding twice the rated power with instantaneous overpower loading function.
High precision/high stability
Master-slave control function
■ Comprehensive protection functions: Overvoltage, overcurrent, overtemperature, current limiting, power limiting, reverse polarity protection, power-off memory, etc.
Multiple operation modes: CC, CV, CR, CP, CRD, CPD, CV+CC, CR+CC, CP+CC, etc.
Load effect, OCP, OPP, LED simulation, ESR, battery discharge, and various other testing functions
Standard RS-232/RS-485/LAN/USB
Color screen control panel, displaying actual values, set values, status, and alarm information
