An emptying riser is a device commonly used in industrial production for fluid handling and transmission. It typically consists of a vertical pipe and a set of transverse vanes perpendicular to the riser, which mix, filter, and transport fluids through the flow of gas or liquid. This article will provide a detailed introduction to the principles, structure, applications, and advantages and disadvantages of the emptying riser to help readers better understand and utilize this equipment.
Principle of Emptying Straight Pipe
The working principle of the venting riser is based on two important physical principles: inertia separation and centrifugal force. When fluid enters the venting riser, due to the mass of the fluid and the effect of inertia force, the particles in the fluid are subjected to inertia separation, with larger particles settling at the bottom of the riser, and smaller particles being pulled towards the lateral vanes under the influence of centrifugal force. This allows for effective separation of particles from the fluid, thereby achieving mixing, filtration, and conveying purposes.
Section 2: Structure of Empty Pipe Stands

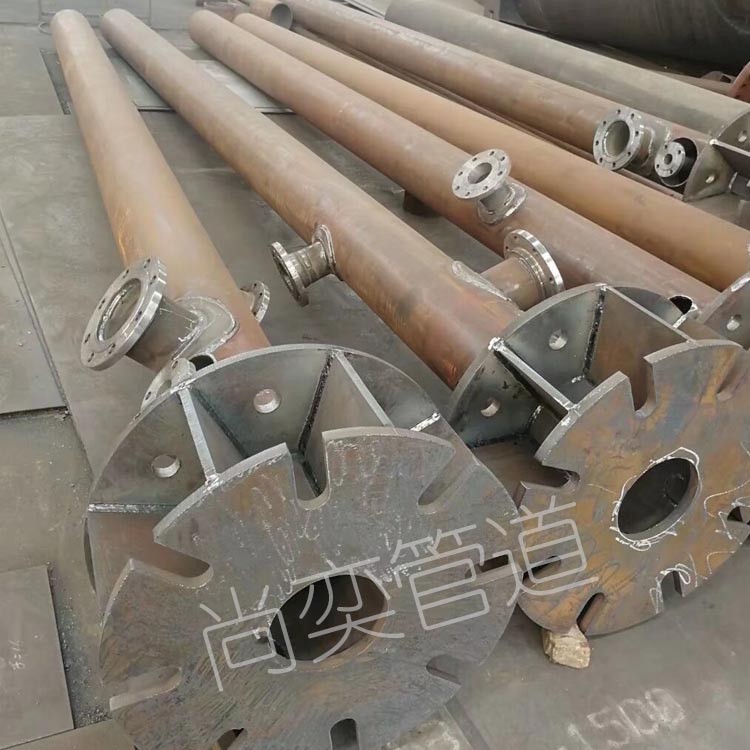

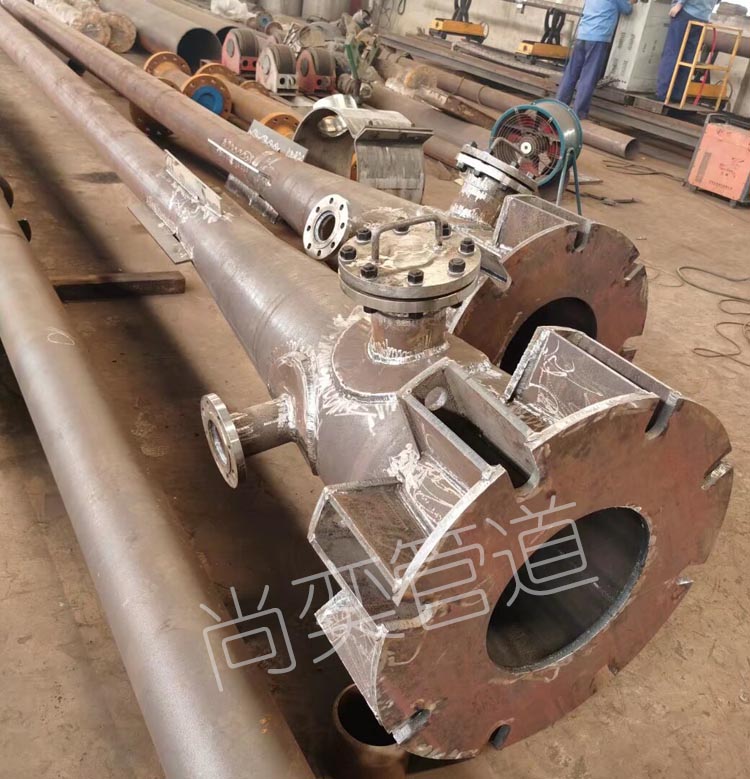

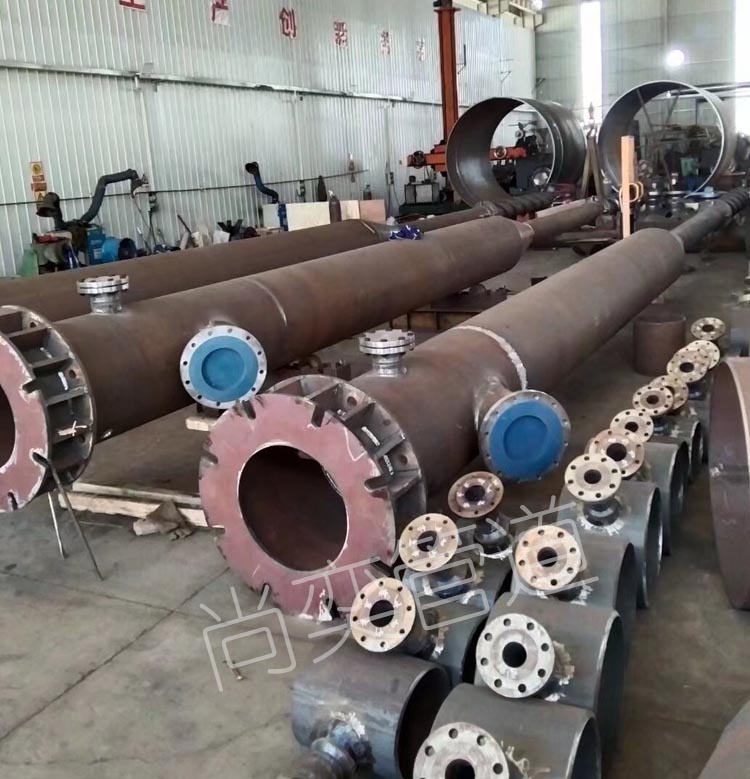

The venting standpipe typically consists of a vertical tube, lateral vanes, an inlet, and an outlet. The vertical tube serves as the main body of the venting standpipe, responsible for conveying and filtering fluids. The lateral vanes are installed in a transverse position within the vertical tube, primarily for controlling fluid flow and separating particles. The inlet and outlet are used to introduce and exhaust fluids from the venting standpipe. Additionally, the venting standpipe can be equipped with other accessories as needed for different applications, such as cyclones, flowmeters, and pressure gauges.
Section 3: Application of Open Spool Pipe
The blanking riser is widely used in various fluid processing and transmission fields, such as chemicals, food, pharmaceuticals, and environmental protection. Specific applications include:
1. Chemical Industry: Used for mixing reactions, precipitation filtration, solvent separation, etc.
2. Food Industry: Used for concentrated fruit juices, clarified beverage alcohol, protein extraction, etc.
3. Pharmaceutical Industry: Used for concentration, separation, and filtration of medicines.
4. Environmental Protection Industry: Used for treating wastewater and waste gases.
In addition, venting risers can also be used in specialized fields such as oil and textiles.
