Composite insulators consist of three parts: an insulating core rod, a silicon rod with a rubber sheath, and the connecting hardware at both ends.

Insulating core rods, also known as epoxy glass fiber drawn rods, serve as the skeletal structure for composite insulators. They support the hood, internal insulation, and connect the two terminal hardware, while also withstanding mechanical loads. They possess high tensile strength, typically exceeding 600 MPa, which is twice that of ordinary steel and 5 to 8 times that of porcelain. They also exhibit excellent dielectric properties and resistance to chemical erosion, as well as good resistance to bending fatigue, creep, and impact. Silicone rubber hoods primarily protect the core rod, shield against rain and snow, increase the creepage distance, and enhance the external insulation of the product. They are made from high polymer silicone rubber, reinforced with flame retardants, anti-aging agents, coupling agents, and other fillers, cured under high temperature and pressure. They have good hydrophobicity and migration properties, as well as excellent resistance to corrosion, aging, and electrical insulation. Moreover, they offer high flashover voltages and resistance to breakage, with a uniform voltage distribution. Compared to porcelain, their flashover voltage under the same conditions is more than twice that of porcelain.

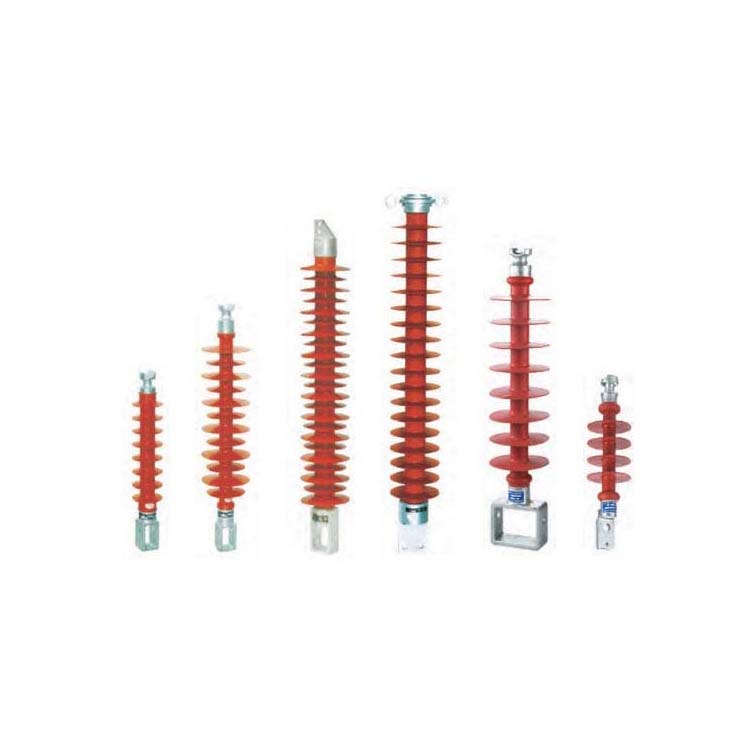

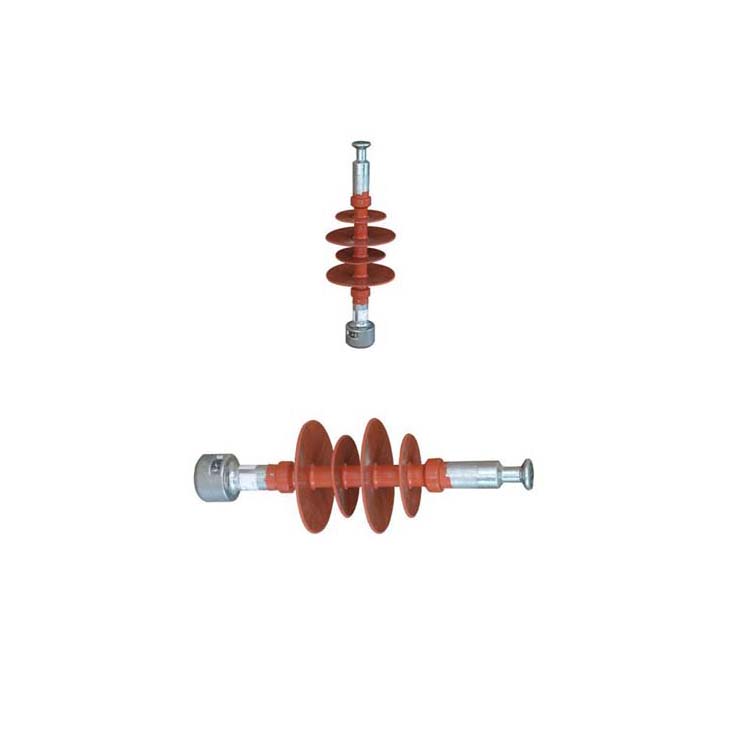

Composite Insulator Product Types

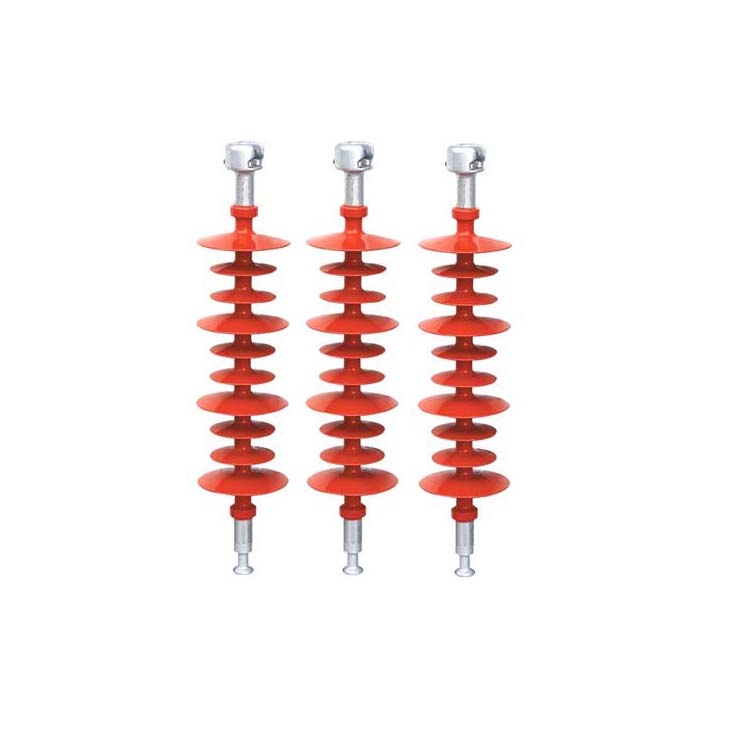

FXBW-----Rod-type Suspended Composite Insulator

FPQ-----Composite针式绝缘子

FZSW - Composite Pole Insulator

FS - Composite Cross Arm Insulator

FCGW——Composite Dry Through-Wall Sleeve

FQE(X) --- Composite Insulator for Electrified Railway Tracks

FQJ - Composite Insulator for Electrically Traction Vehicles Roof

Terms of Use

Operating Temperature: -40℃ to +40℃; Altitude: Not exceeding 1500 meters

Supply voltage frequency not exceeding 100HZ,大风速 not exceeding 35m/s

Earthquake intensity does not exceed 8.0.

Product Performance Features

Compact and lightweight, approximately 1/5 to 1/9 the volume and weight of similar voltage porcelain insulators, easy for transportation and installation.

Composite insulators offer high mechanical strength, reliable structure, stable performance, and large safety margin for safe operation, ensuring the integrity of the lines and safe operation.

The composite insulator boasts excellent electrical properties, with silicone rubber sheds offering good hydrophobicity and migration resistance. It has superior anti-pollution performance and strong resistance to flashover, ensuring safe operation in heavily polluted areas without the need for manual cleaning and maintenance.

Composite insulators feature resistance to acids and alkalis, heat aging, and electrical breakdown, excellent sealing properties, and ensure the internal insulation remains dry.

The composite insulator exhibits excellent resistance to brittleness, strong vibration resistance, and will not suffer brittle fractures.

The composite insulator is interchangeable and can be used in place of porcelain insulators and others.
