Composite needle-shaped insulators offer superior resistance to bending, impact, vibration, and explosion. The internal insulation is reliable and lightweight, making them an ideal replacement for traditional electrical porcelain.

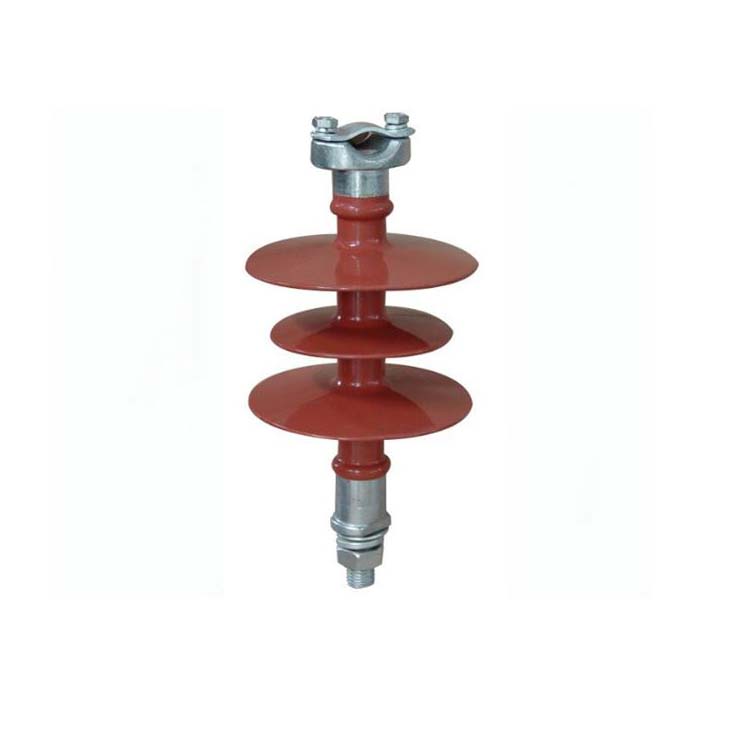

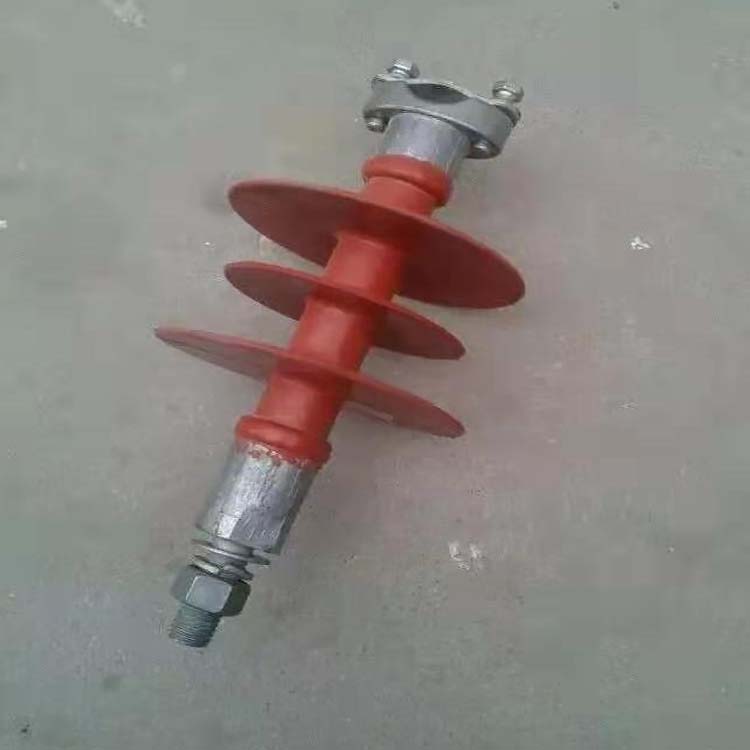

Product Description: FPQ4-10/3T20

◆ F stands for composite; P for needle type; Q for anti-soiling.

◆4 represents the anti-fouling grade

◆ Rated Voltage (kV) / Rated Bending Load (kN)

◆ T-steel cross arm; L-glass fiber cross arm; M-wood cross arm

◆ <20> Steel Foot Diameter (mm)

◆Color: Omitted to Deep Red; H-Grey; G-Green;

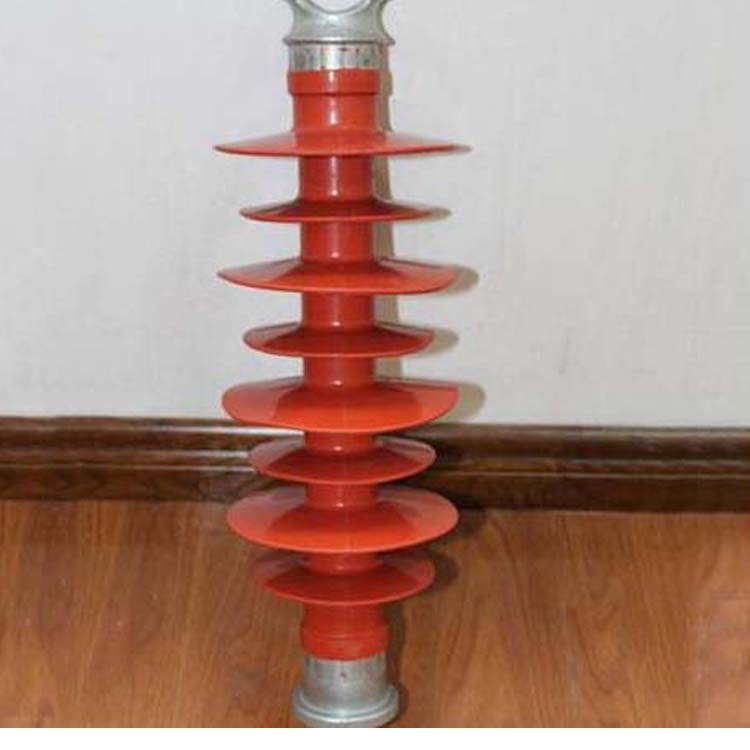

Composite Insulator Product Types

FXBW -- Rod-Type Suspended Insulator

FPQ - Composite针式绝缘子

FZSW - Composite Pole Insulator

FS——Composite Cross Arm Insulator

FCGW - Composite Drywall Through-Wall Pipe

FQE(X) -- Composite Insulator for Electrified Railways

FQJ - Top Composite Insulator for Electrified Road Vehicles

Terms of Use:

· Environmental Temperature: -40°C to +40°C

· AC power frequency does not exceed 100 Hz

· Earthquake intensity does not exceed 8 on the Richter scale

· Altitude not exceeding 1,500 meters

·Wind speed not exceeding 35 m/s
