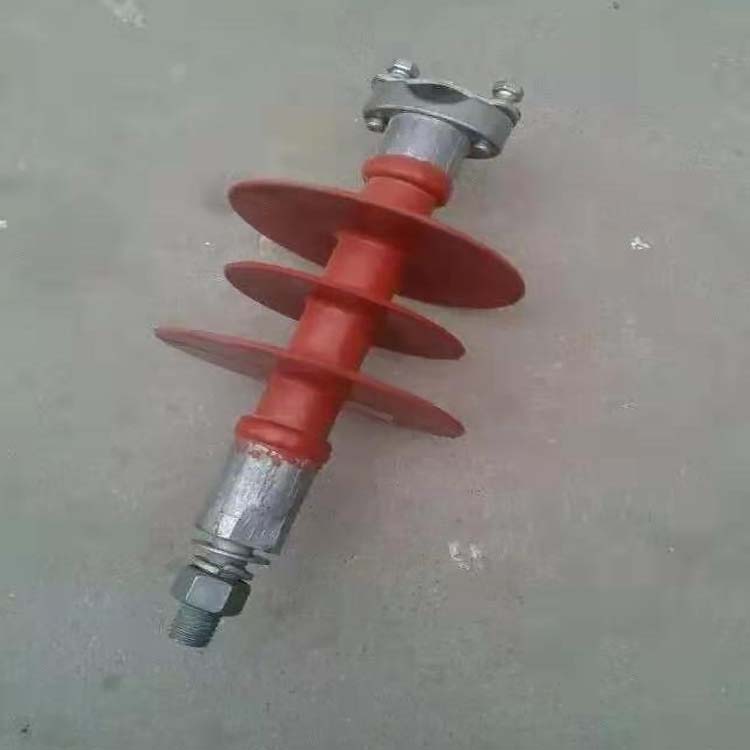

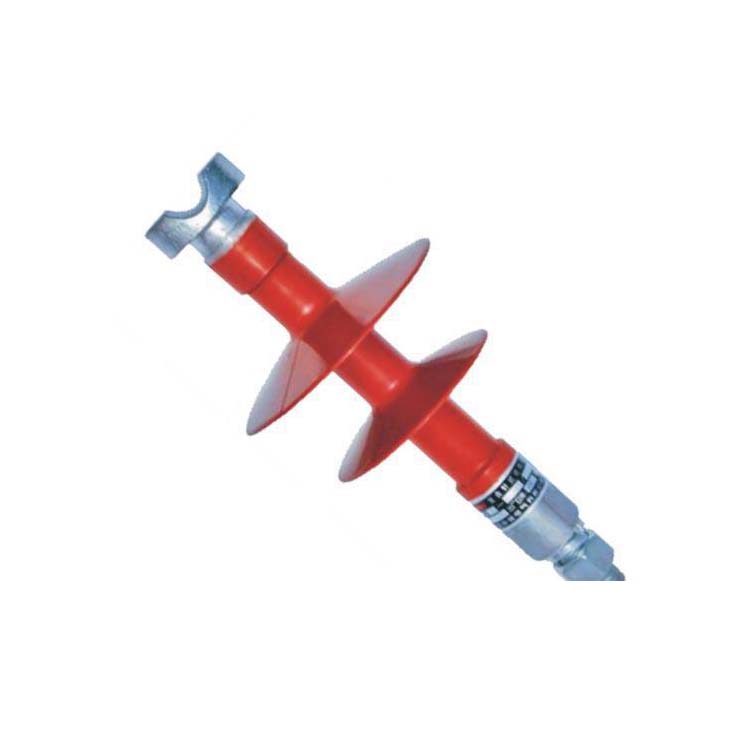

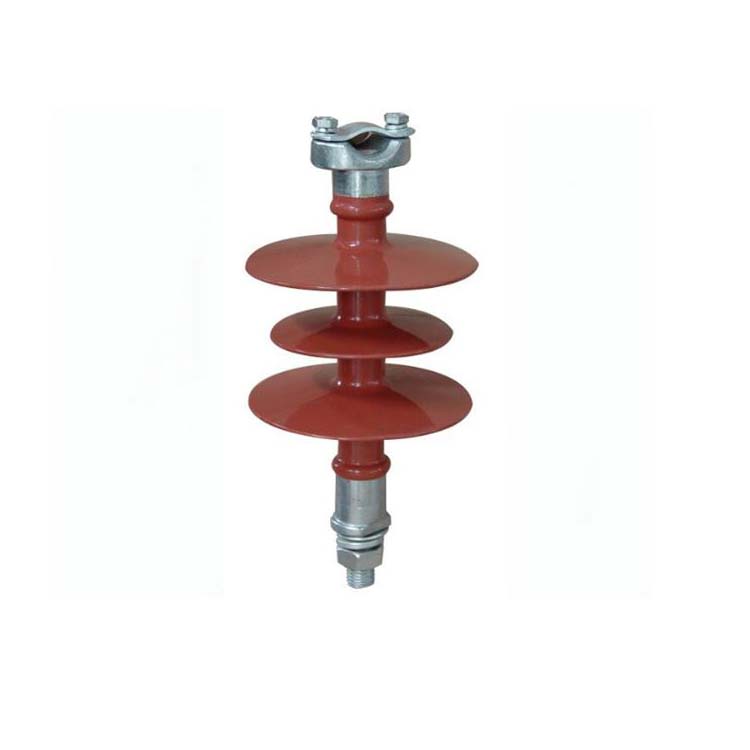

Composite needle insulators offer superior resistance to bending, impact, vibration, and possess excellent explosion-proof properties. The internal insulation is reliable and lightweight, making them the ideal replacement for traditional electrical porcelain.

Product Description: FPQ4-10/3T20

◆ F stands for composite; P stands for needle type; Q stands for anti-soiling.

◆4 represents the anti-pollution grade

◆ Rated Voltage (kV) / Rated Bending Load (kN)

◆ T-bar; L-glass fiber cross arm; M-wood cross arm

◆ <20> Steel Foot Diameter (mm)

◆Color: Omitted as Dark Red; H-Grey; G-Green;

Composite Insulator Product Types

FXBW - Rod-type Suspended Insulator

FPQ - Composite针式绝缘子

FZSW - Composite Pole Insulator

FS——Composite Cross Arm Insulator

FCGW - Composite Dry Through-Wall Pipe

FQE(X) -- Composite Insulator for Electrified Railways

FQJ - Composite Insulator for Electrically Conductive Road Vehicle Rooftop

Terms of Use:

· Environmental Temperature -40°C ~ +40°C

· AC power frequency does not exceed 100 Hz

· Earthquake intensity does not exceed 8 on the Richter scale

· Altitude not exceeding 1,500 meters

·Wind speed not exceeding 35 m/s
