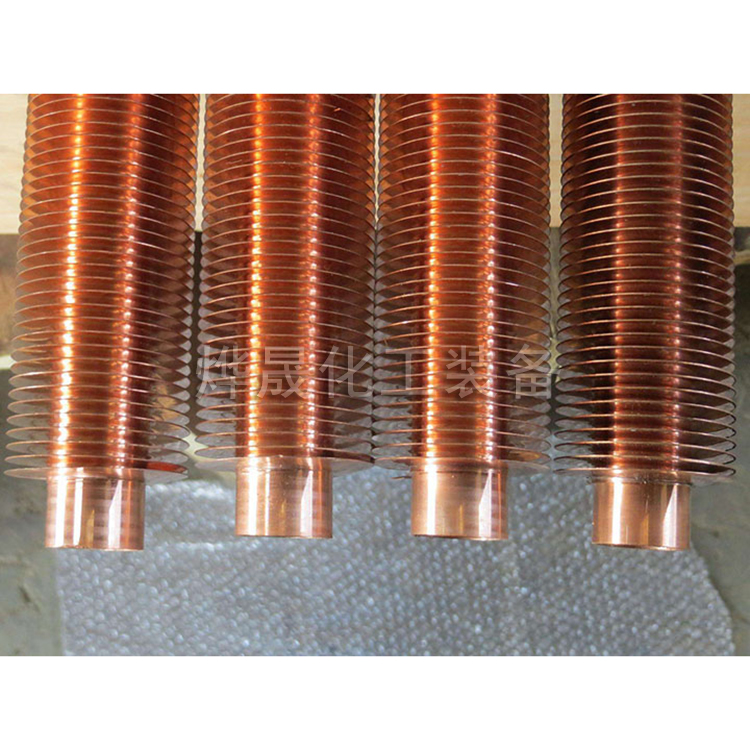

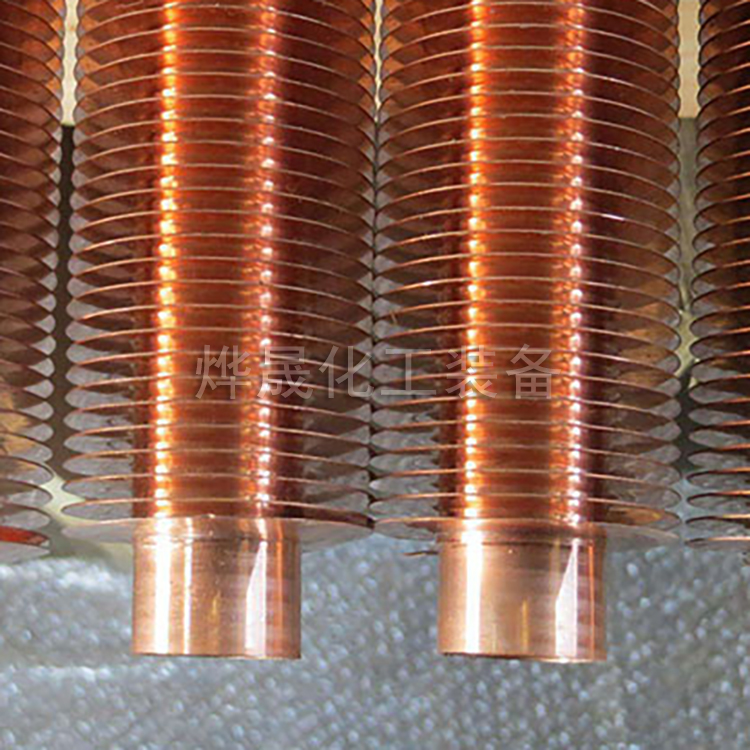

Copper finned tube

Finned Tube Overview
Finned tubes are designed to enhance heat exchange efficiency by increasing the surface area (either external or internal) of the heat exchange tubes through the addition of fins. This type of heat exchange tube is used as a heat exchange element that operates under harsh conditions of high-temperature烟气, such as in boiler heat exchangers where the environment is severe, with high temperatures, pressures, and corrosive atmospheres. This necessitates that finned tubes have high performance specifications.
1. Corrosion resistance
2. Abrasion resistance
3. Low contact thermal resistance
4. High stability
5. Dust-Resistant Ability

Finned tube classification
Finned tubes come in a variety of types and new varieties are continually emerging. Finned tubes can generally be categorized into several application aspects as follows:
1. Coiled Strip Tubing (Strip Coiled Tubing) 2. Tension Wound Finned Tubing 3. Inserted Fin Tubing 4. Seamless Rolled Finned Tubing 5. Cast Finned Tubing 6. Welded Finned Tubing, which includes: High Frequency Welded Finned Tubing, Submerged Arc Welded Finned Tubing, etc.
Categorized by fin shape: 1. Square, rectangular, and circular finned tubes; 2. Spiral finned tubes; 3. Wavy finned tubes; 4. Toothed finned tubes; 5. Needle finned tubes; 6. Vertical finned tubes; 7. Solid plate finned tubes (plate fin) and more.
Categorized by material: 1. Copper, Aluminum, Copper/Aluminum finned tubes; 2. Carbon steel, Stainless steel, Carbon steel/Stainless steel finned tubes; 3. Cast iron (cast steel) finned tubes, etc.
Categorized by application: Air conditioning finned tubes; Air-cooled finned tubes; Boiler finned tubes for water walls, economizers, and air preheaters; Finned tubes for various kilns and industrial furnaces for waste heat recovery; and other special-purpose finned tubes, etc.

Finned tube advantages
1. High Efficiency and Energy Saving: With a heat exchange coefficient of 3000-4500 kcal/m²·°C·h, it boasts a thermal efficiency 3-5 times higher than that of shell-and-tube heat exchangers.
2. Compact Structure: The plate-type heat exchanger features closely packed plates, occupying less floor space and overall volume compared to other types of heat exchangers. A plate-type heat exchanger with the same heat transfer capacity as a shell-and-tube exchanger requires only 1/5 of the area.
3. Easy to clean and dismantle: The plate heat exchanger clamps the plate pack tightly with clamping bolts, making it convenient to dismantle and clean at any time. Additionally, due to the smooth surface and high turbulence, it is less prone to scaling.
4. Long Service Life: Plate heat exchangers are made of stainless steel or titanium alloy plates, capable of withstanding various corrosive media. Gaskets are replaceable and can be easily assembled, disassembled, and inspected.
5. Versatile: Plate heat exchanger plates are individual components, allowing for flow additions or reductions as required, with diverse configurations; suitable for various different process demands.
6. Non-intermixing design; the plate heat exchanger features a sealed groove with a liquid drainage channel, ensuring that different media do not intermingle. In the event of a leak, the medium is always discharged outward.
